Allen-Bradley 1766-L32AWA MicroLogix 32-point

Name: Allen-Bradley 1766-L32AWA MicroLogix
Brand: Allen-Bradley
SKU: 1766-L32AWA
Price: 1599.99 USD
Availability: InStock

In stock: 1 unit in Milwaukee, WI. Physically stocked and ready to ship or available for local pickup. Includes a 1-year full-function warranty.

MicroLogix 1400 controller · 20 × 120V AC inputs · 12 relay outputs · 120/240V AC powered · embedded EtherNet/IP

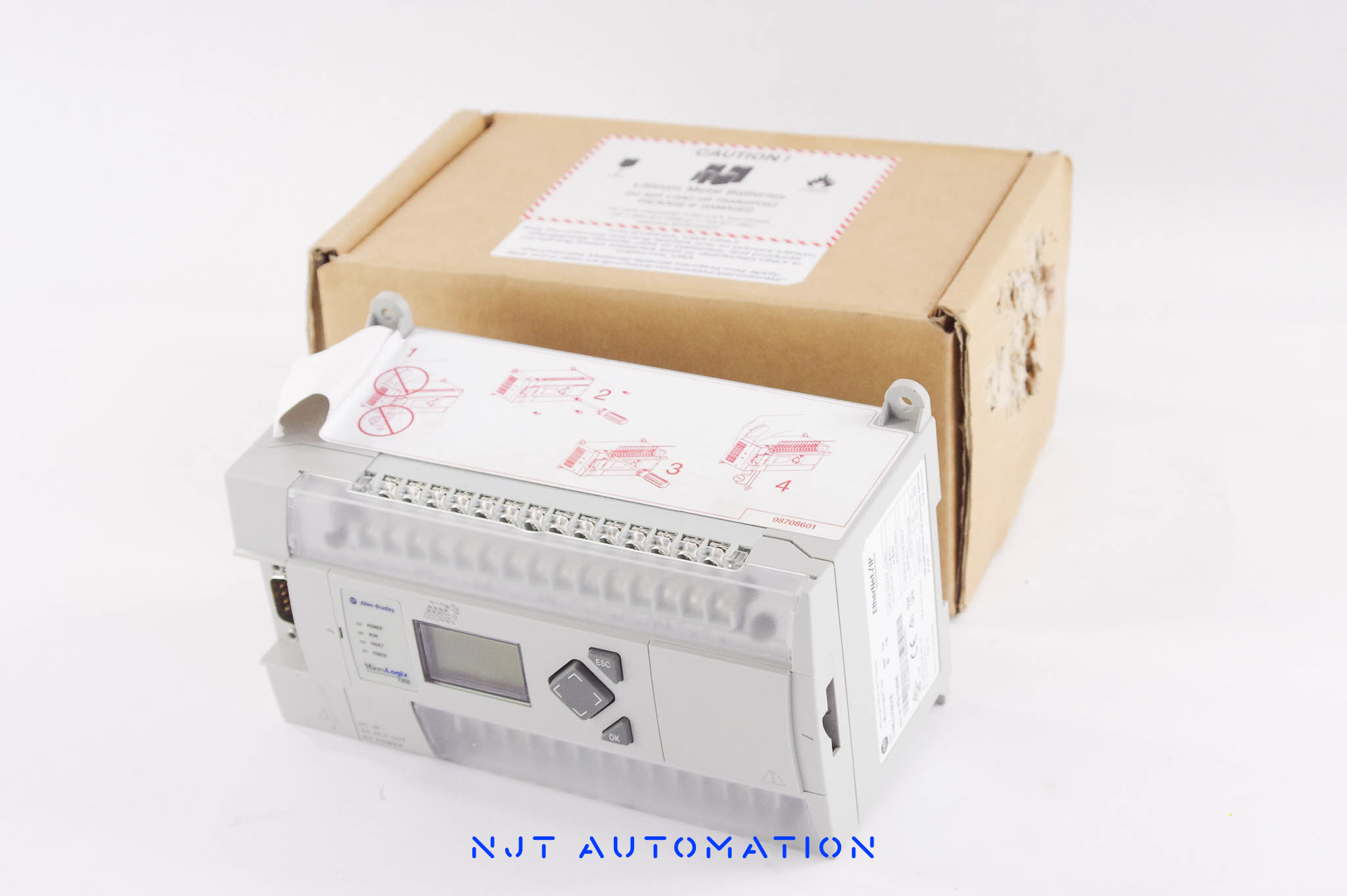

Allen-Bradley 1766-L32AWA MicroLogix 1400 controller, 32-point, 120/240V AC – front view

Actual NJT inventory photos

Price

$1,599.99USD

Unused surplus units available

Request Repair Quote

Part Number	1766-L32AWA
Description	MicroLogix 1400 controller, 32-point, 120/240V AC. In stock in unused surplus condition, Series C.
Shipping	Ships same or next business day UPS Ground included \| Next-Day Air and Worldwide Shipping available at checkout
Pickup	Free local pickup at 2122 N Prospect Ave. Call ahead at (414) 331-5954.
Warranty	1-year full-function warranty provided by NJT Automation. Warranty details Included 1 year, full-function 2 years +15% of product price ($240.00) 3 years +25% of product price ($400.00) View full warranty policy
Returns	90-day free returns. View return policy
Exchange	Send us your defective 1766-L32AWA after your purchase for a 10% core credit ($160). We also purchase old or damaged parts outright.

Replacement Options for 1766-L32AWA

Pick a condition and series below. UPS Ground shipping included.

Allen-Bradley 1766-L32AWA New surplus (sealed) - Buy 1766-L32AWA replacement | NJT Automation

Allen-Bradley 1766-L32AWA New surplus (sealed) - alternate view

Allen Bradley 1766-L32AWA /C MicroLogix 1400 32-Pt 2025 - Sealed Surplus

$1,599.99 USDIn-stock match

Condition: New surplus (sealed)

Series C

1 in stockView details

Variants

Part NumberConditionSeriesQtyPrice

1766-L32AWA /C$1,599.99

New surplus (sealed) · Series C · 1 in stock

1766-L32AWA /CNew surplus (sealed)Series C1$1,599.99 USD

1766-L32AWA

Refurbished — pick series, then request a quote

Series neededRequest Quote

1766-L32AWARefurbishedSeries needed—Request Quote

Availability

Similar Match Available

A similar unit is in stock and ready to ship once you confirm the condition you need.

Repairs

1766-L32AWA Mail-In Repair Service

Part Number Decoder

MicroLogix 1400 controller

1766L32AWA

MicroLogix 1400 controller, 20 × 120V AC inputs, 12 relay outputs, 120/240V AC powered, embedded EtherNet/IP, two serial ports and LCD.

1766: BulletinMicroLogix 1400: micro PLC with 20 KB memory (10 KB program + 10 KB data), embedded 10/100 EtherNet/IP, two serial ports (RS-232 and isolated RS-232/485), built-in LCD, up to 7 × 1762 expansion modules and 100 kHz high-speed counters.
L32: I/O count32-point controller: 20 discrete inputs and 12 discrete outputs built in.
A: Input type120V AC discrete inputs.
W: Output typeRelay discrete outputs.
A: Power120/240V AC controller power supply.

Decoded from the Rockwell Automation catalog-number structure. Series and firmware revision are printed on the product label, not encoded here.

Series & Revisions

Series C in stock; other series on request.

Series notes: A later series runs the existing program after the processor type is changed in RSLogix 500. An earlier series may not if the program uses features from a newer OS/FRN.

Intended Use

Built for small standalone machine and remote-site control applications. MicroLogix 1400 controllers run pump stations, lift stations, small packaging and OEM machines and remote telemetry panels, with built-in Ethernet, serial ports, a front LCD and data logging in a brick-style unit expandable with 1762 I/O.

Physical Data

Weight and DimensionsWeight1.98 lb (0.90 kg)H × W × D3.5 × 7.1 × 3.4 in. (90 × 180 × 87 mm)

Weight	0.90 kg (1.98 lb) Typical unit weight
Dimensions (H × W × D)	90 × 180 × 87 mm (3.5 × 7.1 × 3.4 in.) MicroLogix 1400 controller
Shipping Weight	1.62 kg (3.57 lb) Estimated: unit weight plus box and packing material; bills as 4 lb
Shipping Box (L × W × H)	14 × 12 × 10 in. (356 × 305 × 254 mm) Smallest standard box fitting the product with 3 in. cushioning per side

Product weight and dimensions are typical manufacturer-published values and may differ by series or option. Shipping box and weight are estimates for freight planning; the packed unit may ship in a different box.

Datasheet

Datasheet available for download

Generated from product specifications; not an official Allen-Bradley datasheet. For an official datasheet, contact Allen-Bradley or an authorized distributor.

Similar Part Numbers

1766-L32BWA Input type: 24V DC discrete inputs

Allen Bradley Information

Technical Specifications16 parameters from manufacturer-published specifications

Lifecycle	Active Verify current status with the manufacturer.
Controller family	MicroLogix 1400
Embedded digital inputs	20 × 120V AC
Embedded digital outputs	12 relay
Embedded analog I/O	None (see 1766-L32AWAA)
Input power	100…240V AC, 47…63 Hz
User memory	10 K words program; 10 K words data
Data logging / recipes	128 KB data logging memory (up to 64 KB usable for recipes)
Communication	Ethernet 10/100 Mbps (EtherNet/IP, Modbus TCP, DNP3 over IP); isolated RS-232/RS-485 (DF1, DH-485, Modbus RTU, ASCII); RS-232 D-sub
Expansion I/O	Up to 7 × 1762 expansion I/O modules
High-speed counters	6 × 100 kHz
Display	Built-in LCD with keypad
Real-time clock	Embedded
Memory module	1766-MM1 (optional)
Dimensions (H × W × D)	90 × 180 × 87 mm
Weight, approx.	900 g
Programming software	RSLogix 500 / RSLogix Micro

Typical manufacturer-published values for this catalog number; confirm against the current manufacturer documentation before specifying.

Can the 1766-L32AWA be repaired?

Yes. NJT Automation repairs the 1766-L32AWA by mail-in: diagnostic evaluation, component-level repair and a functional test, backed by a 1-year full-function warranty.

NJT managed repair. No evaluation fee; no repair, no charge. Prepaid UPS label both ways, $650 minimum, rush available. 1-year full-function warranty included, 2- and 3-year options.

Get a repair quoteor text photos and symptoms to (414) 331-5954

Compare quotes from independent repair technicians. Post your repair on RepairMode to receive competitive bids from experienced technicians. Each technician sets their own pricing and warranty.

Find a PLC repair specialiston RepairMode.com ↗

Common failures

Failure patterns we regularly see on MicroLogix 1400 controller hardware like the 1766-L32AWA:

LCD blank, garbled or unresponsive keypad
Output relays welded or burned on high-cycle machines (relay-output models)
Channel 0 / Channel 2 serial port damaged by a hot-plugged cable
Program lost after a power event: memory module (1766-MM1) or internal backup failed
Power supply section failure leaving a dead unit

Related services:PLC Repair All Repair Services

Photos by NJT Automation; test videos from NJT or network repair technicians.

Still have questions?

Find answers to shipping, warranties, repairs, and more.

Frequently Asked Questions

What is the 1766-L32AWA?

The Allen-Bradley 1766-L32AWA is a MicroLogix 1400 controller, 20 × 120V AC inputs, 12 relay outputs, 120/240V AC powered, embedded EtherNet/IP, two serial ports and LCD.

What condition is it in?

NJT Automation currently has 1 unit of the 1766-L32AWA in stock in unused surplus condition (Series C). Each listing states its own condition and series. Factory-sealed, unused surplus stock in original packaging. May carry an older date code or series than current OEM production.

How much does it cost?

At NJT Automation, 9 1766-L32AWA MicroLogix 1400 controllers have sold since 2024 for $230 – $1,850, with a median of $400. By condition, used MicroLogix 1400 controllers went for $230 – $600 and unused surplus MicroLogix 1400 controllers went for $750 – $1,850. Right now 1 unit is in stock at $1,600, depending on condition and series.

When does this part ship?

1 unit of the 1766-L32AWA MicroLogix 1400 controller are on the shelf in Milwaukee, WI, priced from $1,599.99. Orders before 5:00 PM Central on a business day ship the same day; next-day air is available at checkout.

What power input does it require?

120/240V AC controller power supply.

How many I/O points does it have?

32-point controller: 20 discrete inputs and 12 discrete outputs built in.
