Allen-Bradley 2098-DSD-HV100X Ultra 3000 Servo Drive
Allen-Bradley 2098-DSD-HV100X Ultra 3000 Servo Drive. NJT Automation sources the 2098-DSD-HV100X on request; send the part number for a replacement or repair quote.
Quote required. Request a quote below for pricing and delivery.

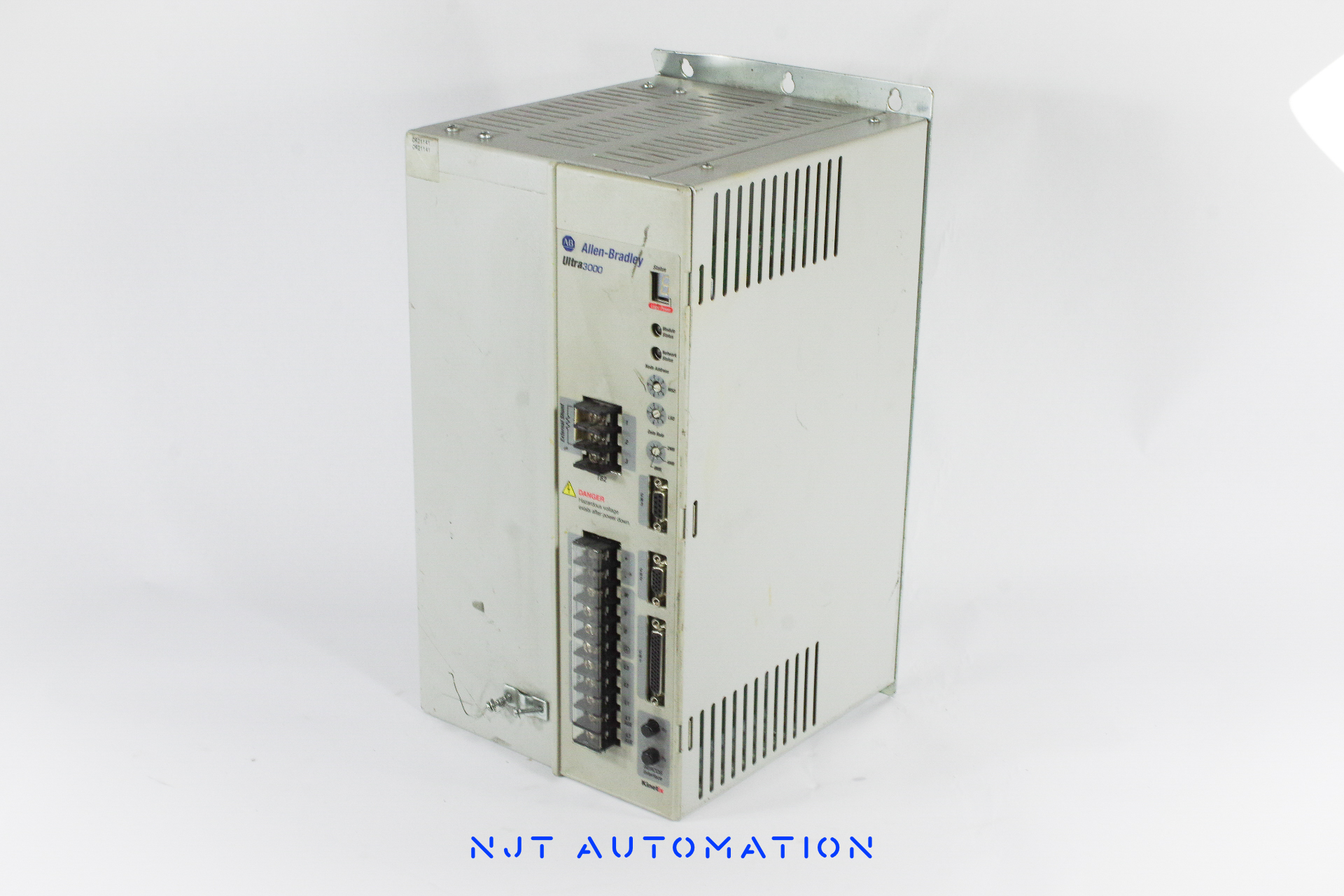

Actual NJT inventory photos
| Part Number | 2098-DSD-HV100X |
| Price | On Request Availability and condition determine final quote. |
| Description | Allen-Bradley 2098-DSD-HV100X Ultra 3000 Servo Drive. |
| Shipping | UPS Ground included | Next-Day Air and Worldwide Shipping available at checkout |
| Warranty | 1-year full-function warranty provided by NJT Automation. Warranty details
|
| Returns | 90-day free returns. View return policy |
| Exchange | Send us your defective 2098-DSD-HV100X after your purchase for a 10% core credit. We also purchase old or damaged parts outright. |
| Availability | Sourced on request We do not have a 2098-DSD-HV100X on the shelf right now. We can source one through our supplier network; request a quote and we confirm availability, price and lead time before you commit. | ||
| Sourcing | Sourced through our Level 1 network of vetted US suppliers. Each unit is checked before it ships and carries the same NJT warranty and return policy as our own stock. Quotes within one hour during business hours; typical delivery 3–5 business days, next-day air available. Sourced parts are not available for local pickup. | ||
| Repairs | 2098-DSD-HV100X Mail-In Repair Service | ||
Intended Use | Built for single-axis servo positioning applications. Ultra 3000 drives run a single servo axis, either as a standalone indexer or under a Logix motion controller on SERCOS, on packaging, converting, medical and lab-automation machines built through the 2000s. | ||
Migration Path | Rockwell Automation has discontinued the Ultra3000. Published successor for the Ultra3000: Kinetix 5100 (2198-E) for indexing and analog/step-direction use, or Kinetix 5300 (2198-C) for Integrated Motion under Logix.
A like-for-like replacement or a repair keeps the existing program, wiring and panel layout; a migration is a project. Both are listed on this page so the choice can be made on lead time and budget. | ||
Allen Bradley Information | Allen-Bradley Ultra 3000 Ultra 5000 Servo Drive High Voltage, 100W, Digital Servo Drive with advanced motion control capabilities and high-speed performance. Technical SpecificationsLifecycle status
| ||
| Category | Ultra 3000 | ||
| Part Number | 2098-DSD-HV100X | ||
| Manufacturer | Allen-Bradley | ||
Can the 2098-DSD-HV100X be repaired?
Yes. NJT Automation repairs the 2098-DSD-HV100X by mail-in: diagnostic evaluation, component-level repair and a functional test, backed by a 1-year full-function warranty.
NJT managed repair. No evaluation fee; no repair, no charge. Prepaid UPS label both ways, $650 minimum, rush available. 1-year full-function warranty included, 2- and 3-year options.
Compare quotes from independent repair technicians. Post your repair on RepairMode to receive competitive bids from experienced technicians. Each technician sets their own pricing and warranty.
Find a servo drive repair specialiston RepairMode.com ↗Common failures
Failure patterns we regularly see on Ultra 3000 servo drive hardware like the 2098-DSD-HV100X:
- Drive will not power up or the status display stays dark: failed switch-mode control power supply board
- IPM fault (E05): IGBT power module shorted after a motor or cable fault, gate driver stage damaged with it
- Bus undervoltage / overvoltage (E09 / E10): aged DC bus electrolytic capacitors, or regen energy with the internal shunt unable to keep up
- Precharge resistor or relay failure: the DC bus never charges after control power is applied
- Illegal Hall state or motor feedback faults (E07 / E11) that follow the drive: feedback interface board or the encoder 5V supply
Photos by NJT Automation; test videos from NJT or network repair technicians.
