Allen-Bradley 22B-D4P0N104 PowerFlex 40 Drive 2 Hp – Pickup in Store

Name: Allen-Bradley 22B-D4P0N104 PowerFlex 40 Drive
Brand: Allen-Bradley
SKU: 22B-D4P0N104
Price: 249.99 USD
Availability: InStock

In stock: 3 units in Milwaukee, WI. Physically stocked and ready to ship or available for local pickup. Includes a 1-year full-function warranty.

PowerFlex 40 AC drive · 480V AC 3-ph · 4 A / 2 Hp · Frame B · IP20 open

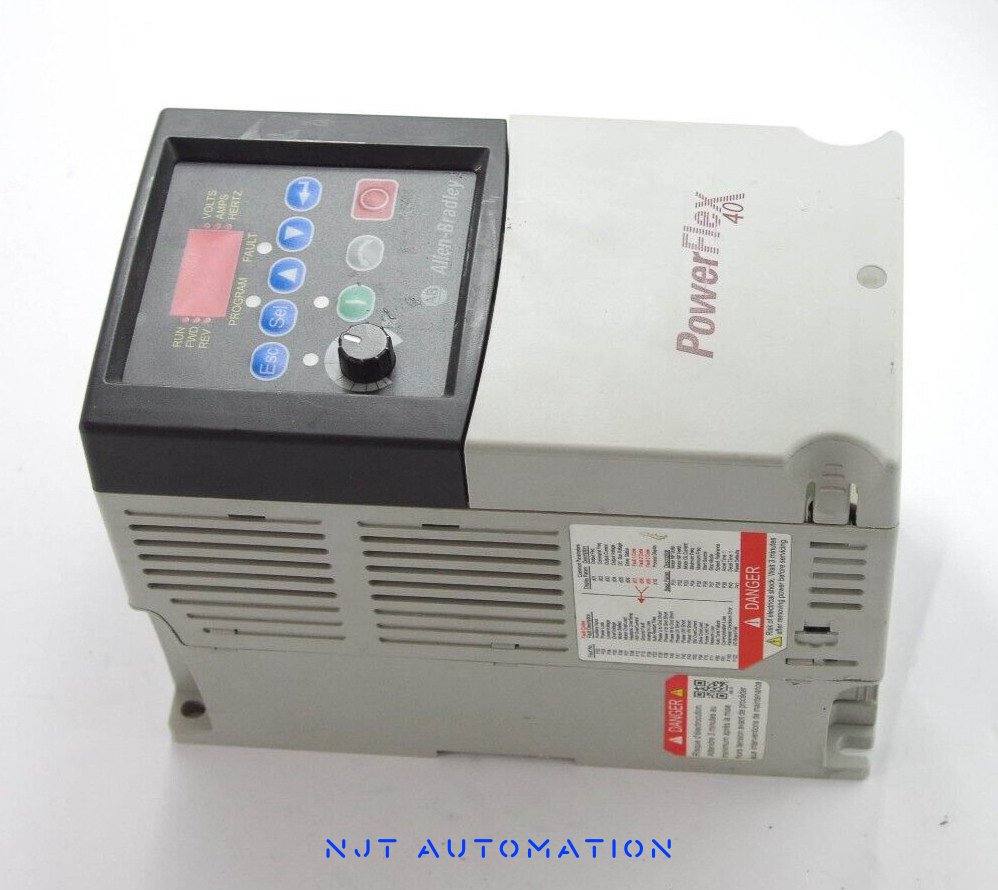

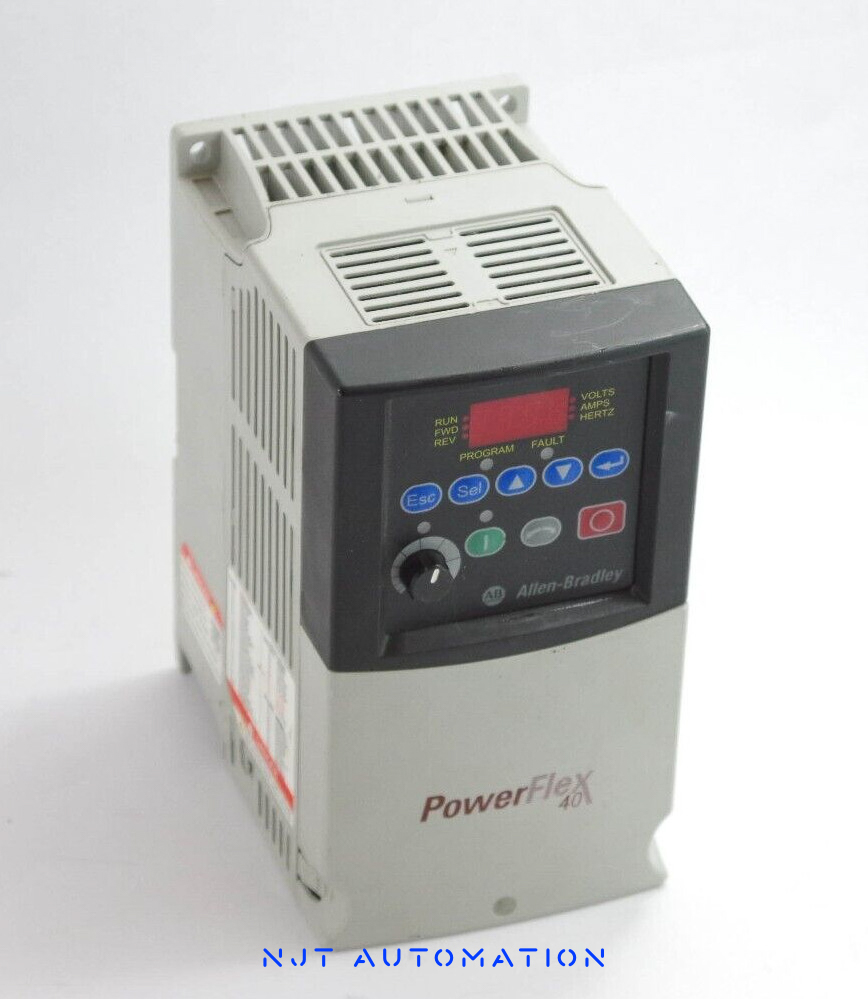

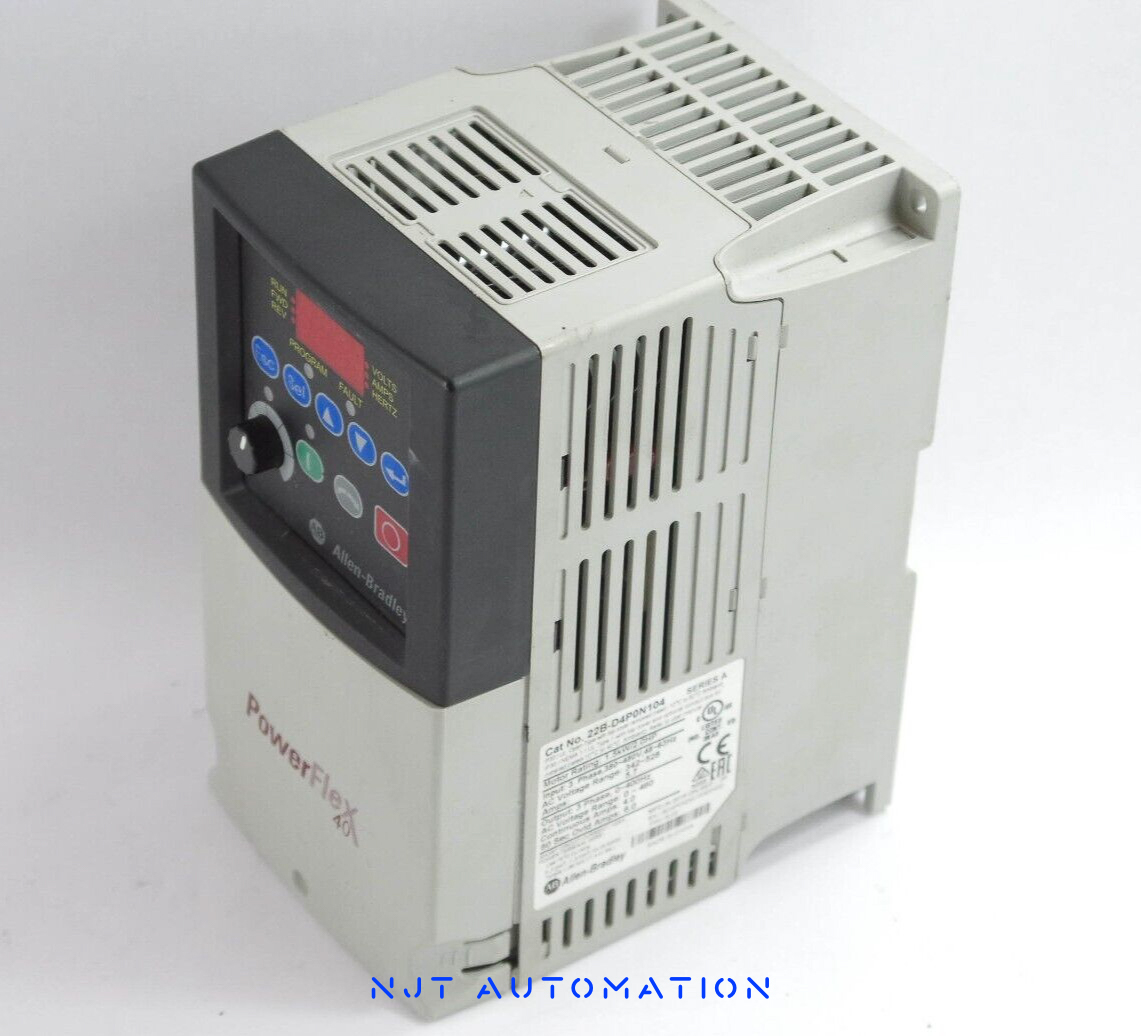

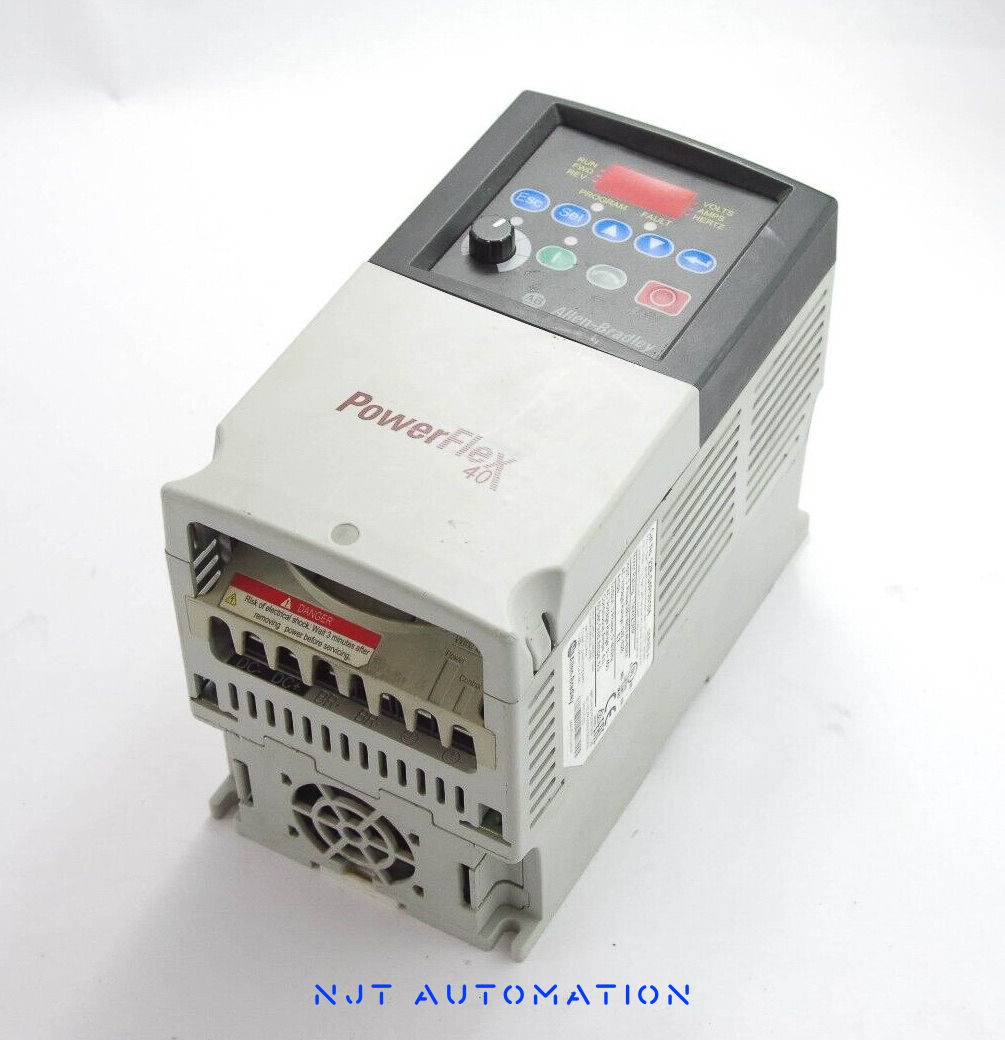

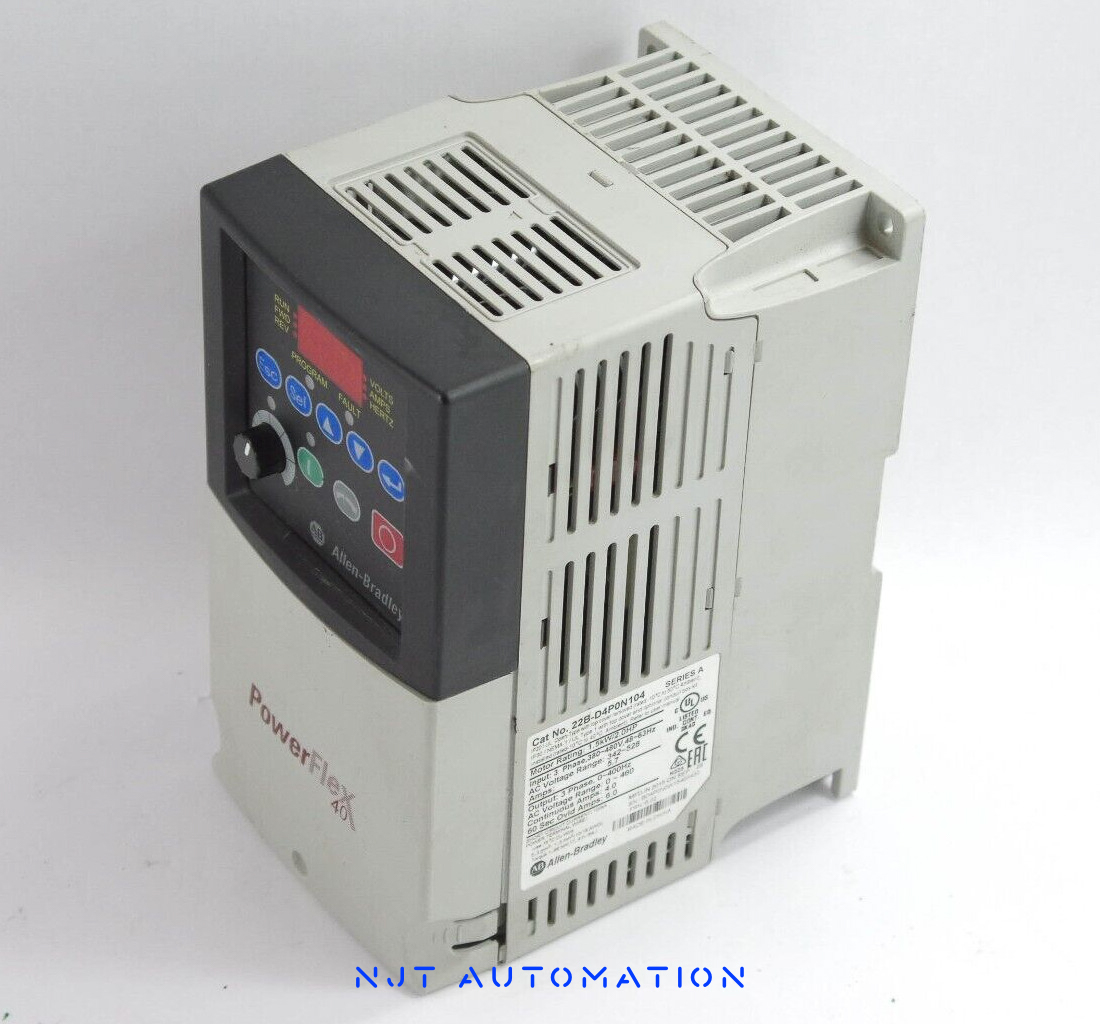

Allen-Bradley 22B-D4P0N104 PowerFlex 40 AC drive, 2 Hp, 480V AC – Series A (1 of 10)

Actual NJT inventory photos

Price

$249.99USDUsed, Series A

Request Repair Quote

Part Number	22B-D4P0N104
Description	PowerFlex 40 AC drive, 2 Hp, 480V AC. In stock in used condition, Series A.
Shipping	Ships same or next business day UPS Ground Included. Next-Day Air and worldwide shipping available. Courier Within 350 miles, est. $3.50/mile, subject to availability.
Pickup	Free local pickup at 2122 N Prospect Ave. Call ahead at (414) 331-5954.
Warranty	1-year full-function warranty provided by NJT Automation. Warranty details Included 1 year, full-function 2 years +15% of product price ($37.50) 3 years +25% of product price ($62.50) View full warranty policy
Returns	90-day free returns. View return policy
Exchange	Send us your defective 22B-D4P0N104 after your purchase for a 10% core credit. We also purchase old or damaged parts outright.

Replacement Options for 22B-D4P0N104

Pick a condition and series below. UPS Ground shipping included.

Allen-Bradley 22B-D4P0N104 PowerFlex 40 Drive – Series A, Used

Allen-Bradley 22B-D4P0N104 PowerFlex 40 Drive – Series A, Used, second photo

Allen Bradley 22B-D4P0N104 ser A PowerFlex 40 AC Drive 480V 3PH 1.5kW 2HP 4A 22B

$249.99 USDIn-stock match

Condition: Used

Series A

3 in stockView details

Variants

Part NumberConditionSeriesQtyPrice

22B-D4P0N104 /A$249.99

Used · Series A · 3 in stock

22B-D4P0N104 /AUsedSeries A3$249.99 USD

22B-D4P0N104

Refurbished — pick series, then request a quote

Series neededRequest Quote

22B-D4P0N104RefurbishedSeries needed—Request Quote

Availability

3 units in stock

Part Number Decoder

PowerFlex 40 AC drive

22BD4P0N104

22B: BulletinPowerFlex 40: Allen-Bradley's 0.4…11 kW (0.5…15 Hp) compact sensorless-vector AC drive with integral RS-485, PID, StepLogic and an option slot for network cards; Frames B…C.
D: Voltage rating480V AC, three-phase input.
4P0: Output rating4 A output current, 2 Hp motor. Frame B drive.
N: EnclosurePanel mount, IP20, NEMA/UL Type Open (IP30 / Type 1 with the 22-JB conduit-box kit).
1: HIMIntegral fixed keypad with 4-digit LED display and speed potentiometer.
0: EMC filterNo internal EMC filter (external S / L-type filters available).
4: VersionStandard drive with internal dynamic-brake transistor (add an external resistor to use it).

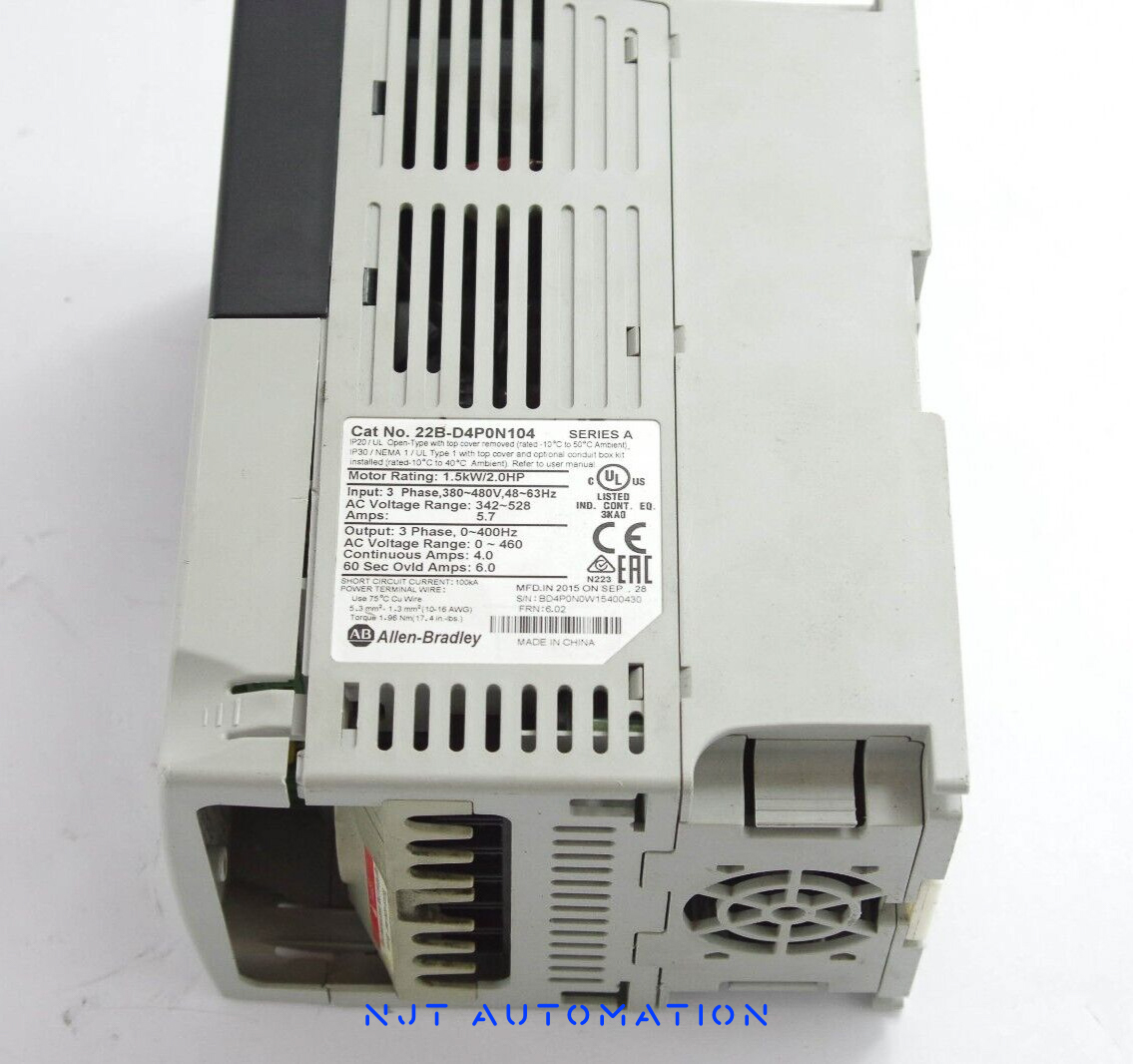

Decoded from the Rockwell Automation catalog-number structure. Series and firmware revision are printed on the product label, not encoded here.

Series & Revisions

Series A in stock; other series on request.

Intended Use

Intended for general-purpose small-motor variable-speed control applications. PowerFlex 40 drives run conveyors, pumps, fans, mixers and small machines up to 15 Hp, with sensorless vector control and optional network adapters.

Migration Path

Rockwell Automation has discontinued the PowerFlex 40. Published successor for the PowerFlex 40: PowerFlex 525 25B-D4P0N104 (same voltage, current and enclosure code).

The 520-Series catalog structure mirrors the PowerFlex 4-Class, so the 25B- number with the same voltage, current and enclosure code is the direct equivalent, and the 525 adds embedded EtherNet/IP and Safe Torque Off.
Rockwell's PowerFlex 4-Class to 520-Series migration literature includes a parameter cross-reference; 22-COMM-x adapters give way to the embedded port or 25-COMM-x modules.
Mounting footprints are close but not identical between frames; verify the cutout against 520-TD001.

A like-for-like replacement or a repair keeps the existing program, wiring and panel layout; a migration is a project. Both are listed on this page so the choice can be made on lead time and budget.

Physical Data

Weight and DimensionsWeight4.85 lb (2.20 kg)H × W × D7.1 × 3.9 × 5.4 in. (180 × 100 × 136 mm)

Weight	2.20 kg (4.85 lb) Typical unit weight
Dimensions (H × W × D)	180 × 100 × 136 mm (7.1 × 3.9 × 5.4 in.) Frame B
Shipping Weight	2.92 kg (6.44 lb) Estimated: unit weight plus box and packing material; bills as 7 lb
Shipping Box (L × W × H)	14 × 12 × 10 in. (356 × 305 × 254 mm) Smallest standard box fitting the product with 3 in. cushioning per side

Product weight and dimensions are typical manufacturer-published values and may differ by series or option. Shipping box and weight are estimates for freight planning; the packed unit may ship in a different box.

Similar Part Numbers

22B-D012N104 Output rating: 12 A output current, 7.5 Hp motor
22B-D024N104 Output rating: 24 A output current, 15 Hp motor
22B-D2P3N104 Output rating: 2.3 A output current, 1 Hp motor

Allen Bradley Information

Technical SpecificationsLifecycle status

Lifecycle	Active Verify current status with the manufacturer.

Still have questions?

Find answers to shipping, warranties, repairs, and more.

Frequently Asked Questions

What is the 22B-D4P0N104?

The Allen-Bradley 22B-D4P0N104 is a PowerFlex 40 AC drive, 480V AC 3-ph, 4 A / 2 Hp, Frame B, IP20 open, no EMC filter, with brake transistor.

What condition is it in?

NJT Automation currently has 3 units of the 22B-D4P0N104 in stock in used condition (Series A). Each listing states its own condition and series. Used means a unit removed from service and sold without refurbishment. Cosmetic condition, any functional testing performed, and the warranty term are stated on each unit’s own listing. From the listing: This item is in good working condition with some signs of use and is fully functional. It comes with 90-day free returns and a 1 year NJT warranty.

How much does it cost?

The 22B-D4P0N104 starts at $249.99 (Used, Series A) at NJT Automation. 3 units are in stock. 2 22B-D4P0N104 PowerFlex 40 AC drives have sold in 2026.

When does this part ship?

3 units of the 22B-D4P0N104 PowerFlex 40 AC drive are on the shelf in Milwaukee, WI, priced from $249.99. Orders before 5:00 PM Central on a business day ship the same day; next-day air is available at checkout.

What power input does it require?

480V AC, three-phase input.

What is its power rating?

4 A output current, 2 Hp motor.
