Allen-Bradley 25B-D1P4N104 PowerFlex 525 Drive 0.5 Hp, 480V AC

Allen-Bradley 25B-D1P4N104 PowerFlex 525 AC drive, 480V AC 3-ph, 1.4 A / 0.5 Hp normal duty, Frame A, IP20 open, no EMC filter, embedded EtherNet/IP and Safe Torque Off. NJT Automation sources the 25B-D1P4N104 on request; send the part number for a replacement or repair quote.

Quote required. Request a quote below for pricing and delivery.

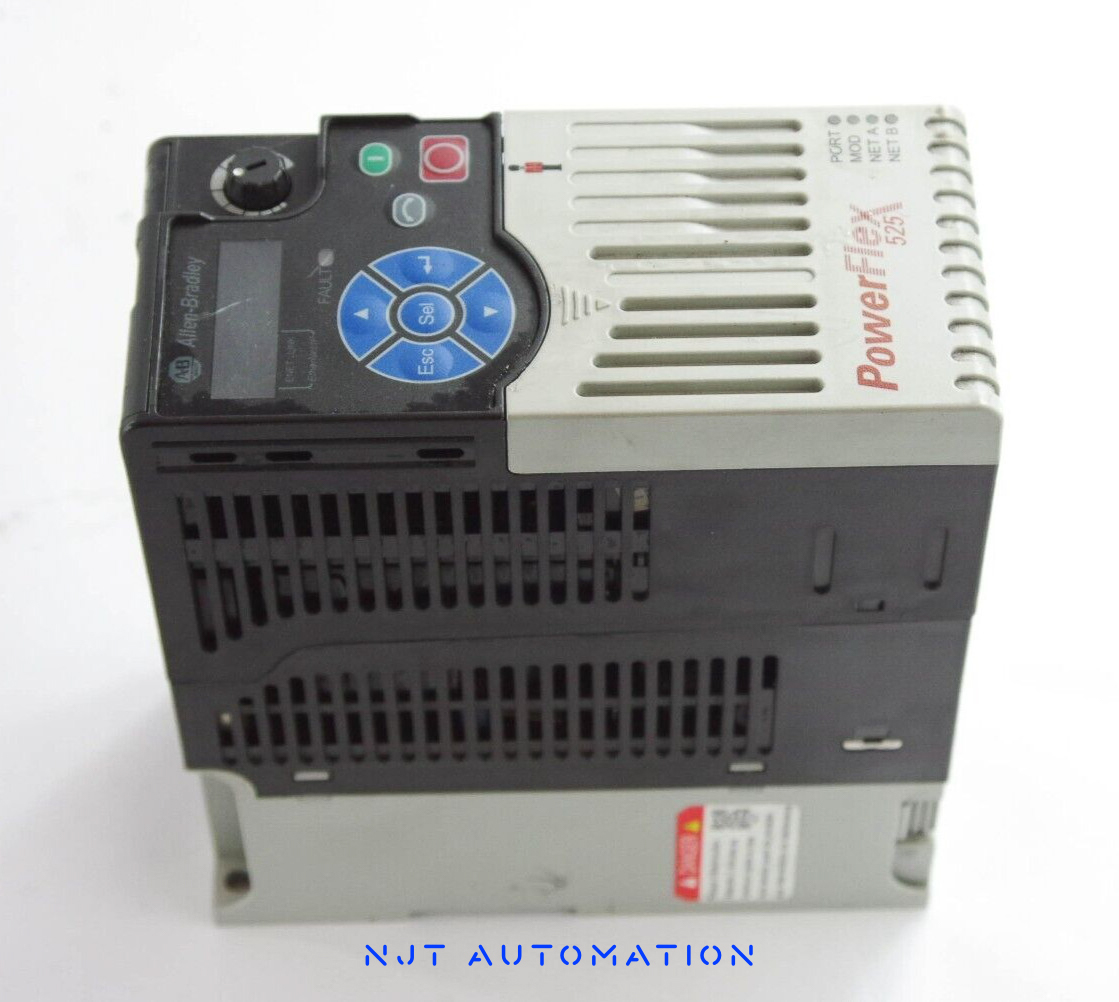

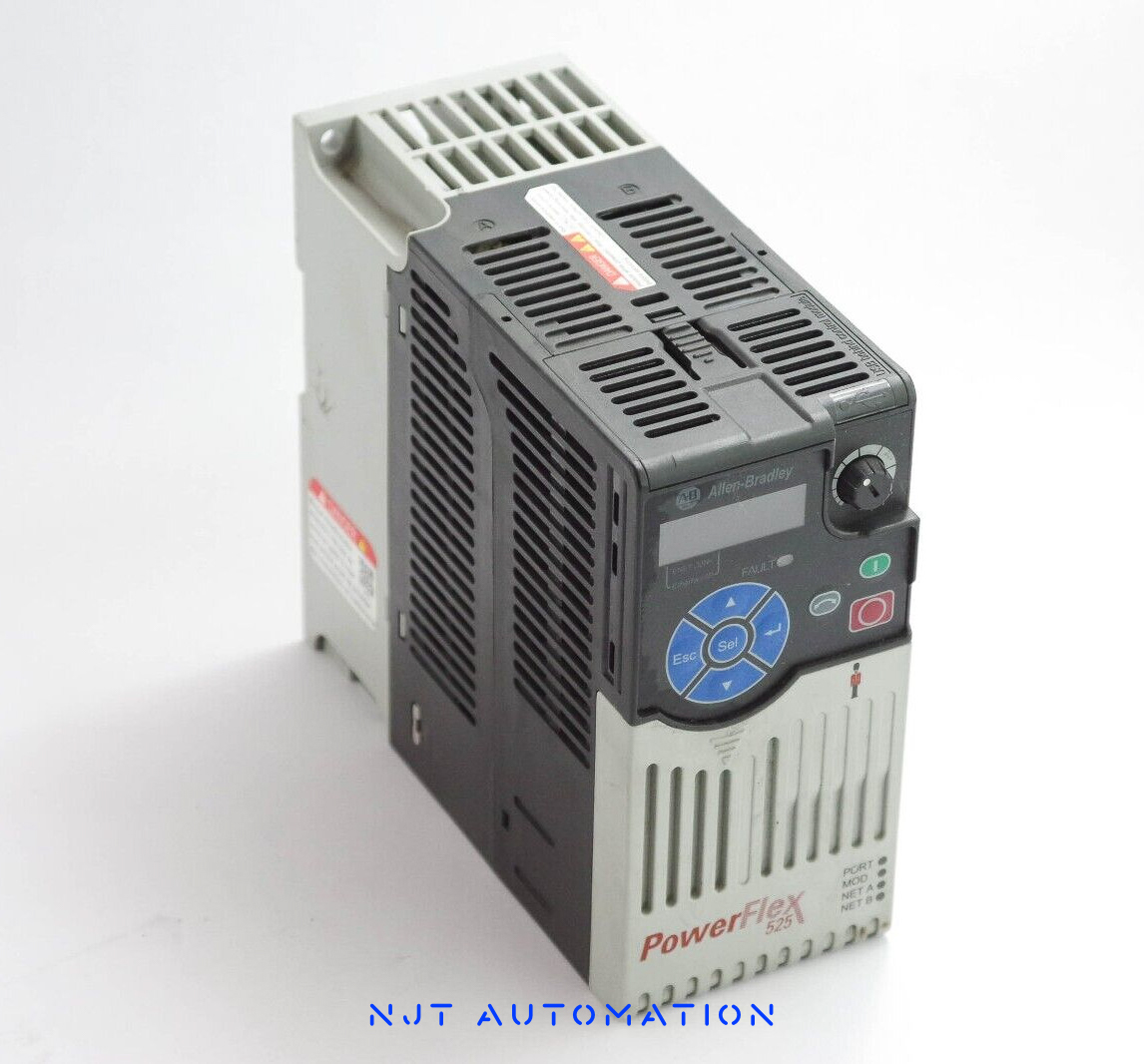

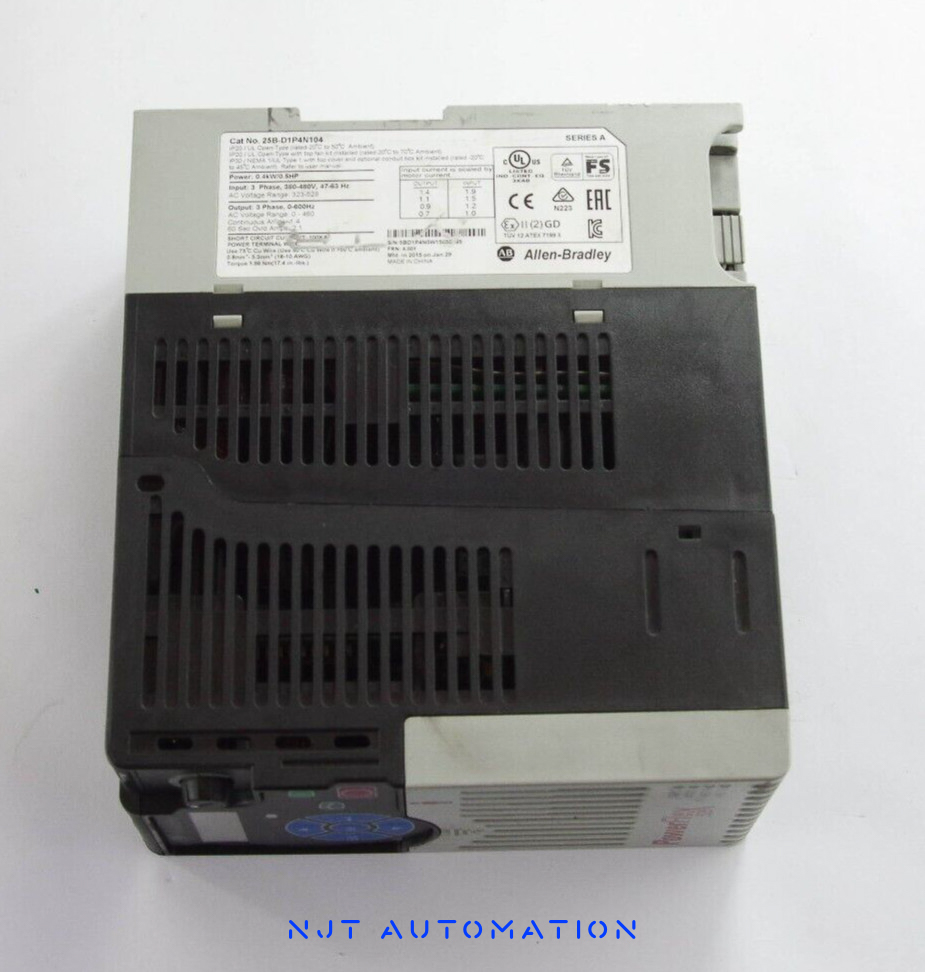

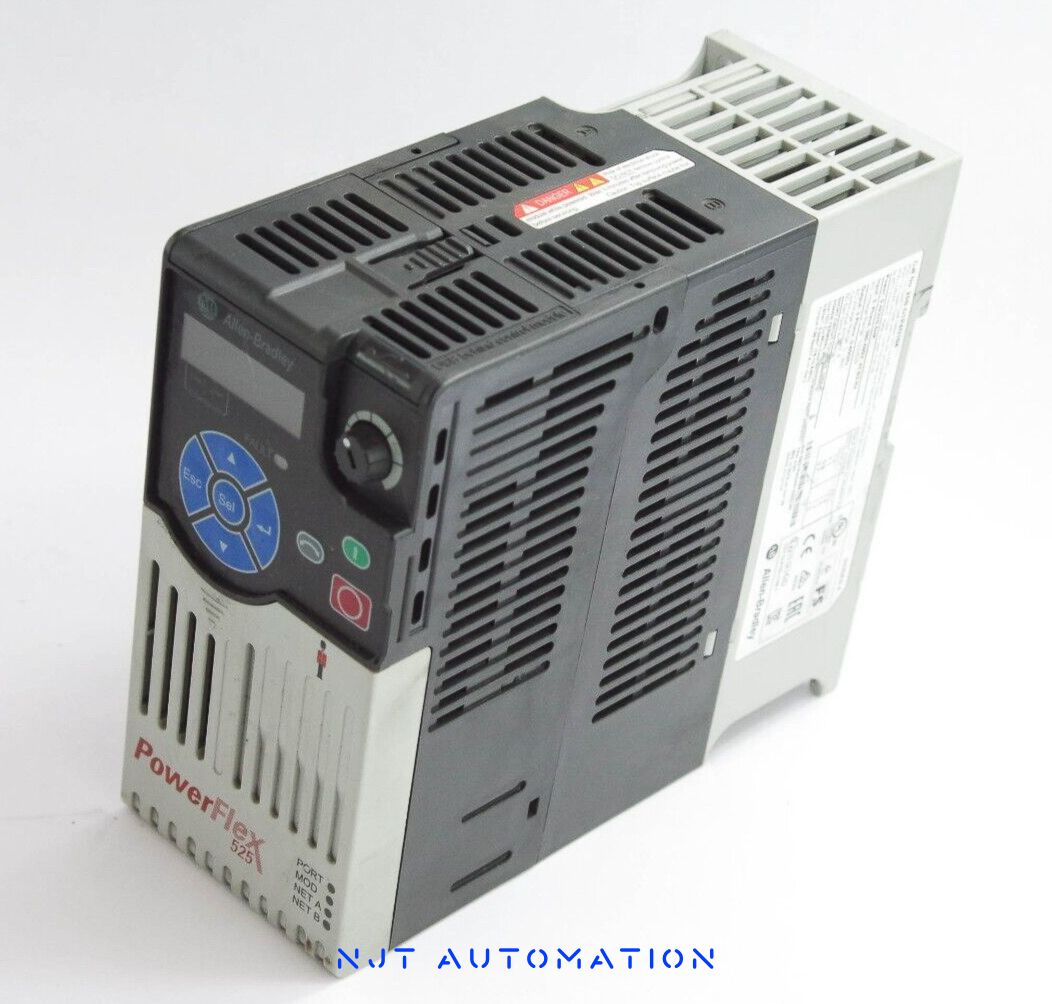

Allen-Bradley 25B-D1P4N104 PowerFlex 525 AC drive, 0.5 Hp, 480V AC – Series A (1 of 5)

Actual NJT inventory photos

Request Replacement Quote Request Repair Quote

Part Number	25B-D1P4N104
Price	On Request Previously sold for $109.00 USDAvailability and condition determine final quote.
Description	PowerFlex 525 AC drive, 0.5 Hp, 480V AC.
Shipping	UPS Ground included \| Next-Day Air and Worldwide Shipping available at checkout
Warranty	1-year full-function warranty provided by NJT Automation. Warranty details Included 1 year, full-function 2 years +15% of product price ($16.35) 3 years +25% of product price ($27.25) View full warranty policy
Returns	90-day free returns. View return policy
Exchange	Send us your defective 25B-D1P4N104 after your purchase for a 10% core credit. We also purchase old or damaged parts outright.

Availability

Sourced on request

We do not have a 25B-D1P4N104 on the shelf right now. We can source one through our supplier network; request a quote and we confirm availability, price and lead time before you commit.

Sourcing

Sourced through our Level 1 network of vetted US suppliers. Each unit is checked before it ships and carries the same NJT warranty and return policy as our own stock. Quotes within one hour during business hours; typical delivery 3–5 business days, next-day air available. Sourced parts are not available for local pickup.

Request Quote How Level 1 sourcing works

Part Number Decoder

PowerFlex 525 AC drive

25BD1P4N104

25B: BulletinPowerFlex 525: Allen-Bradley's 0.4…22 kW (0.5…30 Hp) compact drive with embedded EtherNet/IP, Safe Torque Off, USB programming and a removable control module; Frames A…E.
D: Voltage rating480V AC, three-phase input.
1P4: Output rating1.4 A output current, 0.5 Hp normal duty. Frame A drive.
N: EnclosureIP20, NEMA/UL Open Type panel mount (Frames A…C also DIN-rail mount).
1: HIMStandard fixed keypad with LCD display.
0: EMC filterNo internal EMC filter (external filter kit available).
4: BrakingStandard build: internal dynamic-brake transistor (add an external resistor to use it).

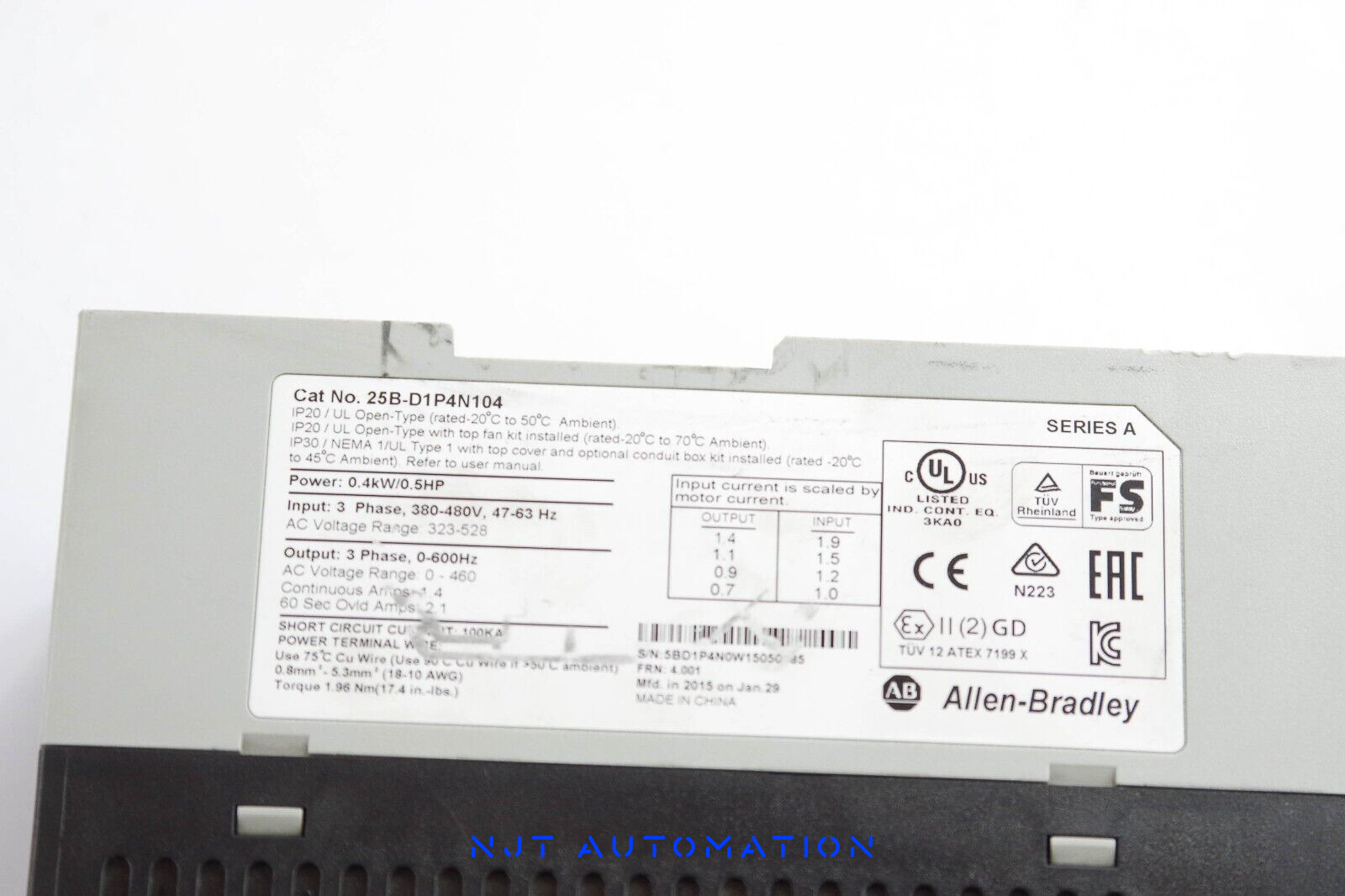

Decoded from the Rockwell Automation catalog-number structure. Series and firmware revision are printed on the product label, not encoded here.

Series & Revisions

No series in stock today; request a series above.

Intended Use

Intended for EtherNet/IP-connected general-purpose variable-speed control applications. PowerFlex 525 drives run conveyors, pumps, fans, mixers and small machines up to 30 Hp, with embedded EtherNet/IP, Safe Torque Off and a removable control module, under a Logix or Micro800 controller. Safe Torque Off lets the drive sit in the machine's safety circuit without an external contactor.

Physical Data

Weight and DimensionsWeight2.43 lb (1.10 kg)H × W × D6 × 2.8 × 6.8 in. (152 × 72 × 172 mm)

Weight	1.10 kg (2.43 lb) Typical unit weight
Dimensions (H × W × D)	152 × 72 × 172 mm (6 × 2.8 × 6.8 in.) Frame A
Shipping Weight	1.82 kg (4.01 lb) Estimated: unit weight plus box and packing material; bills as 5 lb
Shipping Box (L × W × H)	14 × 12 × 10 in. (356 × 305 × 254 mm) Smallest standard box fitting the product with 3 in. cushioning per side

Product weight and dimensions are typical manufacturer-published values and may differ by series or option. Shipping box and weight are estimates for freight planning; the packed unit may ship in a different box.

Similar Part Numbers

25B-D010N104 Output rating: 10.5 A output current, 5 Hp normal duty
25B-D2P3N104 Output rating: 2.3 A output current, 1 Hp normal duty
25B-D010N114 Output rating: 10.5 A output current, 5 Hp normal duty; EMC filter: Internal EMC filter fitted
25B-D037N114 Output rating: 37 A output current, 25 Hp normal duty; EMC filter: Internal EMC filter fitted

Allen Bradley Information

Technical SpecificationsLifecycle status

Lifecycle	Active Verify current status with the manufacturer.

Previously sold 25B-D1P4N104

1 sold

NJT Automation has supplied and shipped one 25B-D1P4N104 PowerFlex 525 AC drive in 2024; request a quote and we will source another from our supplier network.

Sold: 1 in 2024
Series: A × 1

Sold

Allen Bradley 25B-D1P4N104 / 25BD1P4N104 Ser A PowerFlex 525 AC Drive 3-Phase

$109.00 USD

Used

Request Quote

Still have questions?

Find answers to shipping, warranties, repairs, and more.

Frequently Asked Questions

What is the 25B-D1P4N104?

The Allen-Bradley 25B-D1P4N104 is a PowerFlex 525 AC drive, 480V AC 3-ph, 1.4 A / 0.5 Hp normal duty, Frame A, IP20 open, no EMC filter, embedded EtherNet/IP and Safe Torque Off.

What condition is it in?

The 25B-D1P4N104 may be available on request in Used condition. Used means a unit removed from service and sold without refurbishment. Cosmetic condition, any functional testing performed, and the warranty term are stated on each unit’s own listing.

When does this part ship?

The 25B-D1P4N104 is sourced on request. Request a quote and we'll confirm availability and lead time, typically a few business days.

What power input does it require?

480V AC, three-phase input.

What is its power rating?

1.4 A output current, 0.5 Hp normal duty.
