NJT Automation has supplied and shipped 9 2711P-T6C20D PanelView Plus touch terminals since 2024; these listings are sold and the in-stock options above are ready to ship.
- Sold
- 9 since 2024
- Series
- C × 5, D × 4
In stock: 4 units in Milwaukee, WI.
PanelView Plus 5.5-in. color touch terminal · Ethernet + RS-232 · 24V DC powered

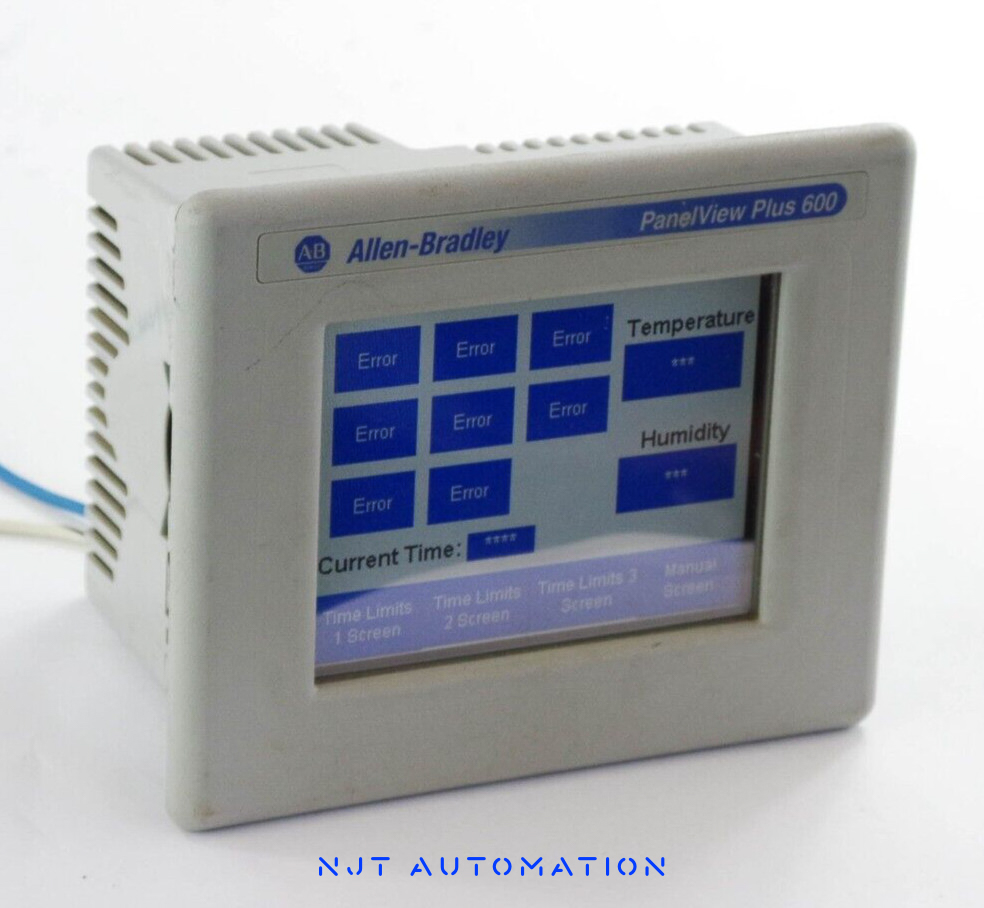

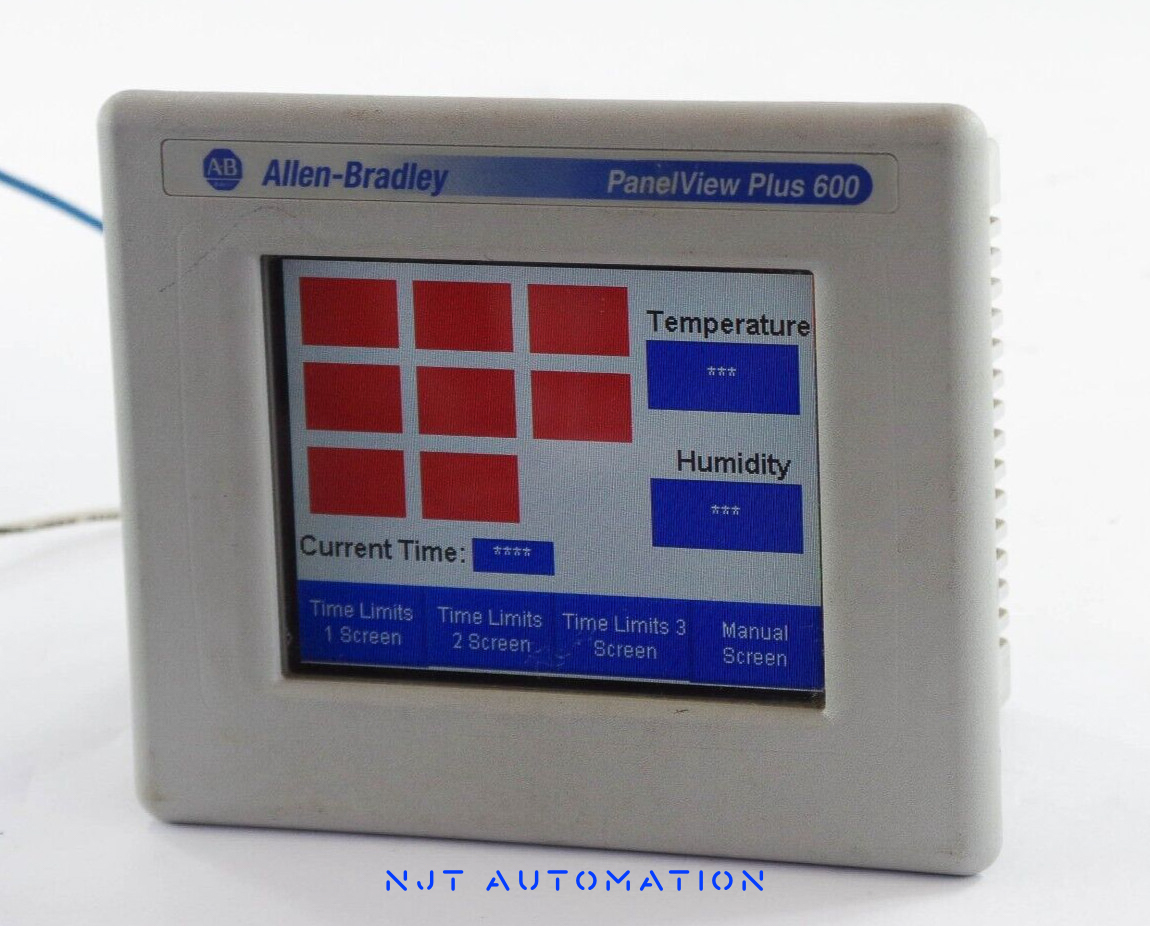

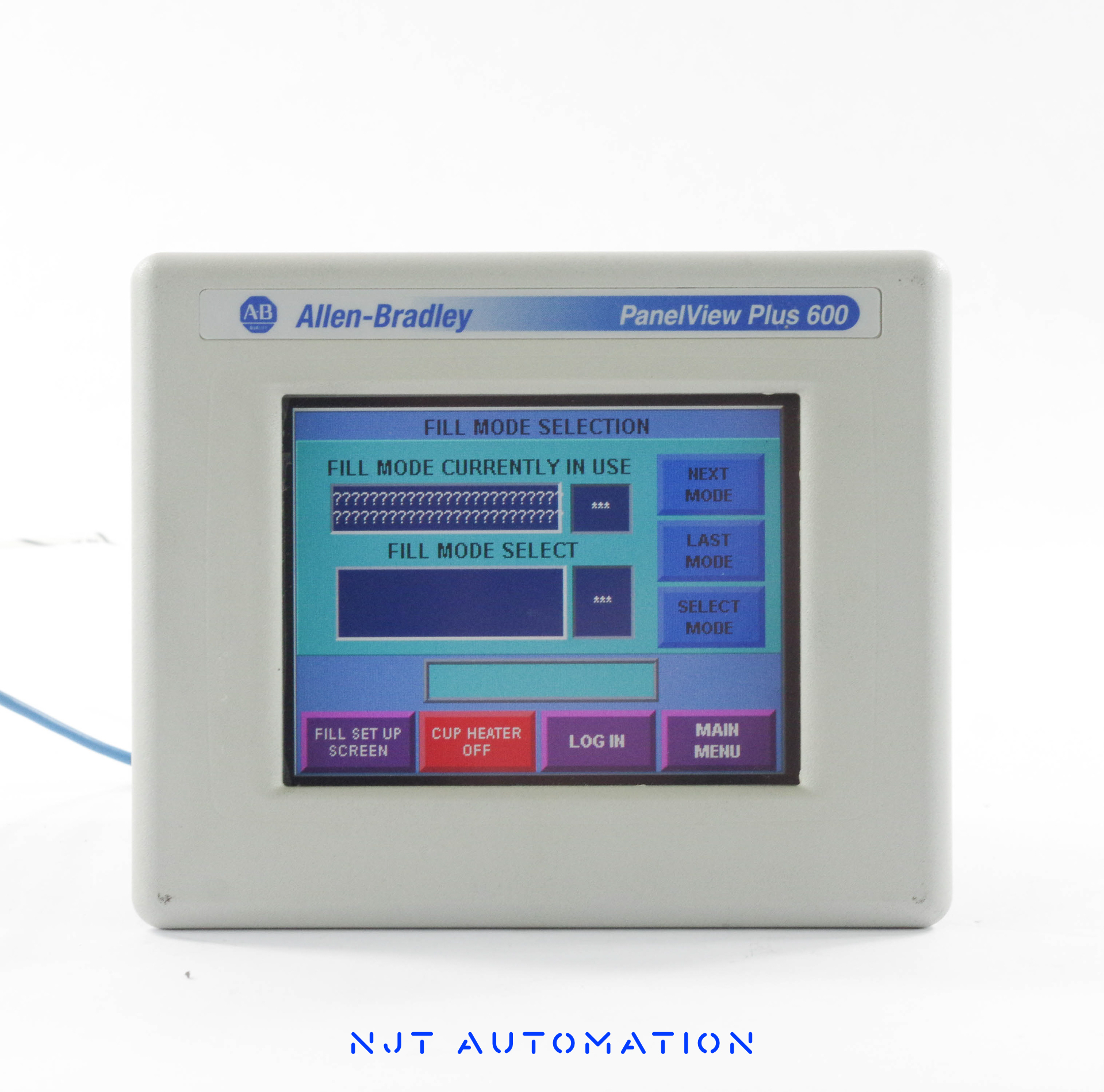

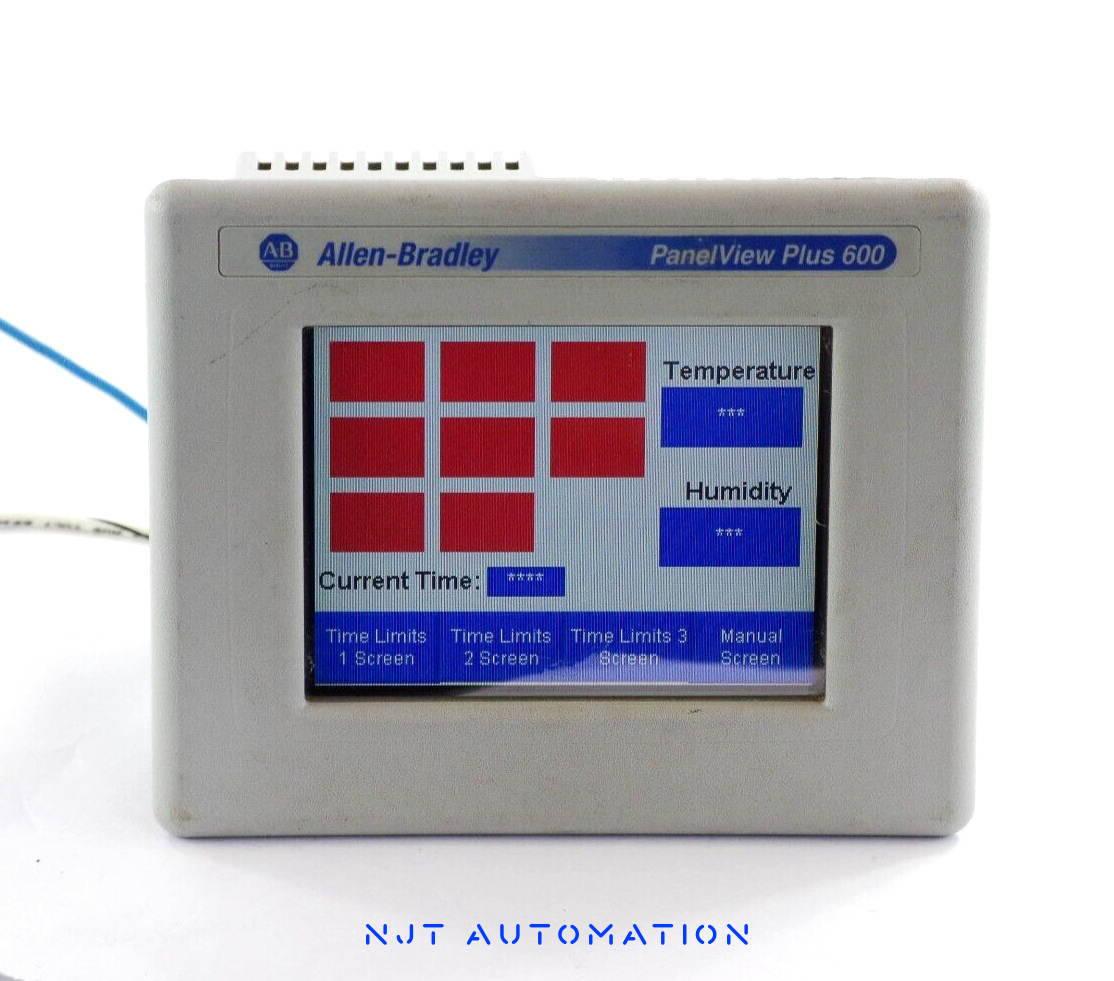

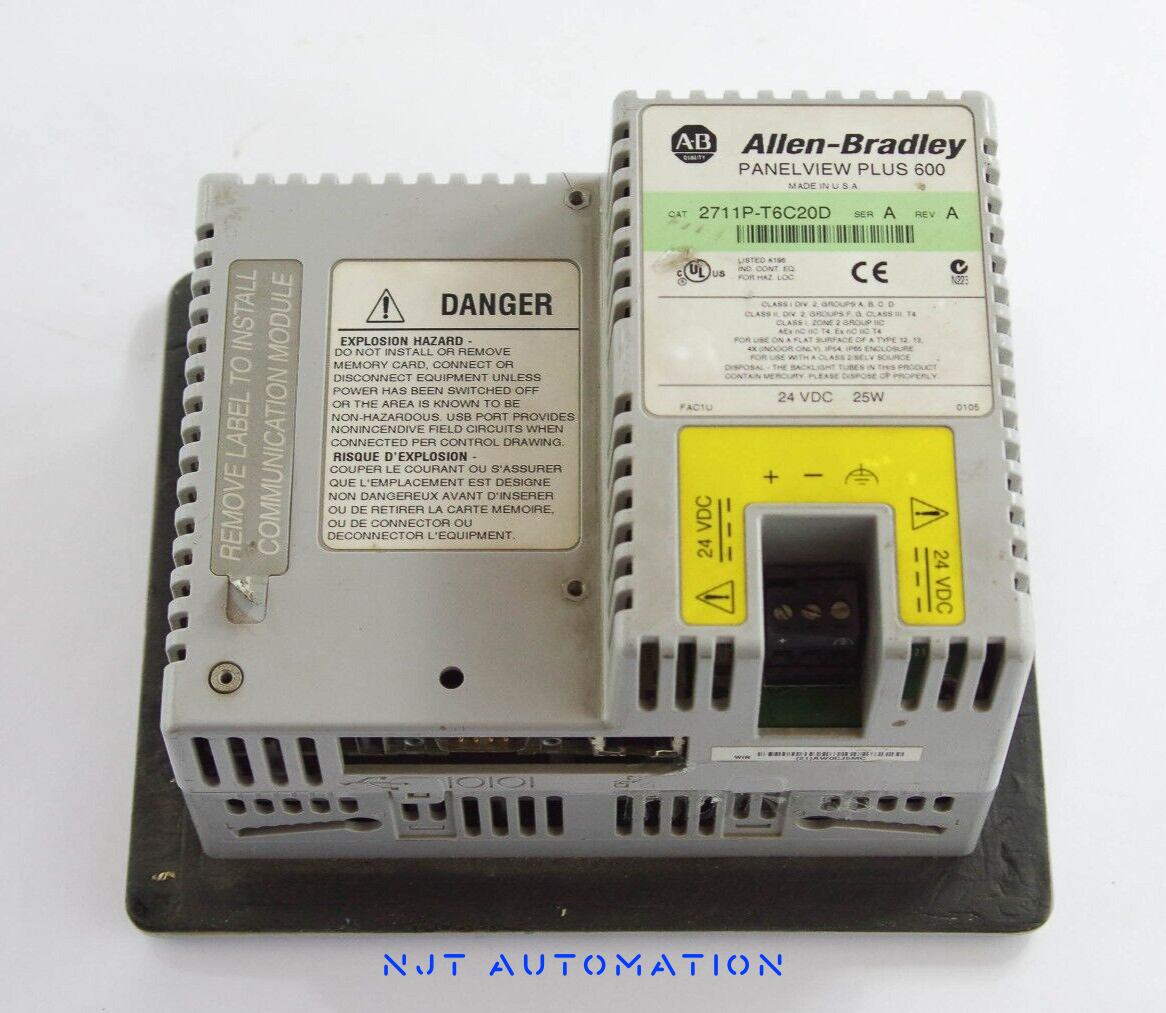

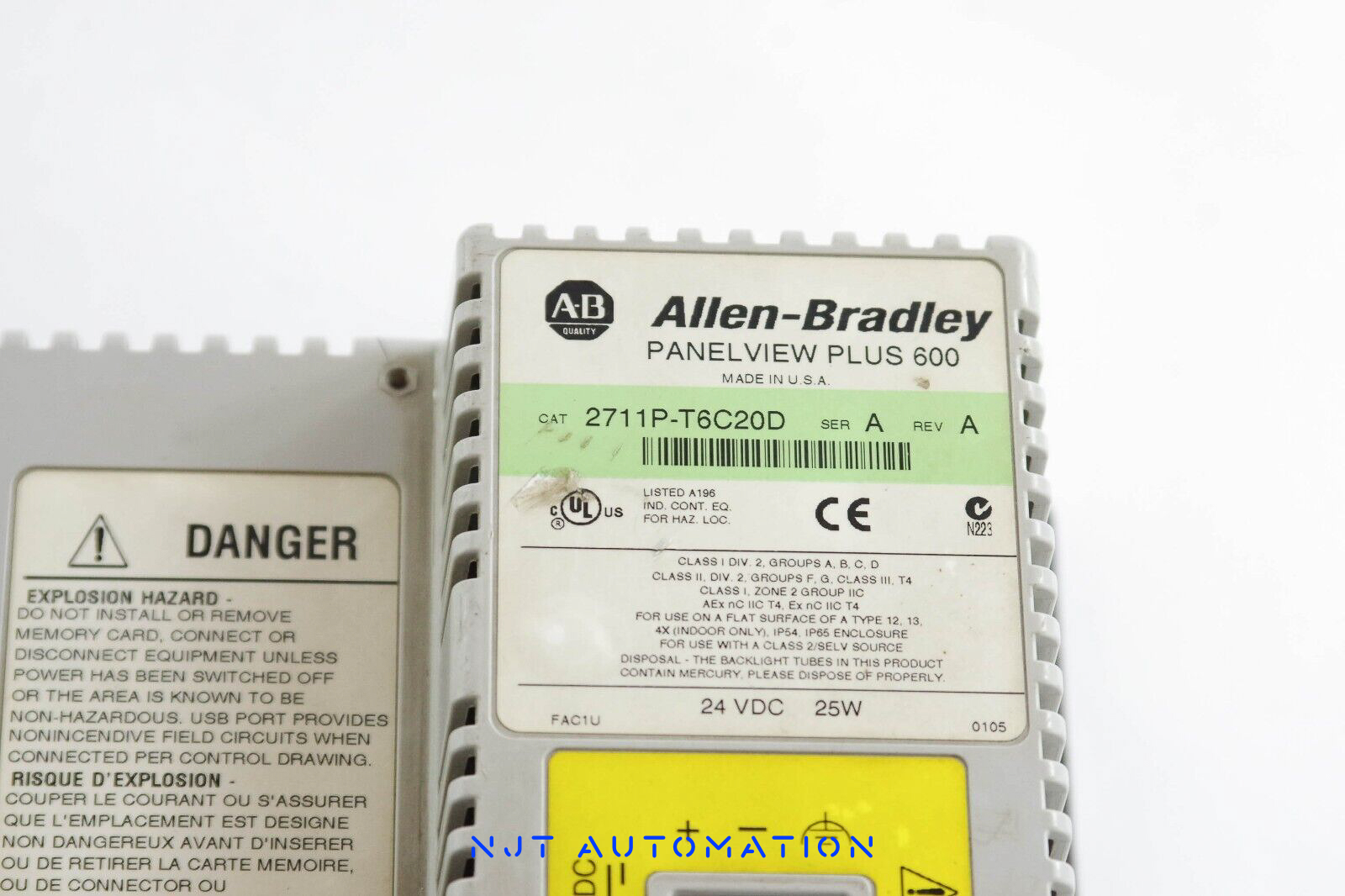

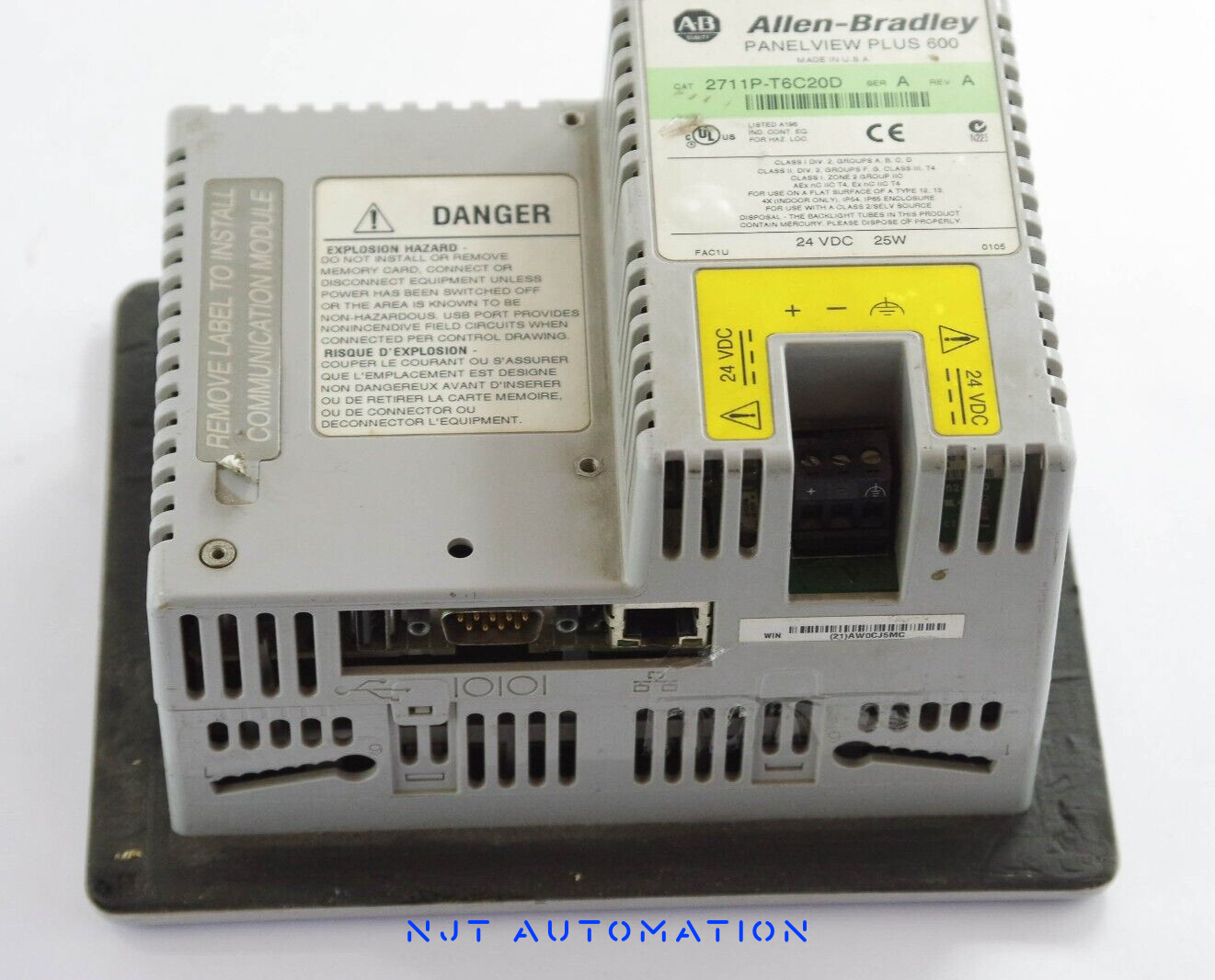

Actual NJT inventory photos
| Part Number | 2711P-T6C20D |
| Description | PanelView Plus touch terminal, 5.5-in. Touch, 24V DC. In stock in used and refurbished condition, Series C and D. |
| Shipping | Ships same or next business day
|
| Pickup | Free local pickup at 2122 N Prospect Ave. Call ahead at (414) 331-5954. |
| Warranty | 1-year full-function warranty provided by NJT Automation. Warranty details
|
| Returns | 90-day free returns. View return policy |
| Exchange | Send in your defective 2711P-T6C20D for a 10% core credit. |
| Variants | Part NumberConditionSeriesQtyPrice 2711P-T6C20D /D$799.99 Used · Series D · 1 in stock2711P-T6C20D /DUsedSeries D1$799.99 USD 2711P-T6C20D /C$849.99 Used · Series C · 1 in stock2711P-T6C20D /CUsedSeries C1$849.99 USD 2711P-T6C20D /D$1,249.99 Refurbished · Series D · 1 in stock2711P-T6C20D /DRefurbishedSeries D1$1,249.99 USD 2711P-T6C20D /C$1,699.99 Used · Series C · 1 in stock2711P-T6C20D /CUsedSeries C1$1,699.99 USD | ||||||||||||||||||||||
| Availability | 4 Units in StockIndependently SourcedNot an OEM-Authorized Distributor | ||||||||||||||||||||||
| Repairs | 2711P-T6C20D Mail-In Repair ServiceEstimated: $1,295.00 | ||||||||||||||||||||||
Part Number Decoder | PanelView Plus touch terminal 2711P·T·6·C·20·D
Decoded from the Rockwell Automation catalog-number structure. Series and firmware revision are printed on the product label, not encoded here. | ||||||||||||||||||||||
Series & Revisions | Series C and D in stock; other series on request. Series notes: Same cutout and connections across series; confirm the replacement's firmware supports the project's FactoryTalk View ME version. | ||||||||||||||||||||||
Intended Use | Built for machine operator interface (HMI) applications. PanelView Plus terminals with a 5.5-in. display are the operator screens on packaging, food and beverage, pharmaceutical, automotive and water equipment, running FactoryTalk View ME applications against Logix, SLC and PLC-5 controllers. | ||||||||||||||||||||||
Physical Data | Weight and DimensionsWeight1.74 lb (0.79 kg)H × W × D6 × 7.3 × 3.9 in. (152 × 185 × 98 mm)▾
Product weight and dimensions are typical manufacturer-published values and may differ by series or option. Shipping box and weight are estimates for freight planning; the packed unit may ship in a different box. | ||||||||||||||||||||||
Similar Part Numbers |
| ||||||||||||||||||||||
Allen-Bradley Information | Technical Specifications10 parameters from manufacturer-published specifications▾
Typical manufacturer-published values for this catalog number; confirm against the current manufacturer documentation before specifying. | ||||||||||||||||||||||
| Category | PanelView Plus | ||||||||||||||||||||||
| UPC / GTIN | 781180130618 | ||||||||||||||||||||||
| Part Number | 2711P-T6C20D | ||||||||||||||||||||||
| Manufacturer | Allen-Bradley | ||||||||||||||||||||||
NJT Automation has supplied and shipped 9 2711P-T6C20D PanelView Plus touch terminals since 2024; these listings are sold and the in-stock options above are ready to ship.
Yes. NJT Automation repairs the 2711P-T6C20D by mail-in: diagnostic evaluation, component-level repair and a functional test.
Option 1
NJT Managed Repair
Option 2
Independent repair bids. Compare quotes from independent repair technicians. Post your repair on RepairMode to receive competitive bids from experienced technicians. Each technician sets their own pricing and warranty.
Failure patterns we regularly see on PanelView Plus touch terminal hardware like the 2711P-T6C20D:
Fault code reference
20 codes · 2711P-UM001
Fault codes a PanelView Plus touch terminal reports on the screen at start-up (error number with an ERROR! message) and the Fault (red) and Comm (green) indicators, as documented in Rockwell Automation publication 2711P-UM001. Use them to narrow a problem down to the unit, its wiring or the application before sending it in for repair.
| Error # | Displayed message | What it indicates |
|---|---|---|
| 1 | RAM Test | RAM test failure. Reset the terminal; if it persists, reseat the SO-DIMM (700…1500). A persistent failure is a logic board fault. |
| 14 | RAM Header Check | The OS firmware being downloaded is not compatible with the hardware (400/600 terminals). |
| 20 | Transfer Image | Programming the downloaded OS firmware into flash failed (400/600 terminals). |
| 23 | Download Task / Internal CF | Firmware image too large (400/600), or an error programming firmware to the internal CompactFlash (700…1500). |
| 24 | CRC Check | Checksum of the OS firmware failed; reload firmware. Persistent failures point to the internal CompactFlash or logic module. |
| 25 | Invalid Prod Family | The OS firmware being downloaded is not for this terminal family (400/600 terminals). |
| 27 | Decompress System | Error decompressing the OS firmware from flash to RAM (400/600 terminals). |
| 30 | Watchdog Test | Watchdog test failure; reload firmware, then suspect the logic module. |
| 31 | Stuck Key | A function key is held or stuck. Make sure nothing presses on the keypad (on the 400/600, tap F1 rather than holding it to enter Configuration mode) and reset; persistent failures mean the keypad / display module. |
| 31.5 | Stuck Touch | Touch screen reports a constant touch (700…1500 terminals). Remove anything pressing on the screen, including a damaged anti-glare overlay, and reset; persistent failures mean the display module. |
| 32 | Battery Test | Battery failure (700…1500 terminals). Fit a new battery; if it persists, the fault is on the logic module. |
| 33.5 | NVRAM Access | Nonvolatile memory failure (700…1500 terminals); upgrade system firmware to 3.10.03 or later. |
| 3a | Stuck Touch | Touch screen reports a constant touch (400/600 terminals). Remove anything pressing on the screen, including a damaged anti-glare overlay, and reset; persistent failures mean the terminal. |
| 40 | EXE Check | System OS firmware is missing or corrupt; reload firmware. |
| 50 | External CF | Error loading OS firmware from the external CompactFlash card. |
| Indicators | State | What it indicates |
|---|---|---|
| Fault blinking · Comm off | Last firmware download failed | Recoverable: reload the firmware with the Firmware Upgrade Wizard. |
| Fault blinking · Comm blinking | Boot loader firmware failed or missing | Recoverable: reload the firmware with the Firmware Upgrade Wizard. |
| Fault blinking · Comm on | Windows CE OS firmware failed or missing | Recoverable: reload the firmware with the Firmware Upgrade Wizard. |
| Fault on · Comm off | Fatal hardware error | Hardware fault in the logic module (700…1500) or the terminal's logic board (400/600). |
| Fault on · Comm blinking | Fatal hardware error in display | Hardware fault in the display module (700…1500) or the terminal's display section (400/600). |
Where the manual's only remedy for a code is to replace the unit or module, the code is pointing at a hardware fault inside that part. Those are the faults NJT Automation repairs at component level, so a repair quote is usually the first thing to check before buying a replacement.
Source: Rockwell Automation publication 2711P-UM001, PanelView Plus Terminals User Manual. Codes are listed as documented; fault behaviour can vary by firmware revision, so confirm against the manual for your unit's series.
