Allen-Bradley 1761-L32BWA MicroLogix 1000 32-point, 120/240V AC

Allen-Bradley 1761-L32BWA MicroLogix 1000 fixed-I/O controller, 20 × 24V DC (sink/source) inputs, 12 × relay outputs, 120/240V AC powered. NJT Automation sources the 1761-L32BWA on request; send the part number for a replacement or repair quote.

Quote required. Request a quote below for pricing and delivery.

Allen-Bradley 1761-L32BWA MicroLogix 1000 32-point controller, 32-point, 120/240V AC (1 of 7)

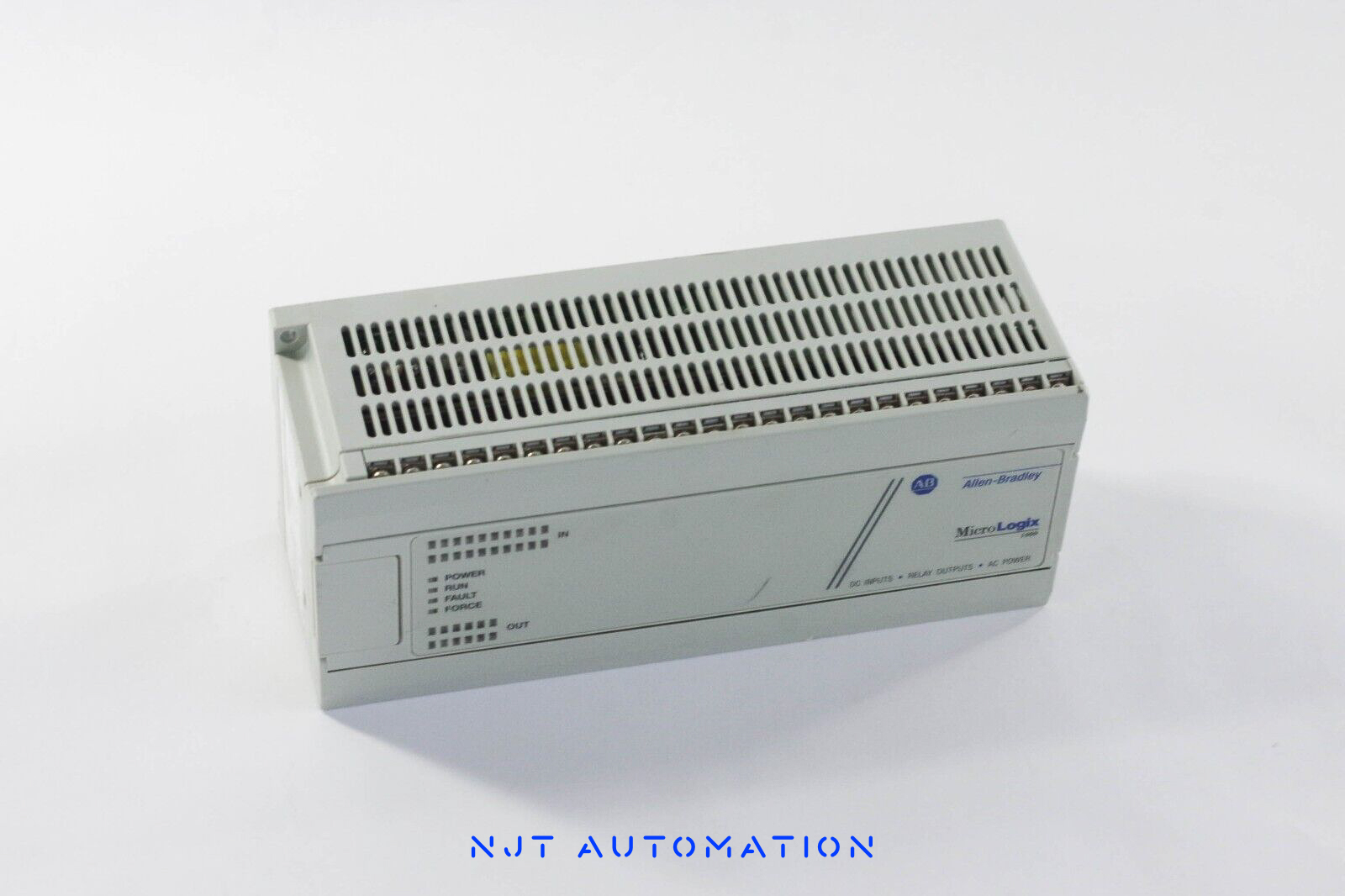

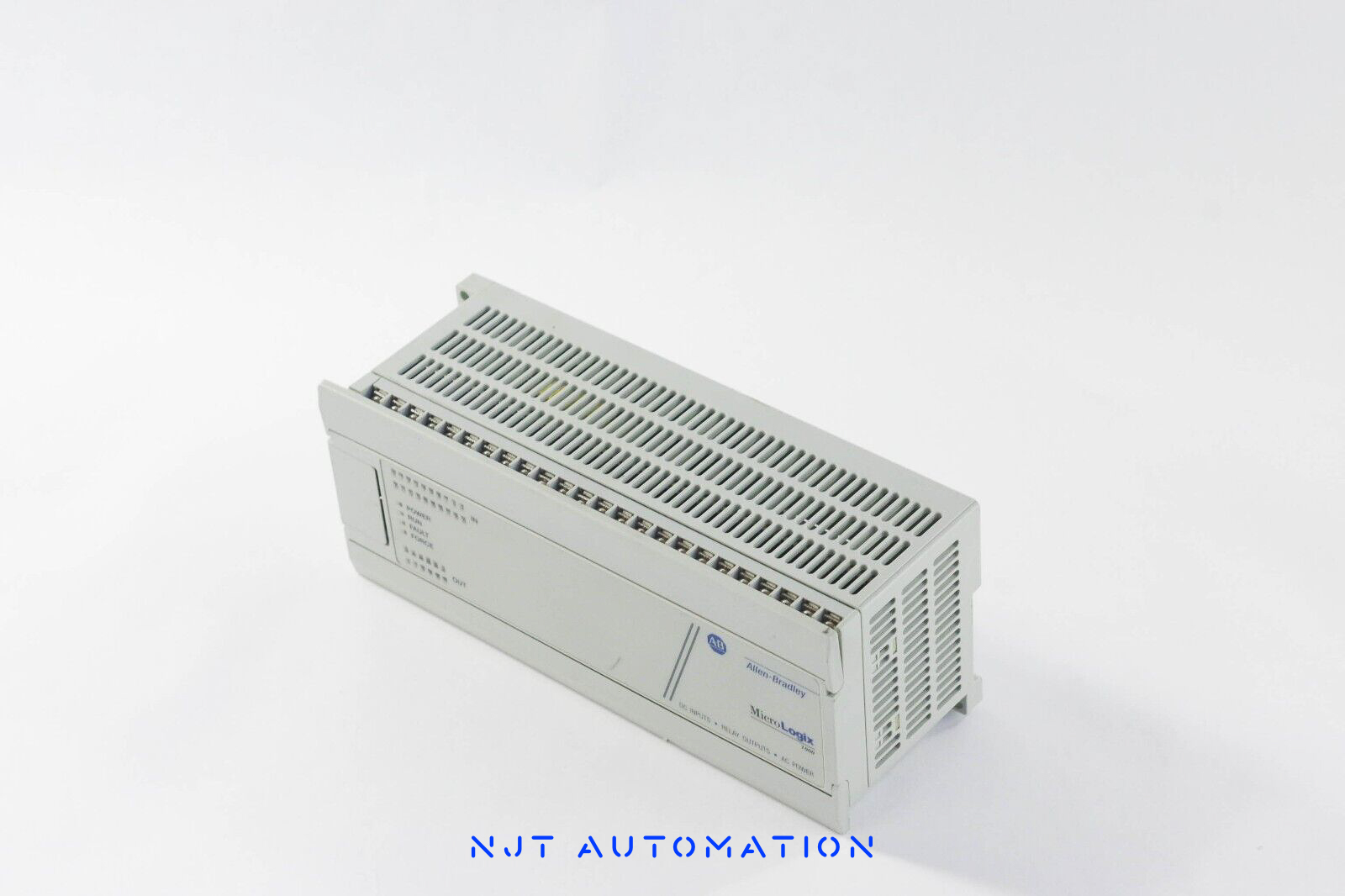

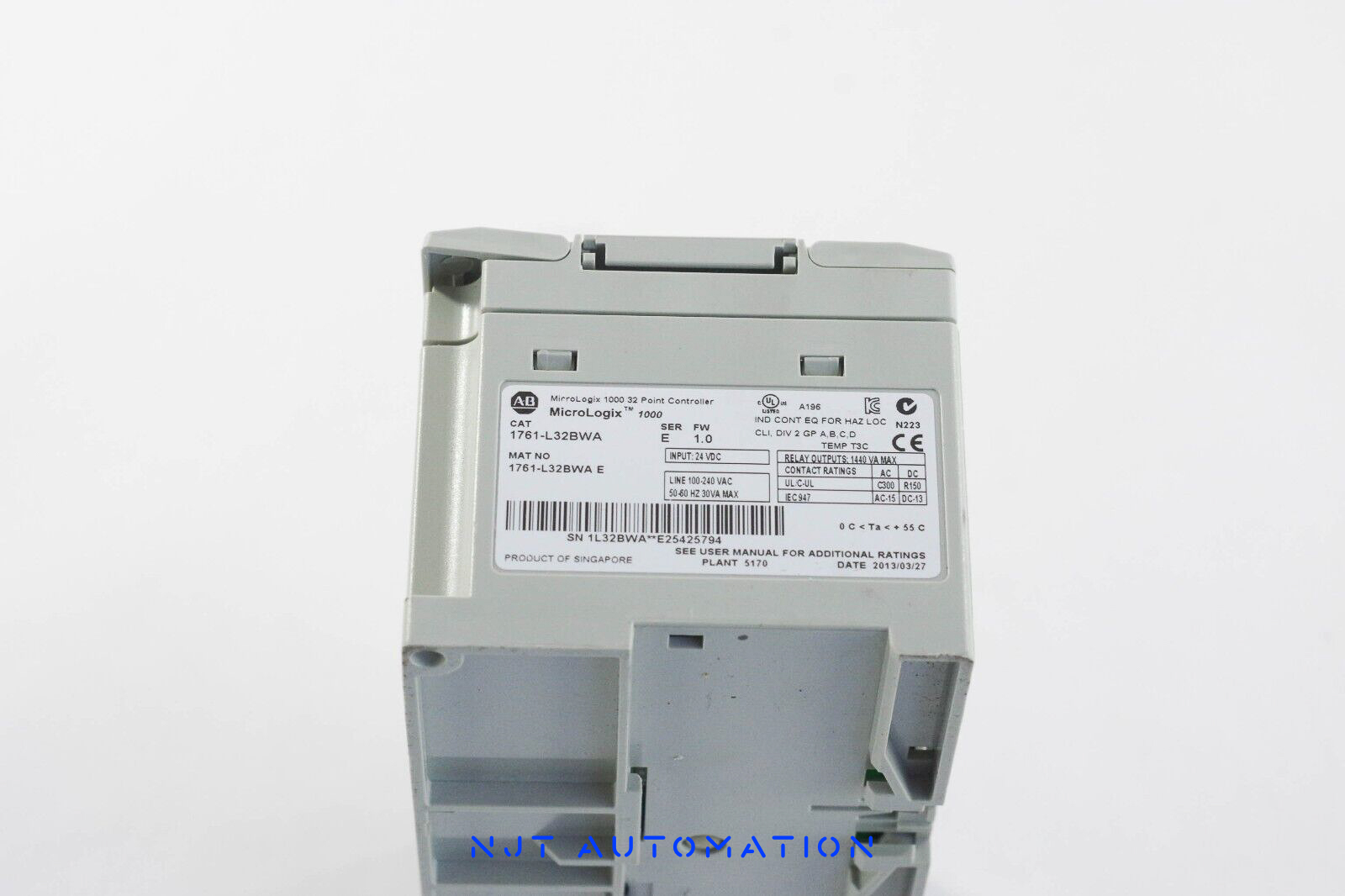

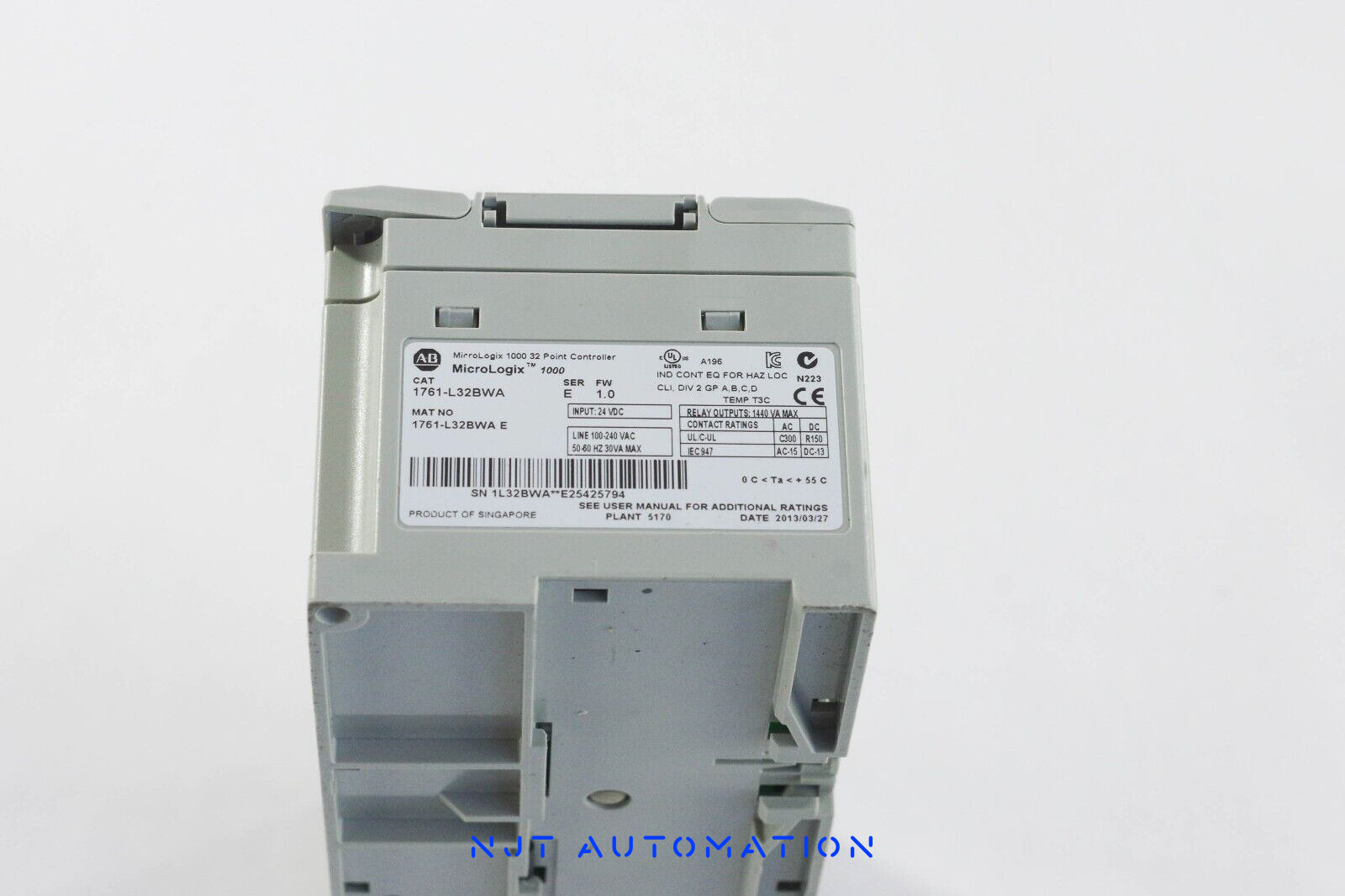

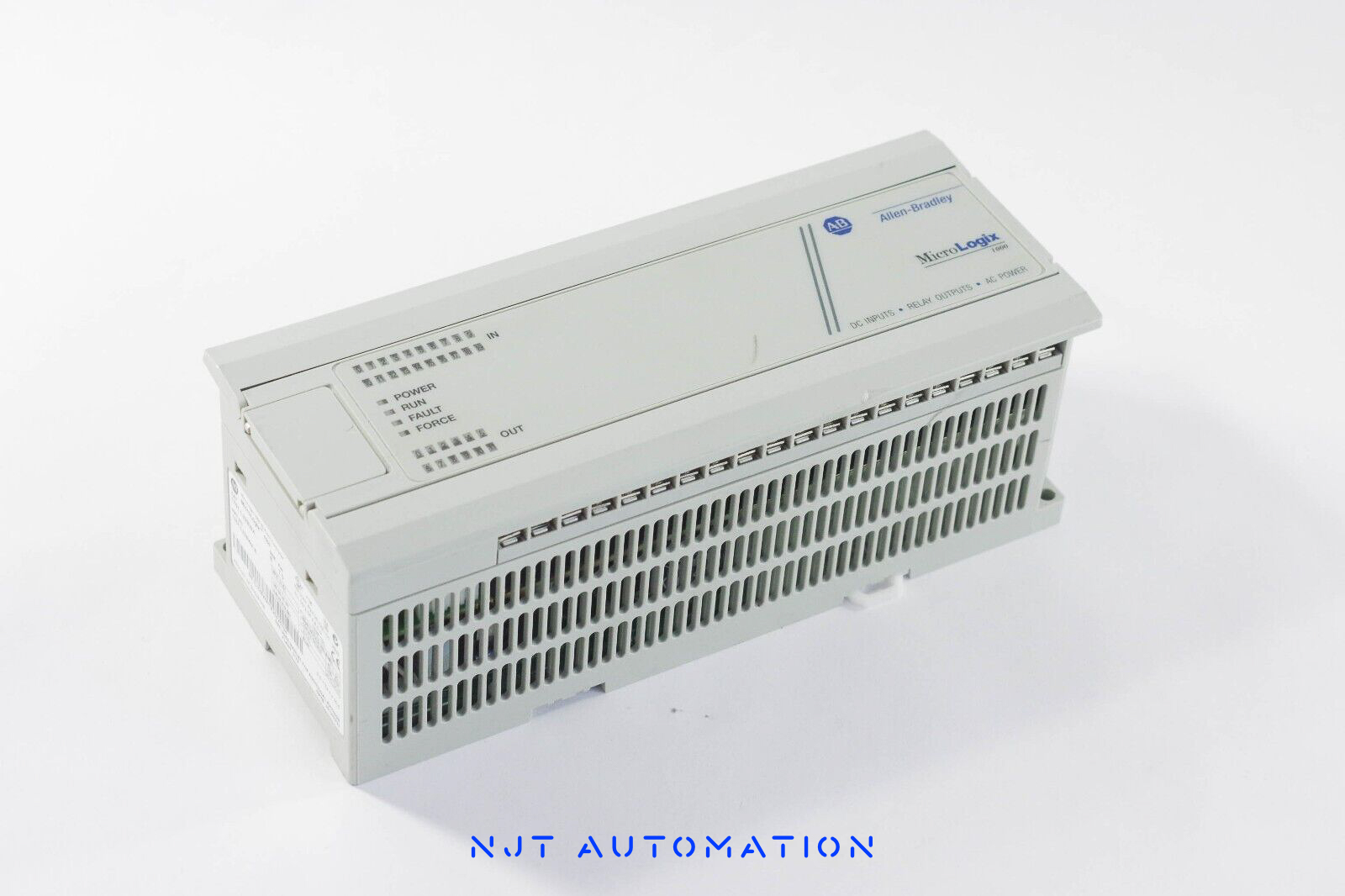

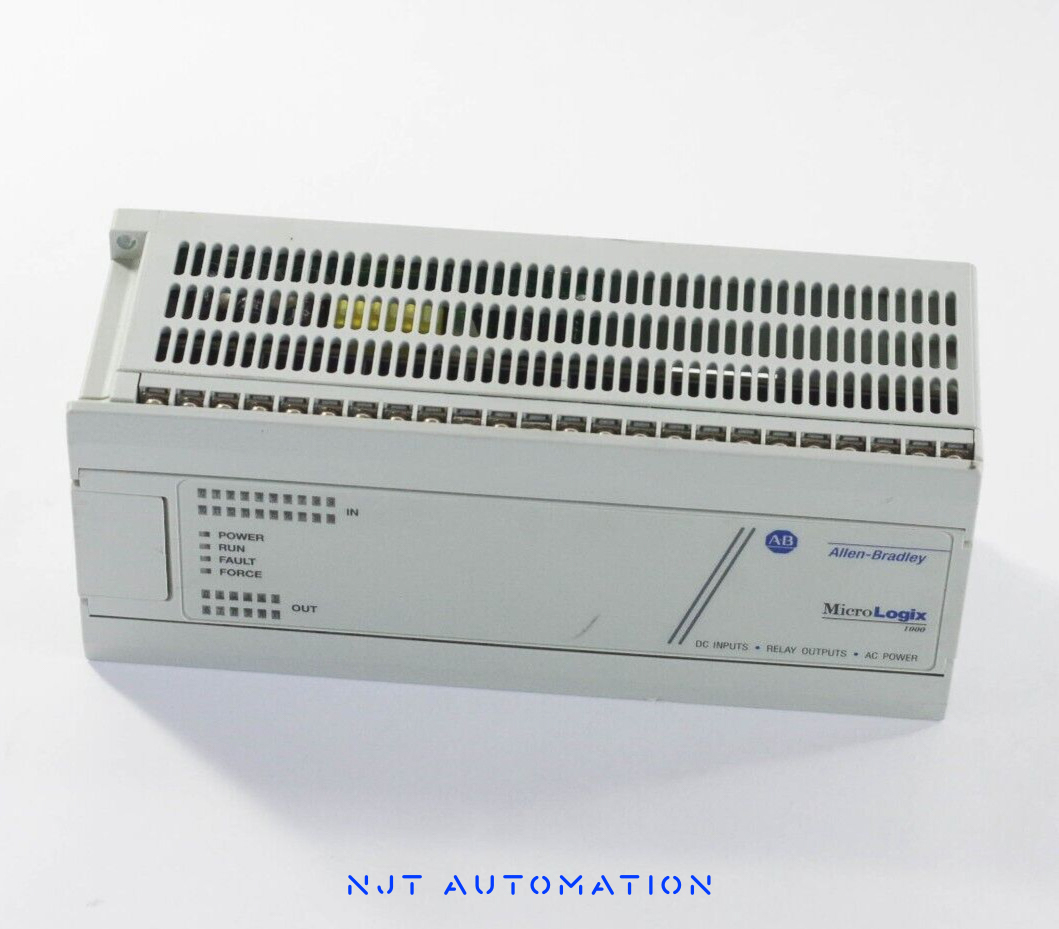

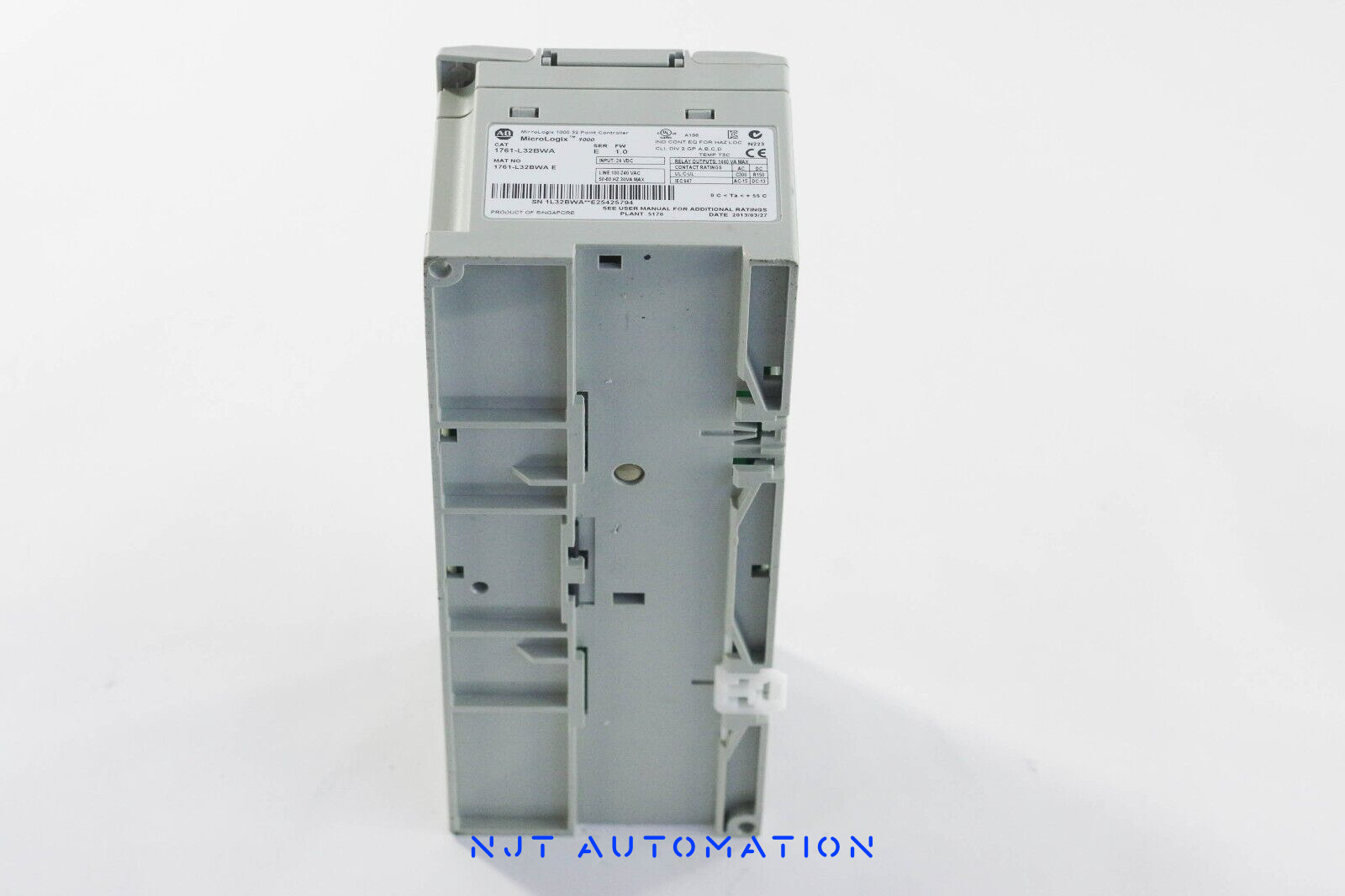

Actual NJT inventory photos

Request Replacement Quote Request Repair Quote

Part Number	1761-L32BWA
Price	On Request Previously sold for $124.99 - $199.99 USDAvailability and condition determine final quote.
Description	MicroLogix 1000 32-point controller, 32-point, 120/240V AC.
Shipping	UPS Ground included \| Next-Day Air and Worldwide Shipping available at checkout
Warranty	1-year full-function warranty provided by NJT Automation. Warranty details Included 1 year, full-function 2 years +15% of product price ($30.00) 3 years +25% of product price ($50.00) View full warranty policy
Returns	90-day free returns. View return policy
Exchange	Send us your defective 1761-L32BWA after your purchase for a 10% core credit. We also purchase old or damaged parts outright.

Availability

Sourced on request

We do not have a 1761-L32BWA on the shelf right now. We can source one through our supplier network; request a quote and we confirm availability, price and lead time before you commit.

Sourcing

Sourced through our Level 1 network of vetted US suppliers. Each unit is checked before it ships and carries the same NJT warranty and return policy as our own stock. Quotes within one hour during business hours; typical delivery 3–5 business days, next-day air available. Sourced parts are not available for local pickup.

Request Quote How Level 1 sourcing works

Part Number Decoder

MicroLogix 1000 32-point controller

1761L32BWA

1761: BulletinMicroLogix 1000: Allen-Bradley's original fixed-I/O micro PLC (1 KB user memory, RS-232 DF1/DH-485 via 1761-NET-AIC), programmed with RSLogix 500 / Micro.
L32: I/O count32-point controller: 20 inputs and 12 outputs built in (no expansion I/O).
B: Input type24V DC (sink/source) discrete inputs.
W: Output typeRelay discrete outputs.
A: Power120/240V AC controller power supply.

Decoded from the Rockwell Automation catalog-number structure. Series and firmware revision are printed on the product label, not encoded here.

Intended Use

Intended for basic standalone machine control applications. MicroLogix 1000 controllers handle simple machines, pump and fan starts, small conveyors and relay-replacement jobs at a fixed point count with a single RS-232 port.

Migration Path

Rockwell Automation has discontinued the MicroLogix 1000. Published successor for the MicroLogix 1000: Micro820 (2080-LC20) or Micro850 (2080-L50E), matched on I/O count and output type.

Connected Components Workbench's RSLogix 500 program converter imports the MicroLogix program into a Micro800 project.
Wiring, mounting and the DF1 serial port differ; Micro800 controllers are programmed and networked over Ethernet or USB.

A like-for-like replacement or a repair keeps the existing program, wiring and panel layout; a migration is a project. Both are listed on this page so the choice can be made on lead time and budget.

Physical Data

Weight and DimensionsEst. weight0.71 lb (0.32 kg)H × W × D3.1 × 7.9 × 1.6 in. (80 × 200 × 40 mm)

Estimated Weight	0.32 kg (0.71 lb) Estimated from the product dimensions and typical density for this product type
Dimensions (H × W × D)	80 × 200 × 40 mm (3.1 × 7.9 × 1.6 in.) MicroLogix 1000 controller; AC-input units are 133 mm wide and 73 mm deep
Shipping Weight	0.92 kg (2.03 lb) Estimated: unit weight plus box and packing material; bills as 3 lb
Shipping Box (L × W × H)	14 × 12 × 8 in. (356 × 305 × 203 mm) Smallest standard box fitting the product with 3 in. cushioning per side

Product dimensions are typical manufacturer-published values and may differ by series or option. Unit weight is an estimate; no published figure is available for this catalog number. Shipping box and weight are estimates for freight planning; the packed unit may ship in a different box.

Similar Part Numbers

1761-L10BWA I/O count: 10-point controller
1761-L10BWB I/O count: 10-point controller; Power: 24V DC controller power supply

Previously sold 1761-L32BWA

5 sold

NJT Automation has supplied and shipped 5 1761-L32BWA MicroLogix 1000 32-point controllers since 2024; request a quote and we will source another from our supplier network.

Sold: 5 since 2024

Sold

Allen Bradley 1761-L32BWA Micrologix 1000 Ser E FRN 1.0 1761L32BWA

$199.99 USD

Used

Request Quote

Sold

Allen Bradley 1761-L32BWA MicroLogix 1000 PLC 120/240VAC 20 In 12 Out 1761L32BWA

$199.99 USD

Used

Request Quote

Sold

Allen Bradley 1761-L32BWA Ser E MicroLogix 1000 PLC 20 In 12 Out 120/240VAC

$199.99 USD

Used

Request Quote

Sold

Allen Bradley 1761-L32BWA /E Micrologix 1000 Programmable Logic Controller

$199.99 USD

Used

Request Quote

Still have questions?

Find answers to shipping, warranties, repairs, and more.

Frequently Asked Questions

What is the 1761-L32BWA?

The Allen-Bradley 1761-L32BWA is a MicroLogix 1000 fixed-I/O controller, 20 × 24V DC (sink/source) inputs, 12 × relay outputs, 120/240V AC powered.

What condition is it in?

The 1761-L32BWA may be available on request in Unused surplus / Refurbished / Used condition. We can quote this part in unused surplus, refurbished, or used condition depending on availability and your preference. Specify your requirement in the RFQ.

How much does it cost?

At NJT Automation, 5 1761-L32BWA MicroLogix 1000 32-point controllers have sold since 2024 for $125 – $200, with a median of $200. None are in stock at the moment; request a quote for current pricing.

When does this part ship?

The 1761-L32BWA is sourced on request. Request a quote and we'll confirm availability and lead time, typically a few business days.

What power input does it require?

120/240V AC controller power supply.

How many I/O points does it have?

32-point controller: 20 inputs and 12 outputs built in (no expansion I/O).
