Allen-Bradley MicroLogix 1000 Parts
PLC • 28 parts available
MicroLogix 1000 is an older fixed I/O PLC still found on legacy machines. Parts here support keep-running maintenance when upgrades are not yet funded. Need repair? We offer PLC repair services.
Featured MicroLogix 1000 in stock
High-value Milwaukee inventory matched to this product line.
| Part Number | Description |
|---|---|
| 1761-L10BWA | Allen Bradley 1761-L10BWA Ser E MicroLogix 1000 PLC 6 In 24VDC 4 Relay Out · Used · $129.99 USD |
| 1761-L10BWB | Allen Bradley 1761-L10BWB /F FW 1.1 MicroLogix 1000 PLC Controller 1761L10BWB · Used · $199.99 USD |
| 1761-L32BWA | Allen Bradley 1761-L32BWA Ser E MicroLogix 1000 PLC 20 In 12 Out 120/240VAC · Used · $199.99 USD |
| 1761-NET-ENI | Allen Bradley 1761-NET-ENI /D MicroLogix Ethernet Interface Module 1761NETENI · Used · $199.99 USD |
| 1761-CBL-AM00 | PLC Cable Assembly Connects Controller to Interface |
| 1761-CBL-AP00 | PLC Cable Assembly Connects Controller to Interface |
| 1761-CBL-HM02 | PLC Cable Assembly Operating/Programming Cable |
| 1761-CBL-PM02 | Operating/Programming Cable 8-Pin Mini DIN to 9-Pin D Shell, RS-232, 2 m (6.5 ft) |
| 1761-HHM-K64 | Rockwell Automation - 1761-HHM-K64 |
| 1761-HHP-B30 | 1761-HHP-B30 Hand Held Programmer for MicroLogix 1000 |
| 1761-L10BXB | Programmable Logic Controller 10 I/O 24VDC 5W 24VDC |
| 1761-L16AWA | Programmable Logic Controller 16 I/O 120VAC 7W 120VAC 8W 240VAC |
| 1761-L16BBB | Programmable Logic Controller 16 I/O 24VDC 5W 24VDC |
| 1761-L16BWA | MicroLogix 1000 Controller, 120/240V AC Power, (10) 24 VDC Digital Inputs, (6) Relay Outputs |
| 1761-L16BWB | MicroLogix 1000, 24VDC Power, 10 Point 24VDC Digital Inputs, 6 Relay Outputs |
| 1761-L16NWA | MicroLogix 1000, 120/240V ac power, (10) 24V ac or dc digital inputs, (6) relay outputs |
| 1761-L20AWA-5A | Programmable Logic Controller 25 I/O 120/240VAC 12W 120VAC 13W 240VAC |
| 1761-L20BWA-5A | Programmable Logic Controller 25 I/O 120/240VAC 18W 120VAC 19W 240VAC |
| 1761-L20BWB-5A | Programmable Logic Controller 25 I/O 24VDC 7W 24VDC |
| 1761-L32AAA | Programmable Logic Controller 32 I/O 120/240VAC 7W 120VAC 9W 240VAC |
| 1761-L32AWA | MicroLogix 1000, 32 I/O, 120/240V AC Power, (20) 120V AC Digital Inputs, (12) Relay Outputs |
| 1761-L32BBB | Programmable Logic Controller 32 I/O 24VDC 7W 24VDC |
| 1761-L32BWB | MicroLogix 1000, 24V DC Power, (20) 24V DC Digital Inputs, (12) Relay Outputs |
| 1761-L61 | MicroLogix 1500 Processor, 1K Data/Program Memory, 24V DC Power |
| 1761-NET | Network Interface Module for MicroLogix, RS-232/RS-485 Communication |
| 1761-NET-AIC | Communication Programming Device/Operator Interface Converter Powered Through a DH-485 Device |
| 1761-NET-DNI | DeviceNet Interface Module for SLC 500, MicroLogix and CompactLogix |

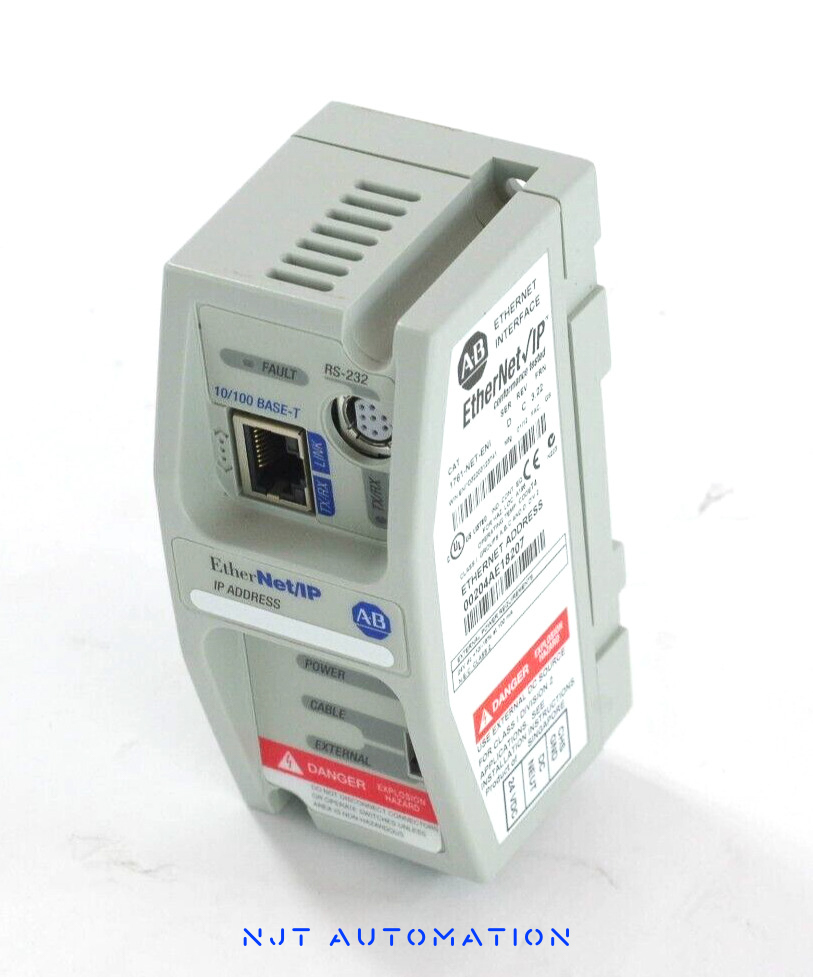

| 1761-NET-ENIW | EtherNet Interface Module with Web-server |
MicroLogix 1000 buying & repair guidance
When ordering or requesting a quote, include the full catalog string from the unit's nameplate. Series and revision letters affect fit, firmware, and application compatibility.
Common MicroLogix 1000 failures
- Failed or welded output relays on high-cycle machines
- Power supply section failures leaving a dead unit
- Worn or failed RS-232 communication ports
- Corrupted programs after power events
Series & revision differences
Catalog numbers encode I/O count and supply voltage. Match the exact 1761 catalog when possible.
Repair or replace?
Repair extends life on legacy skids. Plan replacement to Micro800/CompactLogix when spare availability or application growth requires it.
Still have questions?
Find answers to shipping, warranties, repairs, and more.
Frequently Asked Questions
Do you stock Allen-Bradley MicroLogix 1000 parts?
Yes. NJT Automation maintains surplus and refurbished MicroLogix 1000 inventory in Milwaukee, with additional sourcing when a specific catalog number is not on the shelf. In-stock items above can ship the same business day when ordered by the cutoff.
Can you repair MicroLogix 1000 PLC hardware?
In most cases, yes. We offer mail-in repair with testing and a 1-year warranty, with 2- and 3-year extended options available. Send photos and the catalog/series from the nameplate for a repair quote, often faster than waiting on obsolete new stock.
What if my exact series letter is not listed?
Request a quote with the full catalog string and series from the nameplate. We can confirm whether a nearby series is compatible or source the exact revision you need.
How fast can MicroLogix 1000 parts ship?
In-stock Milwaukee inventory typically ships the same business day when ordered before the cutoff, with ground and expedited options. Local pickup can be arranged. Contact us to schedule.
