Allen-Bradley 1763-L16AWA MicroLogix – Ready to Ship / Pick Up

In stock: 1763-L16AWA MicroLogix 1100 controller, 10 × 120V AC inputs, 6 relay outputs, 2 analog inputs (0…10V), 120/240V AC powered. NJT Automation has 1 unit available in Milwaukee, WI, ready to ship or available for local pickup. Includes a one-year full-function warranty.

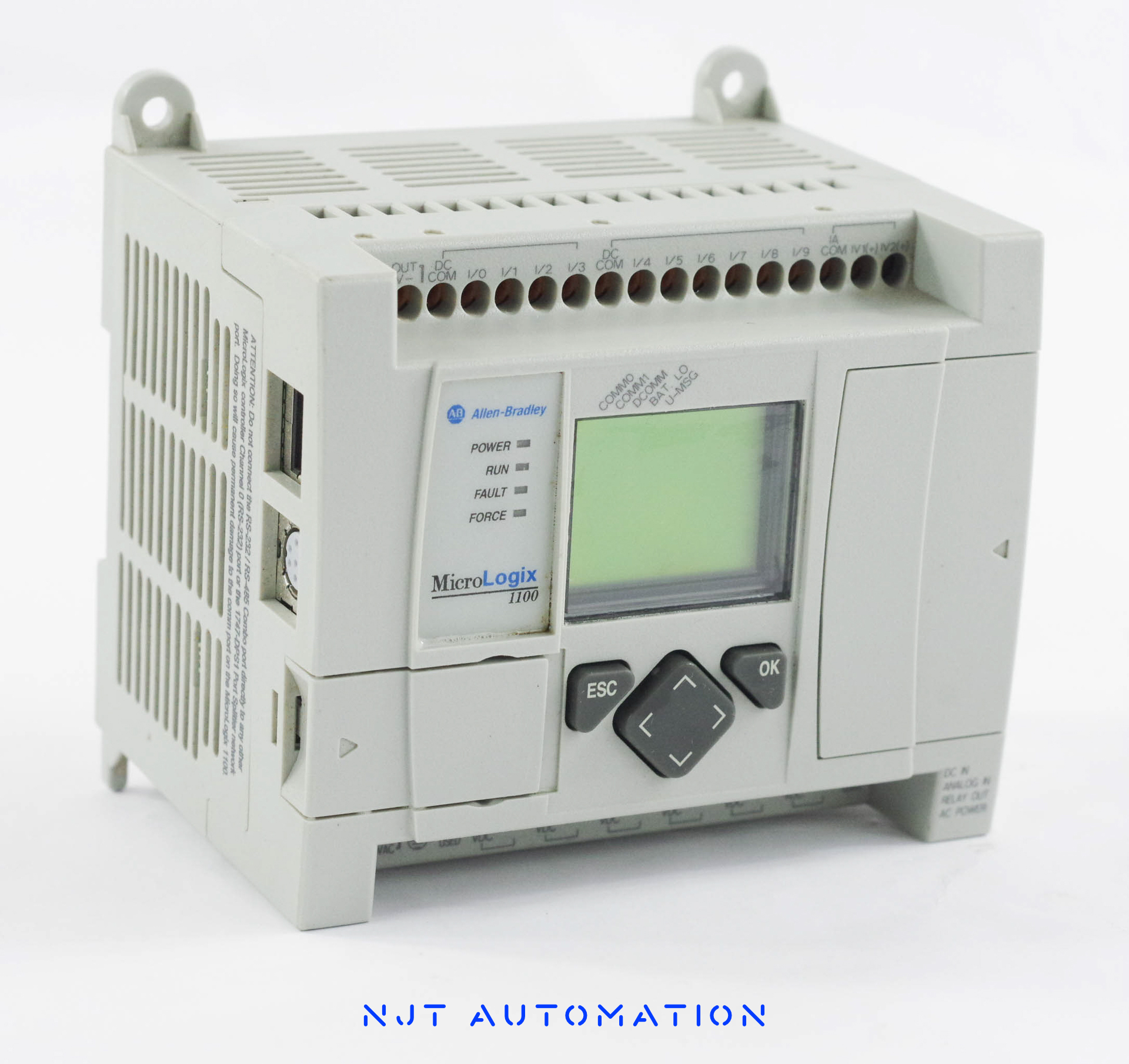

Allen-Bradley 1763-L16AWA MicroLogix 1100 controller, 16-point, 120/240V AC – front view

Allen-Bradley 1763-L16AWA MicroLogix 1100 controller, 16-point, 120/240V AC – front view

$1,049.99USD

Request Repair QuoteEstimated $1,440.00

Part Number	1763-L16AWA
Description	MicroLogix 1100 controller, 16-point, 120/240V AC. In stock in used condition, Series B.
Shipping	Ships today UPS Ground included \| Next-Day Air and Worldwide Shipping available at checkout
Pickup	Free local pickup at 2122 N Prospect Ave. Call ahead at (414) 331-5954.
Warranty	1-year full-function warranty provided by NJT Automation. Warranty details Included 1 year, full-function 2 years +15% of product price ($157.50) 3 years +25% of product price ($262.50) View full warranty policy
Returns	90-day free returns. View return policy
Exchange	Send us your defective 1763-L16AWA after your purchase for a 10% core credit ($105). We also purchase old or damaged parts outright.

Replacement Options for 1763-L16AWA

In stock and ready to ship today

Allen-Bradley 1763-L16AWA Used - Buy 1763-L16AWA replacement | NJT Automation

Allen-Bradley 1763-L16AWA Used - alternate view

Allen Bradley 1763-L16AWA Ser B MicroLogix 1100 PLC 120/240V AC 1763L16AWA

$1,049.99 USDIn-stock match

Condition: Used

Series B

1 in stock

Availability

Similar Match Available

A similar unit is in stock and ready to ship once you confirm the condition you need.

Variants

Part NumberConditionSeriesQtyPrice

1763-L16AWA /BUsedSeries B1$1,049.99 USD

1763-L16AWARefurbishedSeries needed—Request Quote

Repairs

1763-L16AWA Mail-In Repair Service

Estimated: $1,440.00

Part Number Decoder

MicroLogix 1100 controller

1763L16AWA

MicroLogix 1100 controller, 10 × 120V AC inputs, 6 relay outputs, 2 analog inputs (0…10V), 120/240V AC powered, embedded EtherNet/IP and RS-232/485 ports with built-in LCD.

1763: BulletinMicroLogix 1100: micro PLC with 8 KB memory (4 KB program + 4 KB data), embedded 10/100 EtherNet/IP port, isolated RS-232/485 combo port, built-in LCD, on-line editing and up to 4 × 1762 expansion modules.
L16: I/O count16-point controller: 10 discrete inputs and 6 discrete outputs built in, plus 2 embedded analog inputs.
A: Input type120V AC discrete inputs.
W: Output typeRelay discrete outputs.
A: Power120/240V AC controller power supply.

Decoded from the Rockwell Automation catalog-number structure. Series and firmware revision are printed on the product label, not encoded here.

Physical Data

Weight and DimensionsWeight1.98 lb (0.90 kg)H × W × D3.5 × 4.3 × 3.4 in. (90 × 110 × 87 mm)

Weight	0.90 kg (1.98 lb) Typical unit weight
Dimensions (H × W × D)	90 × 110 × 87 mm (3.5 × 4.3 × 3.4 in.) MicroLogix 1100 controller
Shipping Weight	1.62 kg (3.57 lb) Estimated: unit weight plus box and packing material; bills as 4 lb
Shipping Box (L × W × H)	14 × 12 × 10 in. (356 × 305 × 254 mm) Smallest standard box fitting the product with 3 in. cushioning per side

Product weight and dimensions are typical manufacturer-published values and may differ by series or option. Shipping box and weight are estimates for freight planning; the packed unit may ship in a different box.

Datasheet

Datasheet available for download

Generated from product specifications; not an official Allen-Bradley datasheet. For an official datasheet, contact Allen-Bradley or an authorized distributor.

Similar Part Numbers

1763-L16BWA Input type: 24V DC discrete inputs

Allen Bradley Information

Technical Description

MicroLogix 1100 controller, 10 × 120V AC inputs, 6 relay outputs, 2 analog inputs (0…10V), 120/240V AC powered, embedded EtherNet/IP and RS-232/485 ports with built-in LCD.

Lifecycle: Active. Verify current status with the manufacturer.

Alternate Part Numbers

1763L16AWA

Category

UPC / GTIN

662074023028

Part Number

1763-L16AWA

Manufacturer

Allen-Bradley

Can the 1763-L16AWA be repaired?

Yes. NJT Automation offers mail-in repair for the 1763-L16AWA, including diagnostic evaluation, component-level repair, and functional testing.

NJT Managed Repair

One vendor. One warranty. NJT manages the entire process.

1-year full-function NJT warranty, with 2- and 3-year options available
Rush service available for production-critical repairs
No evaluation or diagnostic charges
No repair, no charge
"Unrepairable" is not an option
Pre-paid UPS shipping label provided for sending your unit in
$650 minimum repair charge, shipping included both ways

Get an NJT Repair Quote

Looking for another option? For lower-cost repairs or if you prefer to work directly with an independent repair specialist, compare bids through RepairMode. RepairMode providers operate independently and set their own pricing and warranty terms.

Find a PLC repair specialiston RepairMode.com ↗

Common 1763-L16AWA failures

Failure patterns we regularly see on MicroLogix 1100 controller hardware like the 1763-L16AWA:

Program lost after a power event
Power supply section failure leaving a dead unit
Embedded Ethernet port dead or dropping connections
LCD blank, garbled or unresponsive keypad
Output relays welded or burned on high-cycle machines (-BWA / -AWA)

Repair or replace?

ReplaceReplace the 1763-L16AWA if it will not boot, shows a solid red fault light, or has lost its program. Another MicroLogix 1100 controller takes the same program: download it, match the firmware, and the line is running again. Order the exact 1763-L16AWA. The catalog number sets the 16-point density and 120/240V AC rating, and a different suffix changes one of them. The 1763-L16AWA is on our shelf now and ships the same day for orders placed before 5:00 PM Central.

RepairRepair the 1763-L16AWA when the fault is in the power section, a port or the status display rather than the processor core, or when the controller carries a firmware revision or validated project you cannot easily re-flash onto a different unit. The two 1763-L16AWA symptoms we see most often are “Embedded Ethernet port dead or dropping connections” and “LCD blank, garbled or unresponsive keypad”. If a replacement is already installed, repairing the failed 1763-L16AWA gives you a tested spare on the shelf for the next failure. The 1763-L16AWA repair is estimated $1,440.00, function-tested before return and covered by a 1-year warranty.

Functional test video

Bench test from a completed 1763-L16AWA repair.

RepairMode test video for 1763-L16AWA

Request a Repair Quote

Text photos of the faulty unit and the symptoms to (414) 331-5954.

Start Your Repair Today

Related services:All Repair Services

All product photos were taken by NJT Automation. Test videos originated from either NJT Automation internally or from repair technicians within our network.

Still have questions?

Find answers to shipping, warranties, repairs, and more.

Frequently Asked Questions

What is the 1763-L16AWA?

The Allen-Bradley 1763-L16AWA is a MicroLogix 1100 controller, 10 × 120V AC inputs, 6 relay outputs, 2 analog inputs (0…10V), 120/240V AC powered, embedded EtherNet/IP and RS-232/485 ports with built-in LCD.

What condition is the 1763-L16AWA in?

NJT Automation currently has 1 unit of the 1763-L16AWA in stock in used condition (Series B). Each listing states its own condition and series. Clean used pull with full functionality. Minimal cosmetic wear and backed by our 1-year warranty.

When does this part ship?

NJT Automation has 1 unit of the 1763-L16AWA MicroLogix 1100 controller on the shelf in Milwaukee, WI, priced from $1,049.99. Orders placed before 5:00 PM Central on business days ship the same day; orders placed after the cutoff ship the next business day.

Can you ship this next-day air?

Yes. UPS Next Day Air is available at checkout for the 1763-L16AWA MicroLogix 1100 controller. Place your order before 5:00 PM Central on a business day and your in-stock item ships the same day for next-business-day delivery.

Can I pick this item up locally?

Yes. Free local pickup is available for the 1 in-stock 1763-L16AWA unit at NJT Automation, 2122 N Prospect Ave, Milwaukee, WI, during business hours. Contact us to arrange a pickup time.

What power input does the 1763-L16AWA require?

120/240V AC controller power supply.

How many I/O points does the 1763-L16AWA have?

16-point controller: 10 discrete inputs and 6 discrete outputs built in, plus 2 embedded analog inputs.
