Allen-Bradley 1769-L36ERM CompactLogix Processor 3 MB – Repair Service Available
Allen-Bradley 1769-L36ERM CompactLogix 5370 L3 controller, 3 MB user memory, dual EtherNet/IP ports, 48 nodes, 30 Compact I/O (1769) modules in 3 banks. NJT Automation offers mail-in repair for the 1769-L36ERM with a 1-year warranty; replacement pricing is available on request.
Mail-in repair available now. Returned with a 1-year warranty. Replacement pricing on request.

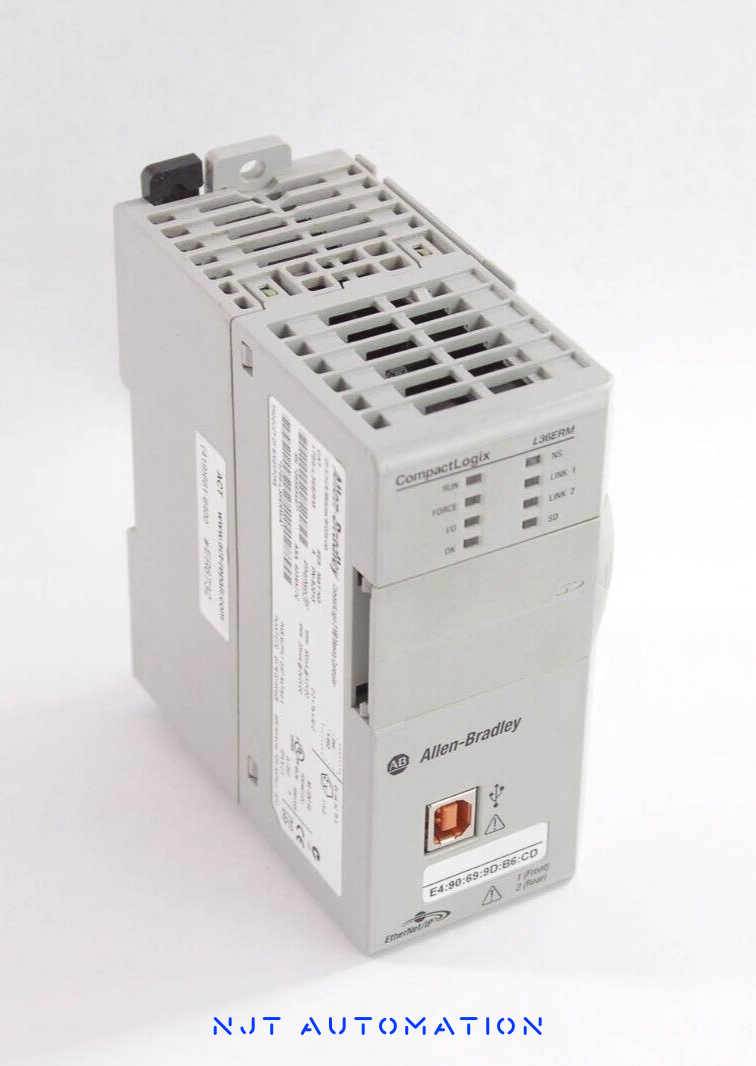

Actual NJT inventory photos
| Part Number | 1769-L36ERM |
| Price | On Request Previously sold for $1,099.99 - $1,999.99 USDAvailability and condition determine final quote. |
| Description | CompactLogix 5370 L3 controller, 3 MB. |
| Shipping |
|
| Warranty | 1-year full-function warranty provided by NJT Automation. Warranty details
|
| Returns | 90-day free returns. View return policy |
| Exchange | Send us your defective 1769-L36ERM after your purchase for a 10% core credit. We also purchase old or damaged parts outright. |
| Availability | Sourced on request We do not have a 1769-L36ERM on the shelf right now. We can source one through our supplier network; request a quote and we confirm availability, price and lead time before you commit. | ||||||||||||||||||||||
| Sourcing | Sourced through our Level 1 network of vetted US suppliers. Each unit is checked before it ships and carries the same NJT warranty and return policy as our own stock. Quotes within one hour during business hours; typical delivery 3–5 business days, next-day air available. Sourced parts are not available for local pickup. | ||||||||||||||||||||||
| Repairs | 1769-L36ERM Mail-In Repair ServiceEstimated: $1,440.00 | ||||||||||||||||||||||
Part Number Decoder | CompactLogix 5370 L3 controller 1769L36ERM48
Decoded from the Rockwell Automation catalog-number structure. Series and firmware revision are printed on the product label, not encoded here. | ||||||||||||||||||||||
Series & Revisions | No series in stock today; request a series above. Series notes: Logix keys on catalog number and firmware revision, not series; with the default Compatible Module keying, any series of the same catalog number is accepted in the slot. | ||||||||||||||||||||||
Intended Use | Intended for machine-level control applications. CompactLogix controllers run packaging machines, palletizers, conveyors, material handling, small process skids and OEM equipment where a mid-size Logix controller with local I/O fits in the machine panel and programs in Studio 5000 like the rest of the plant. | ||||||||||||||||||||||
Physical Data | Weight and DimensionsWeight1.46 lb (0.66 kg)
Product weight are typical manufacturer-published values and may differ by series or option. Shipping box and weight are estimates for freight planning; the packed unit may ship in a different box. | ||||||||||||||||||||||
Allen Bradley Information | Technical Specifications10 parameters from manufacturer-published specifications
Typical manufacturer-published values for this catalog number; confirm against the current manufacturer documentation before specifying. | ||||||||||||||||||||||
| Category | CompactLogix | ||||||||||||||||||||||
| Part Number | 1769-L36ERM | ||||||||||||||||||||||
| Manufacturer | Allen-Bradley | ||||||||||||||||||||||
Previously sold 1769-L36ERM
5 sold · +4 on eBayNJT Automation has supplied and shipped 5 1769-L36ERM CompactLogix 5370 L3 controllers since 2024; request a quote and we will source another from our supplier network.
- Sold
- 5 since 2024
- Series
- A × 5
Image gallery43 PHOTOSActual units photographed by NJT
Can the 1769-L36ERM be repaired?
Yes. NJT Automation repairs the 1769-L36ERM by mail-in: diagnostic evaluation, component-level repair and a functional test, backed by a 1-year full-function warranty.
Option 1
NJT managed repair
- Evaluation
- Free. No repair, no charge.
- Shipping
- Prepaid UPS label both ways.
- Pricing
- $650 minimum. Rush service available.
- Warranty
- 1-year full-function warranty included; 2- and 3-year options.
Option 2
Independent repair bids. Compare quotes from independent repair technicians. Post your repair on RepairMode to receive competitive bids from experienced technicians. Each technician sets their own pricing and warranty.
Common Failures
Failure patterns we regularly see on CompactLogix 5370 L3 controller hardware like the 1769-L36ERM:
- Embedded Ethernet port failure or dropped connections on -E / -ER controllers
- Solid red OK LED (nonrecoverable major fault) at power-up
- Program lost on power cycle: battery (1769-BA) depleted, BAT LED red or flashing
- 1769 bus faults from a worn local-bus connector or a missing end cap
- Channel 0 RS-232 port damaged by a hot-plugged programming cable
Fault code reference
1769-L36ERM Fault Codes
42 codes · 1756-RD001
Fault codes a CompactLogix 5370 L3 controller reports on the Major Faults tab in Studio 5000 Logix Designer / RSLogix 5000 as Type:Code (T:C), as documented in Rockwell Automation publication 1756-RD001. Use them to narrow a problem down to the unit, its wiring or the application before sending it in for repair.
| Code | Fault | What it indicates |
|---|---|---|
| T01:C01 | Power-up fault | Power was lost and restored while the controller was in RUN mode. |
| T01:C16 | Power-up fault | I/O communications configuration fault detected at power-up. |
| T01:C40 | Power-up fault | Energy storage module or battery failed during the last power-down; retained data may be lost. |
| T01:C60 | Power-up fault | Non-recoverable fault. The controller must be reflashed or returned for repair. |
| T01:C61 | Power-up fault | Non-recoverable fault with saved diagnostic information. |
| T01:C62 | Power-up fault | Non-recoverable fault with saved diagnostic information and stored user program. |
| T03:C16 | I/O fault | An I/O module connection failed on a module marked as required. |
| T03:C20 | I/O fault | Unable to read ControlBus chassis information; the chassis may be bad. |
| T03:C21 | I/O fault | Unable to read ControlBus chassis information; the chassis may be bad. |
| T03:C23 | I/O fault | At least one required connection was not established before going into RUN mode. |
Show 32 more codes
| T04:C16 | Program fault | Unknown instruction encountered. |
| T04:C20 | Program fault | Array subscript too large, or CONTROL data type POS or LEN invalid. |
| T04:C21 | Program fault | CONTROL data type LEN or POS less than 0. |
| T04:C24 | Program fault | Unknown data type passed to a subroutine. |
| T04:C31 | Program fault | JSR or RET did not pass as many parameters as expected. |
| T04:C34 | Program fault | A timer instruction had a negative value for its PRE or ACC. |
| T04:C42 | Program fault | JMP to a label that did not exist or was deleted. |
| T04:C82 | Program fault | Could not re-enter an executing SFC routine. |
| T04:C83 | Program fault | Value out of range. |
| T04:C84 | Program fault | Stack overflow: stack too small to perform the operation. |
| T04:C85 | Program fault | Invalid routine type. |
| T04:C89 | Program fault | Target step does not exist in the specified routine. |
| T04:C90 | Program fault | A safety instruction occurs outside a safety task. |
| T04:C91 | Program fault | Equipment phase instruction cannot be called from a program. |
| T04:C94 | Program fault | Nesting limits exceeded. |
| T04:C990–C999 | Program fault | User-defined major fault raised by the application. |
| T06:C01 | Watchdog fault | Task watchdog expired: an infinite loop, an over-complex program or a higher-priority task starved the task. |
| T07:C40 | Nonvolatile fault | Store to nonvolatile memory (CompactFlash / SD) failed. |
| T07:C41 | Nonvolatile fault | Load from nonvolatile memory failed: controller type mismatch. |
| T07:C42 | Nonvolatile fault | Load from nonvolatile memory failed: controller revision mismatch. |
| T07:C43 | Nonvolatile fault | Load from nonvolatile memory failed: bad checksum. |
| T07:C44 | Nonvolatile fault | Failed to restore processor memory. |
| T07:C50 | Nonvolatile fault | Security certificate invalid. |
| T08:C01 | Mode change fault | Mode change inhibited because a download is in progress. |
| T11:C01 | Motion fault | Actual position of the axis exceeded the positive overtravel limit. |
| T11:C02 | Motion fault | Actual position of the axis exceeded the negative overtravel limit. |
| T11:C03 | Motion fault | Actual position exceeded the position error tolerance. |
| T11:C04 | Motion fault | Encoder channel A, B or Z connection failed. |
| T11:C05 | Motion fault | Encoder noise event detected, or encoder signals not in quadrature. |
| T11:C06 | Motion fault | Drive fault reported by the servo drive. |
| T11:C07 | Motion fault | Synchronous connection to the servo module failed. |
| T11:C08 | Motion fault | Hardware failure in the servo module. |
Where the manual's only remedy for a code is to replace the unit or module, the code is pointing at a hardware fault inside that part. Those are the faults NJT Automation repairs at component level, so a repair quote is usually the first thing to check before buying a replacement.
Source: Rockwell Automation publication 1756-RD001, Logix 5000 Controller and I/O Fault Codes. Codes are listed as documented; fault behaviour can vary by firmware revision, so confirm against the manual for your unit's series.
