Allen-Bradley 2198-D006-ERS4 Kinetix 5500 Servo Drive 1.7 kW, 650V DC
Allen-Bradley 2198-D006-ERS4 Kinetix 5700 dual-axis inverter, 2.5 A rms / 1.7 kW per axis (480V), 458…747V DC bus, integrated safety with safe-stop / safe-monitoring. NJT Automation sources the 2198-D006-ERS4 on request; send the part number for a replacement or repair quote.
Quote required. Request a quote below for pricing and delivery.

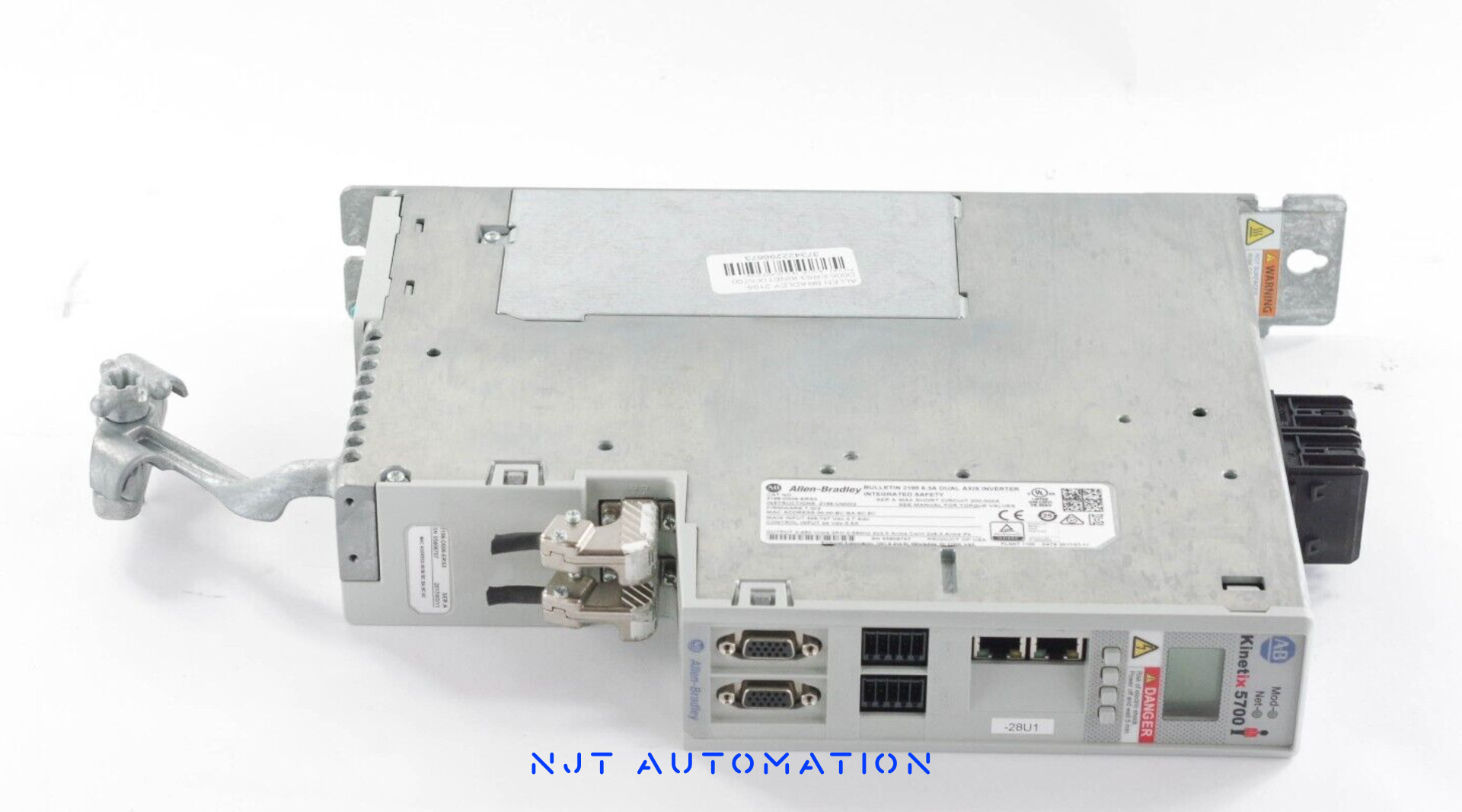

Actual NJT inventory photos
| Part Number | 2198-D006-ERS4 |
| Price | On Request Availability and condition determine final quote. |
| Description | Kinetix 5700 dual-axis servo drive, 1.7 kW, 650V DC. |
| Shipping | UPS Ground included | Next-Day Air and Worldwide Shipping available at checkout |
| Warranty | 1-year full-function warranty provided by NJT Automation. Warranty details
|
| Returns | 90-day free returns. View return policy |
| Exchange | Send us your defective 2198-D006-ERS4 after your purchase for a 10% core credit. We also purchase old or damaged parts outright. |
| Availability | Sourced on request We do not have a 2198-D006-ERS4 on the shelf right now. We can source one through our supplier network; request a quote and we confirm availability, price and lead time before you commit. | ||||||||
| Sourcing | Sourced through our Level 1 network of vetted US suppliers. Each unit is checked before it ships and carries the same NJT warranty and return policy as our own stock. Quotes within one hour during business hours; typical delivery 3–5 business days, next-day air available. Sourced parts are not available for local pickup. | ||||||||
| Repairs | 2198-D006-ERS4 Mail-In Repair Service | ||||||||
Part Number Decoder | Kinetix 5700 dual-axis servo drive 2198D006ERS4
Decoded from the Rockwell Automation catalog-number structure. Series and firmware revision are printed on the product label, not encoded here. | ||||||||
Intended Use | Intended for high-power multi-axis integrated motion applications. Kinetix 5700 modules build a shared-bus servo system for high-axis-count and high-power machines such as converting lines, printing presses, large packaging and material handling, with integrated safety and CIP Motion under a Logix controller. Safe Torque Off lets the drive sit in the machine's safety circuit without an external contactor. | ||||||||
Physical Data | Weight and DimensionsWeight9.17 lb (4.16 kg)H × W × D11.8 × 2.2 × 9.9 in. (300 × 55 × 252 mm)
Product weight and dimensions are typical manufacturer-published values and may differ by series or option. Shipping box and weight are estimates for freight planning; the packed unit may ship in a different box. | ||||||||
Similar Part Numbers |
| ||||||||
Allen Bradley Information | Technical SpecificationsLifecycle status
| ||||||||
| Category | Kinetix 5500 | ||||||||
| Part Number | 2198-D006-ERS4 | ||||||||
| Manufacturer | Allen-Bradley | ||||||||
Can the 2198-D006-ERS4 be repaired?
Yes. NJT Automation repairs the 2198-D006-ERS4 by mail-in: diagnostic evaluation, component-level repair and a functional test, backed by a 1-year full-function warranty.
NJT managed repair. No evaluation fee; no repair, no charge. Prepaid UPS label both ways, $650 minimum, rush available. 1-year full-function warranty included, 2- and 3-year options.
Compare quotes from independent repair technicians. Post your repair on RepairMode to receive competitive bids from experienced technicians. Each technician sets their own pricing and warranty.
Find a servo drive repair specialiston RepairMode.com ↗Common failures
Failure patterns we regularly see on Kinetix 5700 dual-axis servo drive hardware like the 2198-D006-ERS4:
- Shared DC-bus connector or bus bar damage between modules: module not detected, or overheating at the bus-bar joints
- 24V control power input stage failed: module dark while the rest of the system runs
- Inverter overcurrent or IPM fault: IGBT power module shorted after a motor or cable fault, gate driver board damaged with it
- Feedback faults on Hiperface DSL single-cable motors or the universal feedback (UFB) connector: feedback interface on the control board, or bent connector pins
- Bus undervoltage / bus overvoltage faults: aged DC bus electrolytic capacitors, or regen energy the shunt cannot absorb
Photos by NJT Automation; test videos from NJT or network repair technicians.
