Allen-Bradley 22A-D4P0N104 PowerFlex 4 Drive 2 Hp, 480V AC

Allen-Bradley 22A-D4P0N104 PowerFlex 4 AC drive, 480V AC 3-ph, 4 A / 2 Hp, Frame A, IP20 open, no EMC filter, with brake transistor. NJT Automation sources the 22A-D4P0N104 on request; send the part number for a replacement or repair quote.

Quote required. Request a quote below for pricing and delivery.

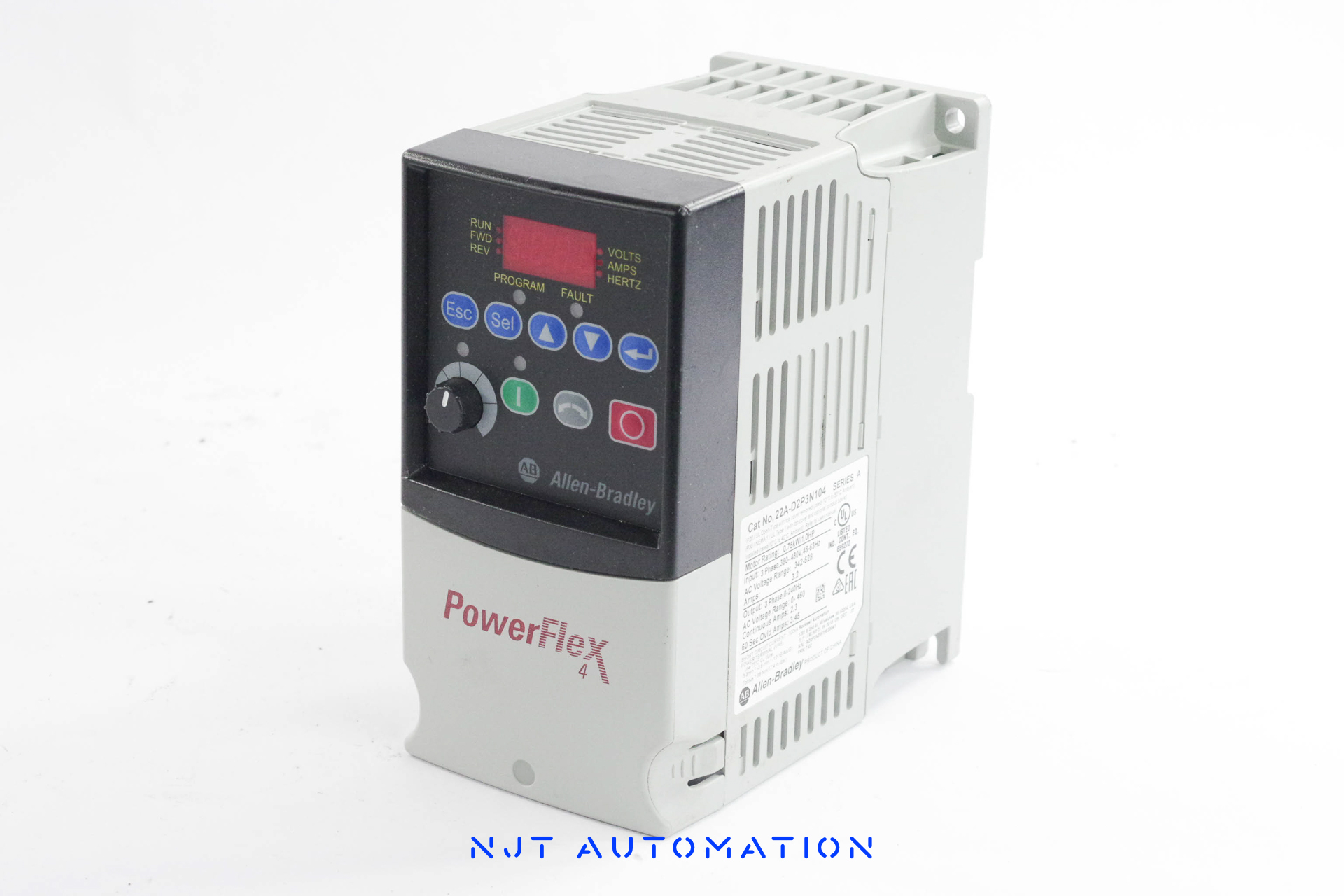

Allen-Bradley 22A-D4P0N104 PowerFlex 4 AC drive, 2 Hp, 480V AC – Series A (1 of 8)

Actual NJT inventory photos

Request Replacement Quote Request Repair Quote

Part Number	22A-D4P0N104
Price	On Request Previously sold for $199.99 USDAvailability and condition determine final quote.
Description	PowerFlex 4 AC drive, 2 Hp, 480V AC.
Shipping	UPS Ground included \| Next-Day Air and Worldwide Shipping available at checkout
Warranty	1-year full-function warranty provided by NJT Automation. Warranty details Included 1 year, full-function 2 years +15% of product price ($30.00) 3 years +25% of product price ($50.00) View full warranty policy
Returns	90-day free returns. View return policy
Exchange	Send us your defective 22A-D4P0N104 after your purchase for a 10% core credit. We also purchase old or damaged parts outright.

Availability

Sourced on request

We do not have a 22A-D4P0N104 on the shelf right now. We can source one through our supplier network; request a quote and we confirm availability, price and lead time before you commit.

Sourcing

Sourced through our Level 1 network of vetted US suppliers. Each unit is checked before it ships and carries the same NJT warranty and return policy as our own stock. Quotes within one hour during business hours; typical delivery 3–5 business days, next-day air available. Sourced parts are not available for local pickup.

Request Quote How Level 1 sourcing works

Part Number Decoder

PowerFlex 4 AC drive

22AD4P0N104

22A: BulletinPowerFlex 4: Allen-Bradley's smallest AC drive (0.2…3.7 kW / 0.25…5 Hp) with V/Hz control, integral keypad and RS-485; Frames A…B.
D: Voltage rating480V AC, three-phase input.
4P0: Output rating4 A output current, 2 Hp motor. Frame A drive.
N: EnclosurePanel mount, IP20, NEMA/UL Type Open (IP30 / Type 1 with the 22-JB conduit-box kit).
1: HIMIntegral fixed keypad with 4-digit LED display and speed potentiometer.
0: EMC filterNo internal EMC filter (external S / L-type filters available).
4: VersionStandard drive with internal dynamic-brake transistor (add an external resistor to use it).

Decoded from the Rockwell Automation catalog-number structure. Series and firmware revision are printed on the product label, not encoded here.

Series & Revisions

No series in stock today; request a series above.

Intended Use

Built for general-purpose small-motor variable-speed control applications. PowerFlex 4-class drives run conveyors, pumps, fans, mixers and small machines at low horsepower where a compact panel-mount drive with a built-in keypad is all the job needs.

Migration Path

Rockwell Automation has discontinued the PowerFlex 4. Published successor for the PowerFlex 4: PowerFlex 523 25A-D4P0N104 (same voltage, current and enclosure code).

The 520-Series catalog structure mirrors the PowerFlex 4-Class, so the 25A- number with the same voltage, current and enclosure code is the direct equivalent.
Rockwell's PowerFlex 4-Class to 520-Series migration literature includes a parameter cross-reference; the 523 keypad and programming flow are similar, and Connected Components Workbench replaces DriveExplorer.
Mounting footprints are close but not identical between frames; verify the cutout against 520-TD001.

A like-for-like replacement or a repair keeps the existing program, wiring and panel layout; a migration is a project. Both are listed on this page so the choice can be made on lead time and budget.

Physical Data

Weight and DimensionsWeight3.09 lb (1.40 kg)H × W × D6 × 3.1 × 5.4 in. (152 × 80 × 136 mm)

Weight	1.40 kg (3.09 lb) Typical unit weight
Dimensions (H × W × D)	152 × 80 × 136 mm (6 × 3.1 × 5.4 in.) Frame A
Shipping Weight	2.12 kg (4.67 lb) Estimated: unit weight plus box and packing material; bills as 5 lb
Shipping Box (L × W × H)	14 × 12 × 10 in. (356 × 305 × 254 mm) Smallest standard box fitting the product with 3 in. cushioning per side

Product weight and dimensions are typical manufacturer-published values and may differ by series or option. Shipping box and weight are estimates for freight planning; the packed unit may ship in a different box.

Similar Part Numbers

22A-D2P3N104 Output rating: 2.3 A output current, 1 Hp motor

Allen Bradley Information

Technical SpecificationsLifecycle status

Lifecycle	Active Verify current status with the manufacturer.

Previously sold 22A-D4P0N104

1 sold

NJT Automation has supplied and shipped one 22A-D4P0N104 PowerFlex 4 AC drive in 2026; request a quote and we will source another from our supplier network.

Sold: 1 in 2026
Series: A × 1

Sold

Allen Bradley 22A-D4P0N104 /A PowerFlex Variable Frequency Drive 3Ph 480V 2HP

$199.99 USD

Used

Request Quote

Still have questions?

Find answers to shipping, warranties, repairs, and more.

Frequently Asked Questions

What is the 22A-D4P0N104?

The Allen-Bradley 22A-D4P0N104 is a PowerFlex 4 AC drive, 480V AC 3-ph, 4 A / 2 Hp, Frame A, IP20 open, no EMC filter, with brake transistor.

What condition is it in?

The 22A-D4P0N104 may be available on request in Unused surplus / Refurbished / Used condition. We can quote this part in unused surplus, refurbished, or used condition depending on availability and your preference. Specify your requirement in the RFQ.

When does this part ship?

The 22A-D4P0N104 is sourced on request. Request a quote and we'll confirm availability and lead time, typically a few business days.

What power input does it require?

480V AC, three-phase input.

What is its power rating?

4 A output current, 2 Hp motor.
