Allen-Bradley 2711-K9C8 PanelView 9-in. Keypad, 264V AC

Allen-Bradley 2711-K9C8 PanelView 900 Color keypad terminal with Data Highway Plus (DH+) communication and RS-232 printer port, AC powered (discontinued model line). NJT Automation sources the 2711-K9C8 on request; send the part number for a replacement or repair quote.

Quote required. Request a quote below for pricing and delivery.

Allen-Bradley 2711-K9C8 PanelView 900 Color keypad terminal, 9-in. Keypad, 264V AC

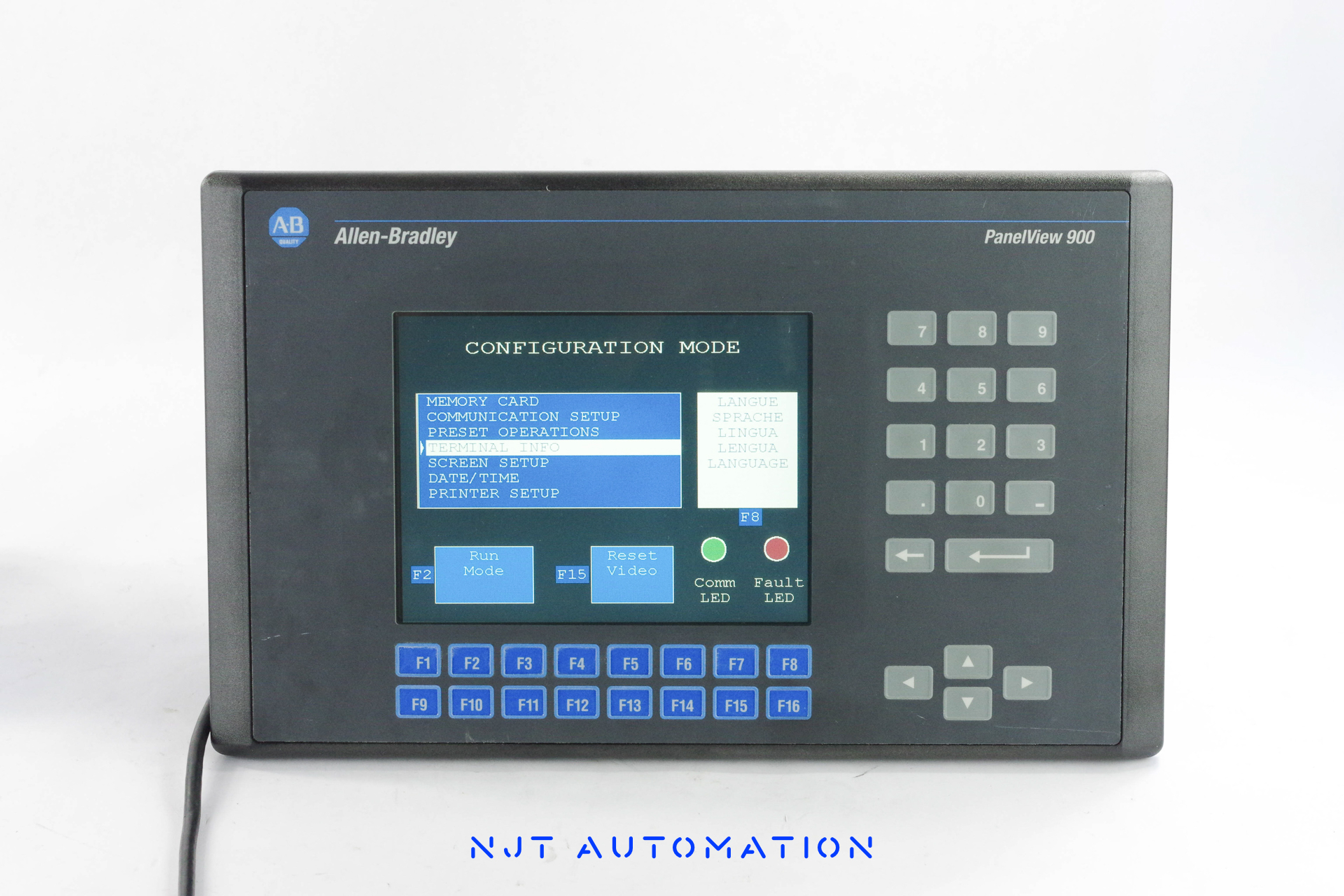

Actual NJT inventory photos

Request Replacement Quote Request Repair Quote

Part Number	2711-K9C8
Price	On Request Availability and condition determine final quote.
Description	PanelView 900 Color keypad terminal, 9-in. Keypad, 264V AC.
Shipping	UPS Ground included \| Next-Day Air and Worldwide Shipping available at checkout
Warranty	1-year full-function warranty provided by NJT Automation. Warranty details Included 1 year, full-function 2 years +15% of product price 3 years +25% of product price View full warranty policy
Returns	90-day free returns. View return policy
Exchange	Send us your defective 2711-K9C8 after your purchase for a 10% core credit. We also purchase old or damaged parts outright.

Availability

Sourced on request

We do not have a 2711-K9C8 on the shelf right now. We can source one through our supplier network; request a quote and we confirm availability, price and lead time before you commit.

Sourcing

Sourced through our Level 1 network of vetted US suppliers. Each unit is checked before it ships and carries the same NJT warranty and return policy as our own stock. Quotes within one hour during business hours; typical delivery 3–5 business days, next-day air available. Sourced parts are not available for local pickup.

Request Quote How Level 1 sourcing works

Repairs

2711-K9C8 Mail-In Repair Service

Part Number Decoder

PanelView 900 Color keypad terminal

2711K9C8

2711: BulletinPanelView Standard: Allen-Bradley's legacy operator terminal family (PanelView 300, 550, 600, 900, 1000 and 1400), programmed with PanelBuilder32.
K: Operator inputKeypad: function keys and numeric keypad, no touch screen.
9: Model / sizePanelView 900: 9-in. display.
C: Display typeColor display.
8: CommunicationData Highway Plus (DH+) communication port, plus an RS-232 port for printing and application upload/download.
none: PowerNo L-suffix: 85…264V AC power input.
✓: Catalog listingListed in the PanelView Standard selection guide under PanelView 900 Color terminals as 2711-K9C8. Rockwell lists this model line as no longer available for purchase. Repair or refurbished replacement is the supported path.

Decoded from the Rockwell Automation catalog-number structure. Series and firmware revision are printed on the product label, not encoded here.

Series & Revisions

The catalog suffix, not the series, sets input type, communication port and power; series tracked firmware revisions.

Series notes: Same cutout and connector across series. A later series runs the existing PanelBuilder32 application; an earlier one may need it re-saved for its firmware.

Intended Use

Built for legacy machine operator interface (HMI) applications. PanelView Standard terminals are the operator screens on the installed base of SLC 500, PLC-5 and MicroLogix machines, communicating over DH-485, DH+, Remote I/O, DeviceNet, ControlNet or RS-232 and running PanelBuilder32 applications.

Migration Path

Rockwell Automation has discontinued PanelView Standard terminals. Published successor for the PanelView Standard: PanelView Plus 7 Standard 2711P-T9W21D8S (9-in. wide) or 2711P-T10C21D8S (10.4-in.).

FactoryTalk View ME imports the PanelBuilder32 application (.pba) directly; screens, tags and alarms come across and the tag addresses are re-pointed at the controller.
PanelView Plus 7 communicates over EtherNet/IP. Terminals on DH-485, DH+ or Remote I/O need a 1756-DHRIO / 1761-NET-ENI style bridge or a controller that is already on Ethernet.
Cutouts differ. Rockwell's 2711P-RAK adapter plate kits cover several PanelView Standard openings; otherwise plan a new cutout. Plus 7 Standard is 24V DC, so AC-powered PanelViews add a 24V DC supply.

A like-for-like replacement or a repair keeps the existing program, wiring and panel layout; a migration is a project. Both are listed on this page so the choice can be made on lead time and budget.

Physical Data

Weight and DimensionsWeight7.01 lb (3.18 kg)H × W × D9.8 × 16 × 4.4 in. (249 × 406 × 112 mm)

Weight	3.18 kg (7.01 lb) Typical unit weight
Dimensions (H × W × D)	249 × 406 × 112 mm (9.8 × 16 × 4.4 in.) PanelView 900 keypad terminal
Shipping Weight	5.60 kg (12.3 lb) Estimated: unit weight plus box and packing material; bills as 13 lb
Shipping Box (L × W × H)	24 × 20 × 14 in. (610 × 508 × 356 mm) Smallest standard box fitting the product with 4 in. cushioning per side

Product weight and dimensions are typical manufacturer-published values and may differ by series or option. Shipping box and weight are estimates for freight planning; the packed unit may ship in a different box.

Similar Part Numbers

2711-K9A8 Display type: Monochrome LCD
2711-K9C15 Communication: ControlNet communication port
2711-K9C3 Communication: DH-485 communication port
2711-B6C8 Operator input: Keypad and touch screen combined; Model / size: PanelView 600
2711-T10C8 Operator input: Touch screen; Model / size: PanelView 1000

Can the 2711-K9C8 be repaired?

Yes. NJT Automation repairs the 2711-K9C8 by mail-in: diagnostic evaluation, component-level repair and a functional test, backed by a 1-year full-function warranty.

NJT managed repair. No evaluation fee; no repair, no charge. Prepaid UPS label both ways, $650 minimum, rush available. 1-year full-function warranty included, 2- and 3-year options.

Get a repair quoteor text photos and symptoms to (414) 331-5954

Compare quotes from independent repair technicians. Post your repair on RepairMode to receive competitive bids from experienced technicians. Each technician sets their own pricing and warranty.

Find an HMI repair specialiston RepairMode.com ↗

Common failures

Failure patterns we regularly see on PanelView 900 Color keypad terminal hardware like the 2711-K9C8:

Keypad overlay cracked, peeling or with legends worn off the high-use keys
Application lost or terminal restarts in configuration mode after a power event: flash memory fault
Vertical lines or missing rows on the LCD: panel or flex-cable failure
Membrane keypad wear: function keys or numeric keys not responding, or a stuck key at power-up
Communication port failure: DH+, DH-485, RIO, DeviceNet, ControlNet or RS-232 line driver damaged by a surge or ground loop

Photos by NJT Automation; test videos from NJT or network repair technicians.

Still have questions?

Find answers to shipping, warranties, repairs, and more.

Frequently Asked Questions

What is the 2711-K9C8?

The Allen-Bradley 2711-K9C8 is a PanelView 900 Color keypad terminal with Data Highway Plus (DH+) communication and RS-232 printer port, AC powered (discontinued model line).

What condition is it in?

The 2711-K9C8 may be available on request in Unused surplus / Refurbished / Used condition. We can quote this part in unused surplus, refurbished, or used condition depending on availability and your preference. Specify your requirement in the RFQ.

When does this part ship?

The 2711-K9C8 is sourced on request. Request a quote and we'll confirm availability and lead time, typically a few business days.

What power input does it require?

No L-suffix: 85…264V AC power input.

Is it a touch screen or keypad terminal?

Keypad: function keys and numeric keypad, no touch screen.
