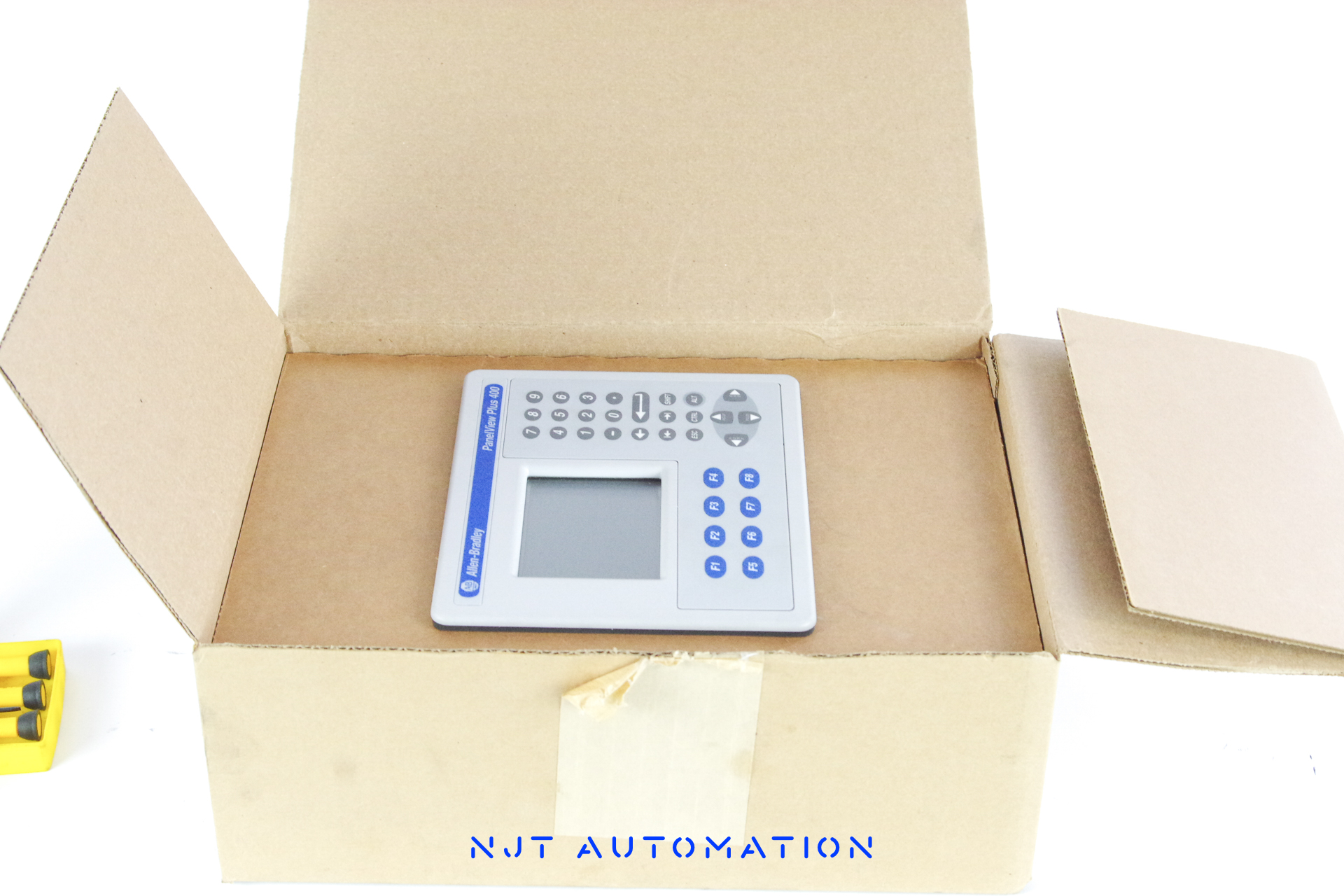

Allen-Bradley 2711P-K4M20D8 PanelView Plus 6 3.5-in. Keypad, 24V DC

In stock: 1 unit in Milwaukee, WI.

PanelView Plus 6 3.5-in. monochrome / grayscale keypad terminal · Ethernet + RS-232 · 24V DC powered

Price

$1,649.99USDUsed, Series AView listing

Request Repair QuoteEstimated $1,295.00
Part Number2711P-K4M20D8
DescriptionPanelView Plus 6 keypad terminal, 3.5-in. Keypad, 24V DC. In stock in used condition, Series A.
Shipping
Ships same or next business day
UPS Ground
Included. Next-Day Air and worldwide shipping available.
Courier
Within 350 miles, est. $3.50/mile, subject to availability.
Pickup
Free local pickup at 2122 N Prospect Ave. Call ahead at (414) 331-5954.
Warranty
1-year full-function warranty provided by NJT Automation.
Warranty details
Included
1 year, full-function
2 years
+15% of product price ($247.50)
3 years
+25% of product price ($412.50)
View full warranty policy
Returns
90-day free returns. View return policy
Exchange

Send in your defective 2711P-K4M20D8 for a 10% core credit.

Variants
Part NumberConditionSeriesQtyPrice
2711P-K4M20D8 /A$1,649.99
Used · Series A · 1 in stock
2711P-K4M20D8 /AUsedSeries A1$1,649.99 USD

2711P-K4M20D8

Refurbished — pick series, then request a quote

Request Quote
2711P-K4M20D8Refurbished—Request Quote
Availability
1 Unit in StockIndependently SourcedNot an OEM-Authorized Distributor
Repairs

2711P-K4M20D8 Mail-In Repair Service

Estimated: $1,295.00

Part Number Decoder

PanelView Plus 6 keypad terminal
2711PK4M20D8
2711P
BulletinPanelView Plus: Allen-Bradley's FactoryTalk View Machine Edition HMI terminal family (PanelView Plus, Plus CE, Plus 6 and Plus 7).
K
Operator inputKeypad: function keys and numeric keypad, no touch screen.
4
Model / size400 model: 3.5-in. display.
M
Display typeMonochrome / grayscale display (400 and 600 models only).
20
CommunicationEthernet (10/100 Mbps) and RS-232 serial, one USB host and one USB device port; add-on modules not supported.
D
Power24V DC power input (18…30V DC).
8
Operating system / featuresWindows CE 6.0 with standard features (FTP, VNC, ActiveX), without the extended features or Microsoft Office file viewers.
Decoded from the Rockwell Automation catalog-number structure. Series and firmware revision are printed on the product label, not encoded here.

Series & Revisions

Series A in stock; other series on request.

Series notes: Same cutout and connections across series; confirm the replacement's firmware supports the project's FactoryTalk View ME version.

Intended Use

Intended for machine operator interface (HMI) applications. PanelView Plus terminals with a 3.5-in. display are the operator screens on packaging, food and beverage, pharmaceutical, automotive and water equipment, running FactoryTalk View ME applications against Logix, SLC and PLC-5 controllers. Keypad models suit gloved operators and washdown areas where a touchscreen is impractical.

Physical Data

Weight and DimensionsWeight1.04 lb (0.47 kg)H × W × D6 × 7.3 × 2.4 in. (152 × 185 × 60 mm)
Weight0.47 kg (1.04 lb)
Typical unit weight
Dimensions (H × W × D)152 × 185 × 60 mm (6 × 7.3 × 2.4 in.)
400 keypad / keypad + touch terminal, DC
Shipping Weight1.19 kg (2.63 lb)
Estimated: unit weight plus box and packing material; bills as 3 lb
Shipping Box (L × W × H)14 × 12 × 10 in. (356 × 305 × 254 mm)
Smallest standard box fitting the product with 3 in. cushioning per side
Product weight and dimensions are typical manufacturer-published values and may differ by series or option. Shipping box and weight are estimates for freight planning; the packed unit may ship in a different box.

Similar Part Numbers

  • 2711P-K4C20D8 Display type: Color display
  • 2711P-B6M20D8 Operator input: Keypad and touch screen combined; Model / size: 600 model
  • 2711P-K6C20D8 Model / size: 600 model; Display type: Color display
  • 2711P-K4C5D8 Display type: Color display; Communication: RS-232 serial, one USB host and one USB

Allen-Bradley Information

Technical SpecificationsLifecycle status
LifecycleDiscontinued
Verify current status with the manufacturer.
CategoryPanelView Plus
UPC / GTIN884951344785
Part Number2711P-K4M20D8
ManufacturerAllen-Bradley

2711P-K4M20D8 Sales History

1 sold

NJT Automation has supplied and shipped one 2711P-K4M20D8 PanelView Plus 6 keypad terminal in 2025; these listings are sold and the in-stock options above are ready to ship.

Sold
1 in 2025
Series
A × 1
Allen-Bradley 2711P-K4M20D8 Unused surplus (open box) - previously sold by NJT AutomationSold

Allen-Bradley 2711P-K4M20D8 PanelView Plus 400 3.8" Terminal - Installed

$1,399.99 USD

Unused surplus (open box)

Request Quote

Can the 2711P-K4M20D8 be repaired?

Yes. NJT Automation repairs the 2711P-K4M20D8 by mail-in: diagnostic evaluation, component-level repair and a functional test.

Option 1

NJT Managed Repair

Evaluation
Free evaluation.
Shipping
Free UPS shipping both ways, including unrepairable returns. Local drop-off and pickup available.
Pricing
$650 minimum for successful repairs.
Warranty
1-year full-function warranty included. 2- and 3-year options available.
Get a repair quoteOr text photos and symptoms to (414) 331-5954

Option 2

Independent repair bids. Compare quotes from independent repair technicians. Post your repair on RepairMode to receive competitive bids from experienced technicians. Each technician sets their own pricing and warranty.

View completed 2711P-K4M20D8 repairson RepairMode.com ↗

Common Failures

Failure patterns we regularly see on PanelView Plus 6 keypad terminal hardware like the 2711P-K4M20D8:

  • Lines, dead pixels or low contrast on the LCD
  • Hangs on the splash screen: control board flash or firmware corruption
  • Backlight dim or dark with the terminal still running: aged CCFL or a failed inverter board
  • Membrane keypad wear: function keys or numeric keys not responding, or a stuck-key fault at power-up
  • Cracked bezel or compressed gasket allowing washdown ingress

Fault code reference

2711P-K4M20D8 Fault Codes

19 codes · 2711P-UM006

Fault codes a PanelView Plus 6 keypad terminal reports on the start-up splash screen (shown as Fatal followed by a two-character code, for example Fatal 3A) and the Fault (red) and Comm (green) indicators, as documented in Rockwell Automation publication 2711P-UM006. Use them to narrow a problem down to the unit, its wiring or the application before sending it in for repair.

Fatal start-up codes

2711P-K4M20D8 Fatal start-up codes
CodeFailureWhat it indicates
Fatal 02Watch dog resetA momentary loss of control due to a software failure. The terminal halts at the maintenance window; monitor for recurrence.
Fatal 03Failed RAMPOST failure in the terminal's RAM; a hardware fault in the logic module (700…1500) or the terminal's logic board (400/600).
Fatal 0FFirmware update failureFatal during firmware loading. Reset from the maintenance menu, restore factory defaults or reinstall firmware.
Fatal 1EFirmware validation (CRC/format) failureFatal during firmware loading (1E also appears as a normal 'Update' progress code). Reset, restore defaults or reinstall firmware.
Fatal 1FFirmware compatibility index failureFirmware failed to validate the compatibility index of a firmware region; reinstall the correct firmware.
Fatal 31Stuck keyPOST found a function key held or stuck. Make sure nothing presses on the keypad and reset the terminal without touching any key; if it persists, the fault is in the keypad / display module.
Fatal 3AStuck touchPOST found a touch cell held or stuck. Make sure nothing is pressing on the screen (including a damaged anti-glare overlay), then reset without touching it; if it persists, the fault is in the touch screen / display module.
Fatal 3BFailed backlightPOST could not start the backlight; a hardware fault in the display module. If 3A or 3B appears right after an LED-backlit (newer series) display module was fitted to an older logic module, check the logic module firmware first (2711P-IN030 requires 7.00.20 or later for LED displays on Plus 6).
Fatal A5Firmware write to storage failureFatal during firmware loading (A5 also appears as a normal 'Update/Restore' progress code). Reset, restore defaults or reinstall firmware.
Fatal D2Firmware stored image verification failureFatal during firmware loading; reset, restore defaults or reinstall firmware.
Show 6 more codes
Fatal FFInvalid or missing OS firmware imageNo valid operating system image (FF also appears as a normal 'AutoTest' progress code). Reinstall firmware.
Fatal R0Failed to initialize restore operationFatal during a restore; reset the terminal from the maintenance menu.
Fatal R1Invalid header in .pvb fileFatal during a restore; the backup file header is invalid.
Fatal R2Invalid headerFatal during a restore.
Fatal R3Cannot write intermediate filesFatal during a restore; the terminal could not write intermediate files.
Fatal R4Corrupt .pvb fileFatal during a restore; the backup file is corrupt.

The splash screen shows the state word and the code together, for example "Fatal 3A". Codes shown with the state AutoTest, Boot, Init, Update or Restore (E6, FF, G0, H1–JA, K1–MA, 1E, A5, DC) are normal progress messages; only codes shown with the state Fatal are errors. Rockwell Knowledgebase 459615 reproduces this list.

Status indicator states if the terminal stops during start-up

2711P-K4M20D8 Status indicator states if the terminal stops during start-up
IndicatorsStateWhat it indicates
Fault blinking · Comm offRecoverable firmware errorLast firmware download failed. Reload the firmware with the Firmware Upgrade Wizard.
Fault on · Comm offNon-recoverable logic module faultHardware fault in the logic module (700…1500) or the terminal's logic board (400/600); not recoverable by a reset or firmware reload.
Fault on · Comm blinkingNon-recoverable display module faultHardware fault in the display module (700…1500) or the terminal's display section (400/600); not recoverable by a reset or firmware reload.

Where the manual's only remedy for a code is to replace the unit or module, the code is pointing at a hardware fault inside that part. Those are the faults NJT Automation repairs at component level, so a repair quote is usually the first thing to check before buying a replacement.

Source: Rockwell Automation publication 2711P-UM006, PanelView Plus 6 Terminals User Manual. Codes are listed as documented; fault behaviour can vary by firmware revision, so confirm against the manual for your unit's series.
