Allen-Bradley 2711P-T15C15D1 PanelView Plus 15-in. Touch, 24V DC

Allen-Bradley 2711P-T15C15D1 PanelView Plus 15-in. color touch terminal, ControlNet + Ethernet + RS-232, 24V DC powered. NJT Automation sources the 2711P-T15C15D1 on request; send the part number for a replacement or repair quote.

Quote required. Request a quote below for pricing and delivery.

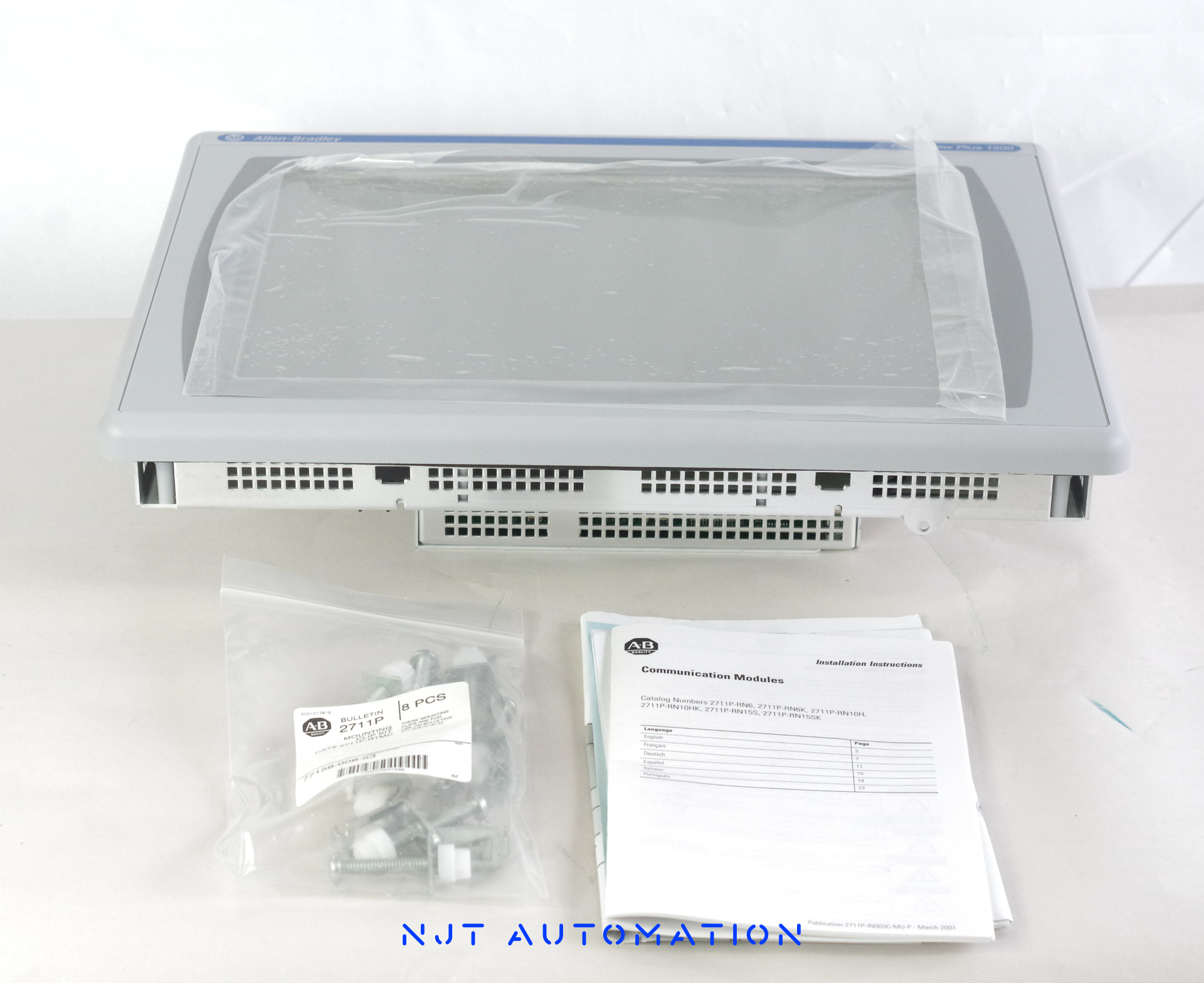

Allen-Bradley 2711P-T15C15D1 PanelView Plus touch terminal, 15-in. Touch, 24V DC – front view

Request Replacement Quote Request Repair Quote

Part Number	2711P-T15C15D1
Price	On Request Availability and condition determine final quote.
Description	PanelView Plus touch terminal, 15-in. Touch, 24V DC.
Shipping	UPS Ground included \| Next-Day Air and Worldwide Shipping available at checkout
Warranty	1-year full-function warranty provided by NJT Automation. Warranty details Included 1 year, full-function 2 years +15% of product price 3 years +25% of product price View full warranty policy
Returns	90-day free returns. View return policy
Exchange	Send us your defective 2711P-T15C15D1 after your purchase for a 10% core credit. We also purchase old or damaged parts outright.

Availability

Available Level 1

This part is available through our Level 1 supplier network. Request a quote to confirm quantity, price, and next-day shipping options.

Inventory Level 1 RFQ

Level 1 parts come from vetted US suppliers we have worked with for years. Each unit is checked before it ships, so counterfeits, repackaged items sold as new, and worn-out equipment do not reach you. Every part carries the same NJT warranty and return policy as our own stock.

Request Quote Learn more about Inventory Levels

Repairs

2711P-T15C15D1 Mail-In Repair Service

How the Process Works:

Submit Your RFQ: Complete the request-for-quote (RFQ) form with your exact requirements.
Receive a Quote: We respond ASAP - within 1 hour during business hours.
Approve and Pay: Agree to the quoted price, and we will issue an invoice payable via credit card or your preferred method.
Direct Shipping: Our normal shipping time is 3-5 business days, during which we thoroughly inspect and certify items to meet our high standards. If you request next-day air delivery, the item will be sent directly to you and arrive the following business day. Please note: These items are NOT available for local pickup at NJT Automation's location.

What We Offer

We source genuine parts from trusted U.S. channels and stand behind what we sell.

Our network has millions of parts ready to be delivered now.
Complete Transparency: Clear information on item availability.
Well-vetted components from trusted suppliers sourced from the USA.
Technical Support: Assistance, troubleshooting and hardware repairs.
Minimal Markup: The best sourcing service at a minimal cost.
Quick Delivery: Fast access to the parts you need to get your machines back up and running.
Dropship available • No branding on packaging

Part Number Decoder

PanelView Plus touch terminal

2711PT15C15D1

PanelView Plus 15-in. color touch terminal, ControlNet + Ethernet + RS-232, 24V DC powered.

2711P: BulletinPanelView Plus: Allen-Bradley's FactoryTalk View Machine Edition HMI terminal family (PanelView Plus, Plus CE, Plus 6 and Plus 7).
T: Operator inputTouch screen: analog resistive touch, no keypad.
15: Model / size1500 model: 15-in. display.
C: Display typeColor display (active-matrix TFT on 700…1500; color STN/TFT on 400/600).
15: CommunicationControlNet module (2711P-RN15S) factory-fitted, plus Ethernet, RS-232 and two USB ports.
D: Power24V DC power input (18…30V DC).
1: Logic modulePanelView Plus logic module with 64 MB flash / 64 MB RAM (2711P-RP1 class): runs FactoryTalk View ME only.

Decoded from the Rockwell Automation catalog-number structure. Series and firmware revision are printed on the product label, not encoded here.

Physical Data

Weight and DimensionsWeight9.26 lb (4.20 kg)H × W × D13 × 16.4 × 2.6 in. (330 × 416 × 65 mm)

Weight	4.20 kg (9.26 lb) Typical unit weight
Dimensions (H × W × D)	330 × 416 × 65 mm (13 × 16.4 × 2.6 in.) 1500 touch terminal
Shipping Weight	7.23 kg (15.9 lb) Estimated: unit weight plus box and packing material; bills as 16 lb
Shipping Box (L × W × H)	28 × 22 × 14 in. (711 × 559 × 356 mm) Smallest standard box fitting the product with 4 in. cushioning per side

Product weight and dimensions are typical manufacturer-published values and may differ by series or option. Shipping box and weight are estimates for freight planning; the packed unit may ship in a different box.

Datasheet

Datasheet available for download

Generated from product specifications; not an official Allen-Bradley datasheet. For an official datasheet, contact Allen-Bradley or an authorized distributor.

Similar Part Numbers

2711P-B15C6D1 Operator input: Keypad and touch screen combined; Communication: DH+ / DH-485 / Remote I/O module
2711P-K15C4D1 Operator input: Keypad; Communication: Ethernet, RS-232 and two USB ports
2711P-T10C4D1 Model / size: 1000 model; Communication: Ethernet, RS-232 and two USB ports
2711P-T15C4D2 Communication: Ethernet, RS-232 and two USB ports; Logic module: PanelView Plus logic module with 128 MB
2711P-T15C4D6 Communication: Ethernet, RS-232 and two USB ports; Logic module: PanelView Plus CE logic module with 128

Alternate Part Numbers

2711PT15C15D1

Can the 2711P-T15C15D1 be repaired?

Yes. NJT Automation offers mail-in repair for the 2711P-T15C15D1, including diagnostic evaluation, component-level repair, and functional testing.

NJT Managed Repair

One vendor. One warranty. NJT manages the entire process.

1-year full-function NJT warranty, with 2- and 3-year options available
Rush service available for production-critical repairs
No evaluation or diagnostic charges
No repair, no charge
"Unrepairable" is not an option
Pre-paid UPS shipping label provided for sending your unit in
$650 minimum repair charge, shipping included both ways

Get an NJT Repair Quote

Looking for another option? For lower-cost repairs or if you prefer to work directly with an independent repair specialist, compare bids through RepairMode. RepairMode providers operate independently and set their own pricing and warranty terms.

Find an HMI repair specialiston RepairMode.com ↗

Common 2711P-T15C15D1 failures

Failure patterns we regularly see on PanelView Plus touch terminal hardware like the 2711P-T15C15D1:

Ethernet port on the logic module dead or dropping the PLC connection
Power supply section failure (24V DC or AC module): no power LED
Touchscreen unresponsive, drifting or registering ghost touches (worn analog-resistive overlay)
Backlight failure: dim, pink or dark display with the terminal still running (CCFL inverter on older display modules)
Terminal will not boot or hangs on the splash screen (logic module firmware / memory)

Repair or replace?

ReplaceReplacement PanelView Plus touch terminal units are usually surplus or refurbished. Replace the 2711P-T15C15D1 if the logic board is dead and you have the application (.mer or PanelBuilder file) to load. Check that the firmware level matches your runtime. Order the exact 2711P-T15C15D1. The catalog number sets the 15-in. touch display and 24V DC rating, and a different suffix changes one of them. A replacement 2711P-T15C15D1 is sourced on request, so compare its lead time with a repair before deciding.

RepairRepair is usually the better value for the 2711P-T15C15D1: touch glass, backlights, overlays and power inputs are the parts that fail, and repairing them keeps a terminal running when the application cannot easily be migrated to a different terminal. The two 2711P-T15C15D1 symptoms we see most often are “Backlight failure” and “Terminal will not boot or hangs on the splash screen”. If a replacement is already installed, repairing the failed 2711P-T15C15D1 gives you a tested spare on the shelf, which is worth more on an older platform where a matching unit can take time to source. Each 2711P-T15C15D1 we repair goes back function-tested with a 1-year warranty.

Request a Repair Quote

Text photos of the faulty unit and the symptoms to (414) 331-5954.

Start Your Repair Today

All product photos were taken by NJT Automation. Test videos originated from either NJT Automation internally or from repair technicians within our network.

Still have questions?

Find answers to shipping, warranties, repairs, and more.

Frequently Asked Questions

What is the 2711P-T15C15D1?

The Allen-Bradley 2711P-T15C15D1 is a PanelView Plus 15-in. color touch terminal, ControlNet + Ethernet + RS-232, 24V DC powered.

What condition is the 2711P-T15C15D1 in?

The 2711P-T15C15D1 is available in Unused surplus / Refurbished / Used condition. We can quote this part in unused surplus, refurbished, or used condition depending on availability and your preference. Specify your requirement in the RFQ.

When does this part ship?

This 2711P-T15C15D1 is sourced on request, so sourcing and quote timelines apply. Request a quote and we'll confirm availability and lead time. Many parts can be sourced within a few business days through our Level 1 supplier network.

Can you ship this next-day air?

Yes. UPS Next Day Air is available at checkout for the 2711P-T15C15D1 PanelView Plus touch terminal. Place your order before 5:00 PM Central on a business day and your in-stock item ships the same day for next-business-day delivery.

Can I pick this item up locally?

Yes. Once your 2711P-T15C15D1 has been sourced and is ready, free local pickup is available at NJT Automation, 2122 N Prospect Ave, Milwaukee, WI, during business hours.

What power input does the 2711P-T15C15D1 require?

24V DC power input (18…30V DC).

Is the 2711P-T15C15D1 a touch screen or keypad terminal?

Touch screen: analog resistive touch, no keypad.
